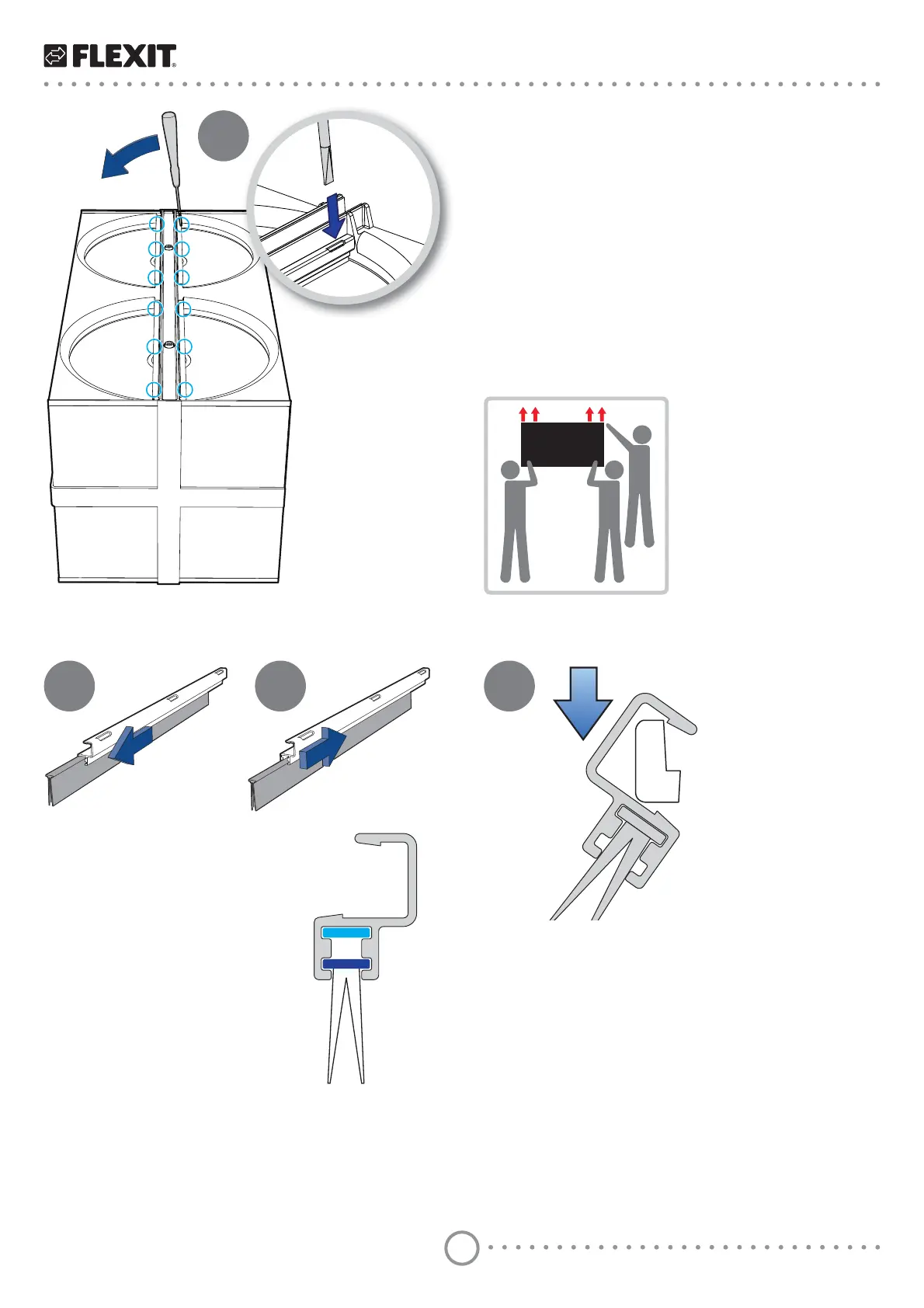

6. Pull the rotor module out and position it with the
brush strip facing up.
7. )OLSR΍WKHEUXVKVWULSSURȴOHVZLWKDVFUHZGULYHUIRU
example. There are total of eight brush strips on the
rotor, four on each side.
Use a broad screwdriver so you can get good pur-
FKDVHZLWKRXWEHQGLQJWKHSURȴOH6WDUWDWRQHHQG
and continue to the other. Lift it carefully, bit by bit.
8. Pull the brush strips out of the groove.
Move the brush strips down to level 2, or replace
them with new ones if they are completely worn out.
9. 3UHVVWKHEUXVKVWULSSURȴOHEDFNLQWRSODFH
Push the rotor back into the unit. The rotor is heavy, so it
is advisable to have several people to put it back.
