4.3. CHANGING THE BRUSH STRIPS
The brush strips become worn over time. If they do
not lie tightly against the rotary exchanger, it may be
necessary to change them.
Alternatively, they may be moved closer to the rotor,
DVbWKHSURȴOHWKH\DUHPRXQWHGLQKDVWZRJURRYHV
!
DANGER! The rotor will fall out
when the brackets are loosened.
The rotor is heavy, so it is advisable to have several
people to remove it from the unit and put it back again.
TIP: You need a T20

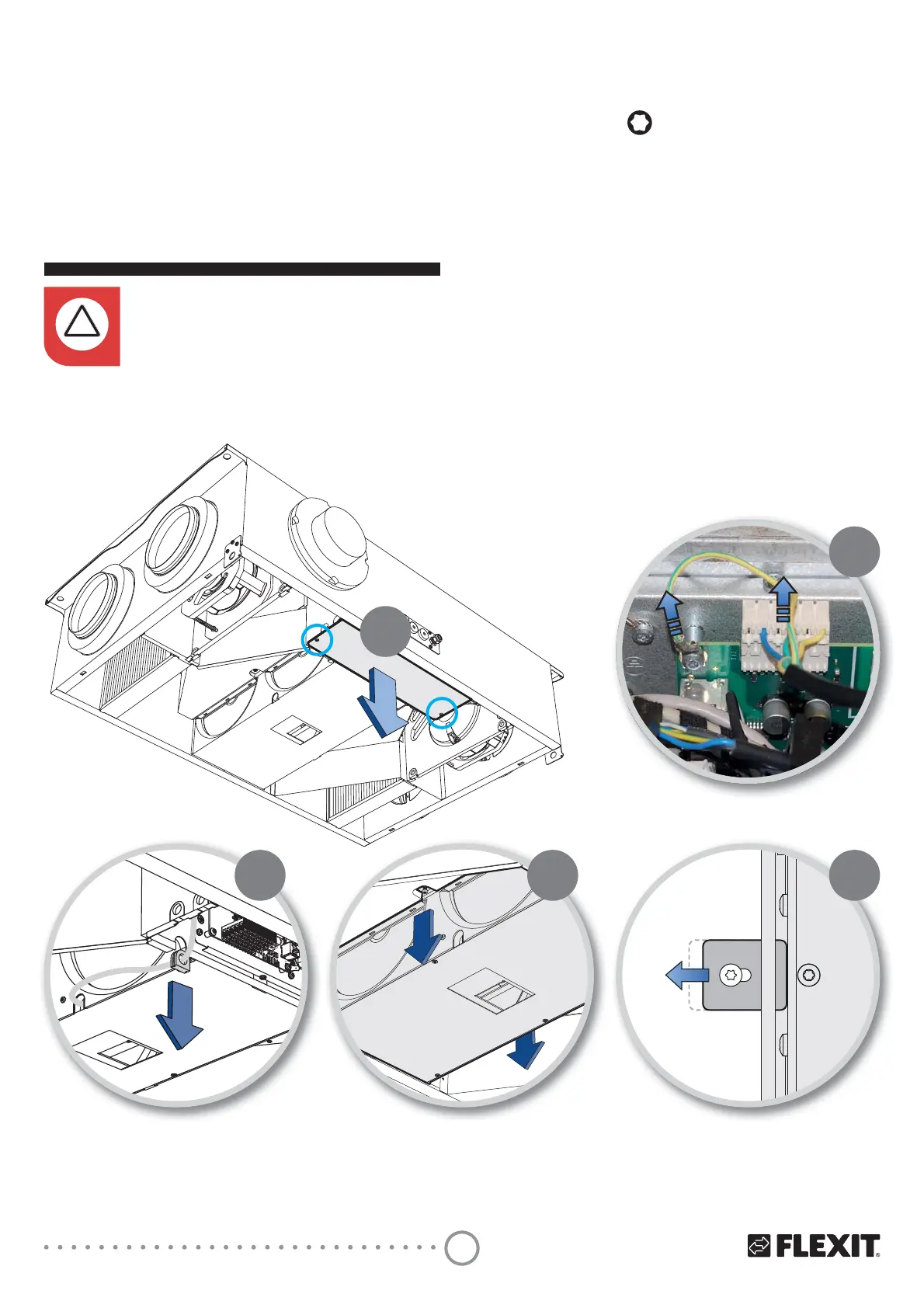

Proceed as follows:
1. 8QGRWKHVFUHZVLQWKHHOHFWULFFRYHUDQGWDNHLWR΍
2. 'LVFRQQHFWWKHURWRUȇVTXLFNUHOHDVHFRQWDFWIURP
the circuit board. Also pull the cable lug out to dis-
connect the earth on the circuit board.
3. Pull the cable bushing out of the groove so that the
cable with the quick-release contact comes too.
4. Loosen the two screws on either side of the rotor.
5. Slide the washers sideways to release the rotor.
