Flexit S3 R - S4 R;S7 R

15
8.3 S4 R/S7 R

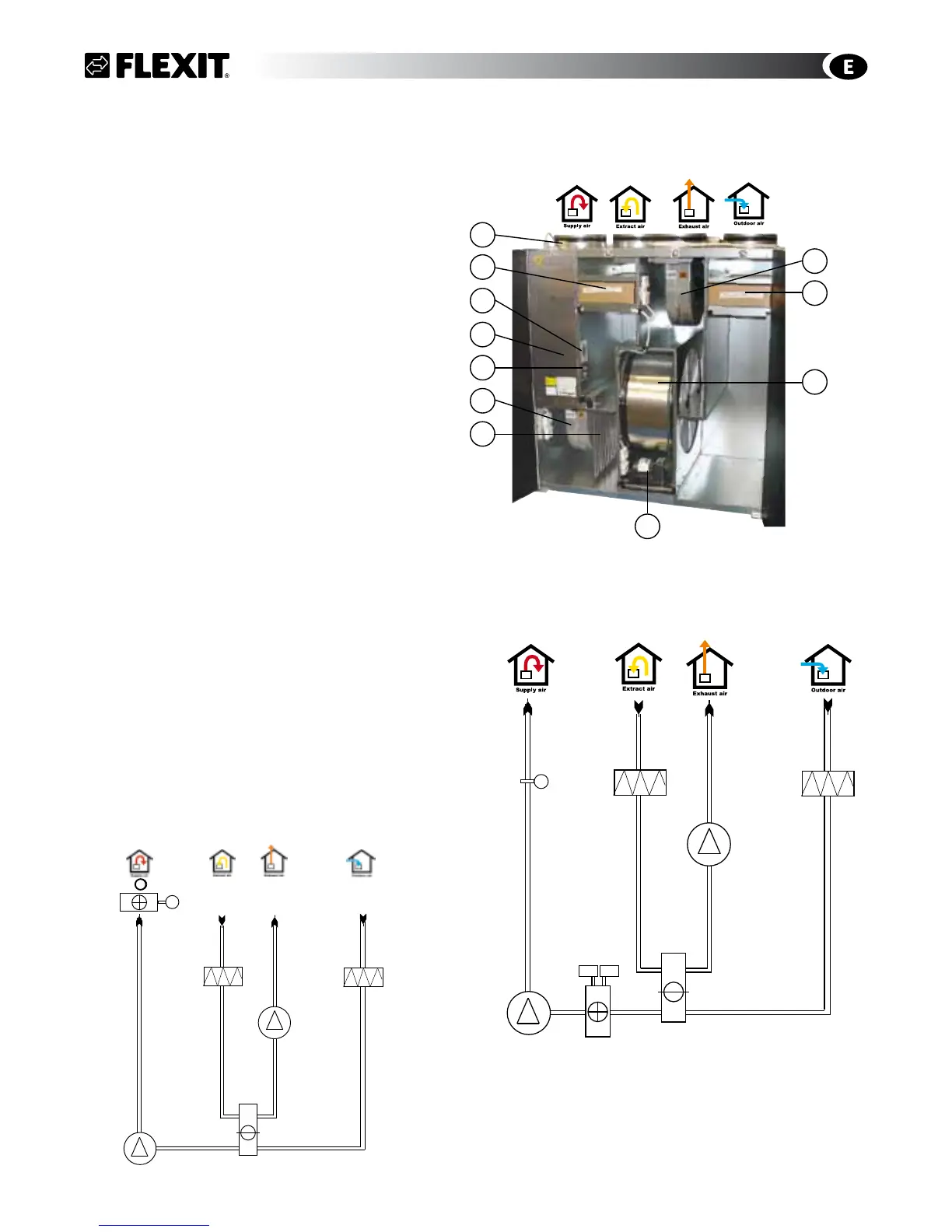

General Picture - Rotor Heat Exchanger
1 (FI2) Extract air filter F 7
2 (FI1) Supply air filter F 7
3 (EB1) Heating battery, electrical
4 (F10-20) Overheating thermostat (manual reset)
5 (M1) Supply air fan
6 (M2) Extract air fan
7 (HR-R) Rotor heat exchanger
8 (M4) Rotor motor
9 Control box
10 Adjustment switch (AC)
11 Connection control panel
System Drawing - Electrical Battery
B1 Temperature sensor, supply air
B5 Temperature sensor, water battery
* (- EB1/F10/F20)
EB1 Heating battery, electrical
F10 Overheating thermostat (manual reset)
F20 Overheating thermostat (automatic reset)
FI1 Supply air filter
FI2 Extract air filter
M1 Supply air fan
M2 Extract air fan
HR-R Rotor heat exchanger
M4 Rotor motor
System Drawing - Water Battery *
S4 R/S7 R
Supply air Extract air Exhaust Outdoor air
Supply Extract Exhaust Outdoor
B1
FI2
M1
M2
EB1
F10
F20
FI1
M4
HR-R
Right model
(left model inverted)
1
11
4
5
3
8
6
2
7
10
9
System Drawing - Electrical Battery
B1
FI2
M1
M2
FI1
M4
HR-R
B5
B1
