Flexit SPIRIT - Wiring Diagrams (Cont.); Cable Harness Connector Mapping

33
Passer mot kontakt
i aggregat forberedt
for vann, ledningssett
merket 110545 (UNI
3/4) eller 110542
(UNI 2)
Passar mot kontakt
i aggregat förberedt
för vatten
kablage märket
110545 (UNI 3/4) el-
ler 110542 (UNI 2).

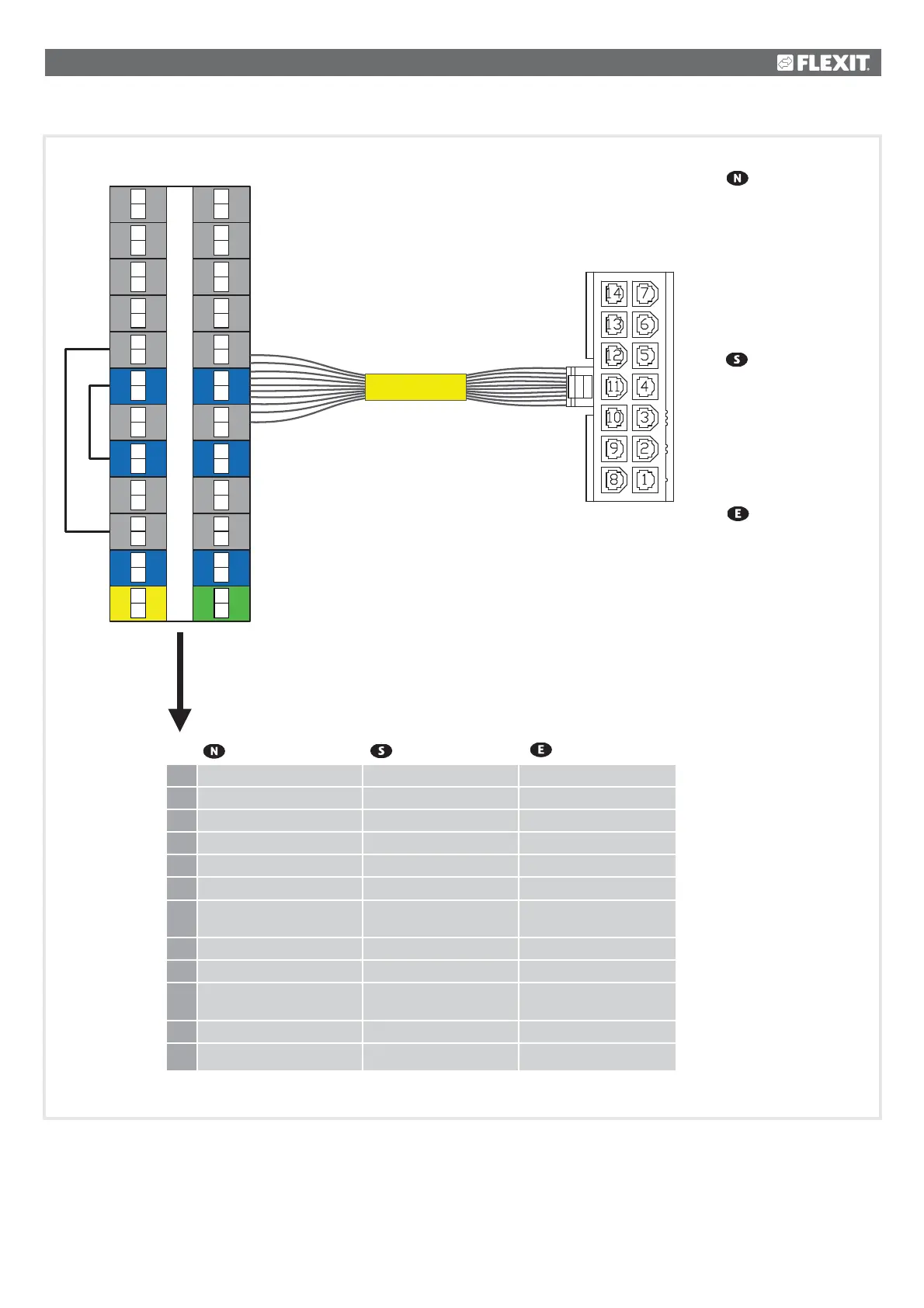

Fits a connector in
the ventilation unit
which is prepared for
waterheating. Cable
set is marked 110545
(UNI 3/4) or 110542
(UNI 2).
Kablage ingår i vattenbatteri
Ledningssett inngår i vannbatteri
Cable set included in water battery
1
2
3
4
5
6
7
8
9
10
11
12
Art.nr 110860
12 B5 Returvannsføler G0 B5 Returvattengivare G0 B5 Return water sensor G0
11 Returvannsføler 0-10V Returvattengivare 0-10V Return water sensor 0-10V
10 Shuntventilmotor G0 Shuntventilmotor G0 Shunt valve motor G0
9 Shuntventilmotor 0-10V Shuntventilmotor 0-10V Shunt valve motor 0-10V
8 Shuntventilmotor L Shuntventilmotor L Shunt valve motor L
7 Shuntventilmotor N Shuntventilmotor N Shunt valve motor N
6
Sirkulasjonspumpe on/off (L) Cirkulationspump on/
off (L)
Circulationpump on/off (L)
5 Sirkulasjonspumpe (N) Cirkulationspump (N) Circulationpump (N)
4 Spjeldmotor on/off (L) Spjällmotor on/off (L) Damper motor (L)
3
Spjeldmotormating (L)
3-tråd
Spjällmotormatning (L)
3-tråd
Damper motor (L)
3-wires
2 Spjeldmotor (N) Spjällmotor (N) Damper motor (N)
1
Jord Jord Ground
