Document Title Document No. Revision
Date Section
Supplement S3 to the AMM CTLS-LSA –
CTLS-LSA with ROTAX 912iS
AF 0480 0011 00 05-Aug-12 28-00-5
Approval Ref.: Approved on the Basis of Manufacturer Self Declaration

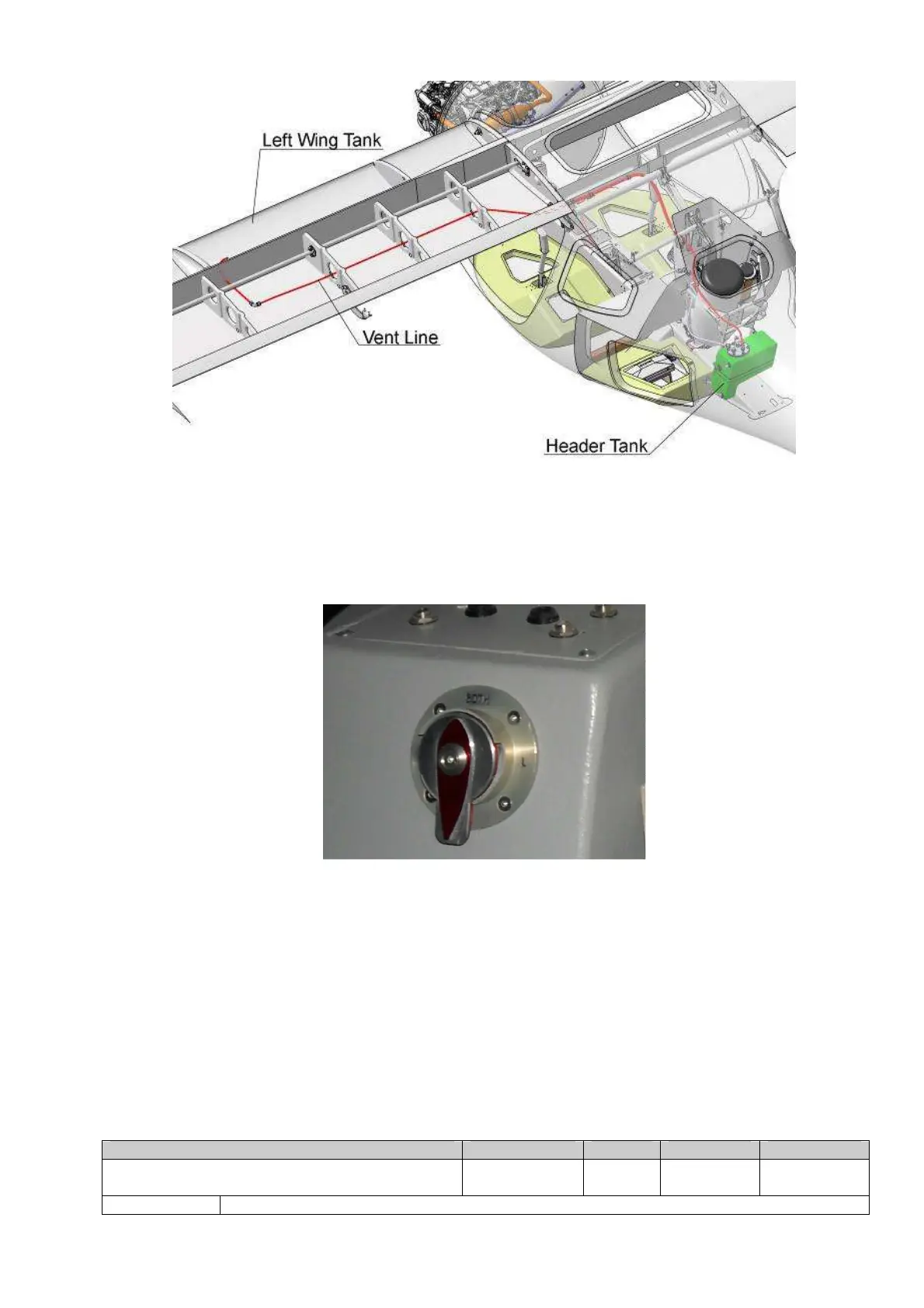

Fig. 28-00-6
Fuel selector is placed behind occupants at the fuel selector box (Fig. 28-00-7). The fuel
selector normal operating position is “both”, a single tank is only selected temporarily to
correct a possible fuel imbalance. Selection of a single tank is announced by the EMS to
remind the pilot to go back to “both”. The selector valve does not allow to shut off the fuel
flow.
Fig. 28-00-7
The fuel pumps block and gascolator are located in left side of luggage compartment and
covered with composite box with hatch for inspection and maintenance.
