Document Title Document No. Revision
Date Section
Supplement S3 to the AMM CTLS-LSA –
CTLS-LSA with ROTAX 912iS
AF 0480 0011 00 05-Aug-12 28-00-11
Approval Ref.: Approved on the Basis of Manufacturer Self Declaration
28-00.3.2 Fuel Pumps Block Removal and Installation
28-00.3.2.1 Type of Maintenance
Line
28-00.3.2.2 Minimum Level of Certification
Repairman, Light Sport Aircraft-Maintenance (RLSA-M) or higher
28-00.3.2.3 Procedure
A. Recommended Special Tools and Parts
Item Quantity Unit
None
B. Fuel Pumps Block Removal
Step Action Reference
1 Drain fuel through gascolator to sufficient container. 12-10.2.1.
2
Open cover in left luggage compartment floor to gain access to the fuel system
components.
3

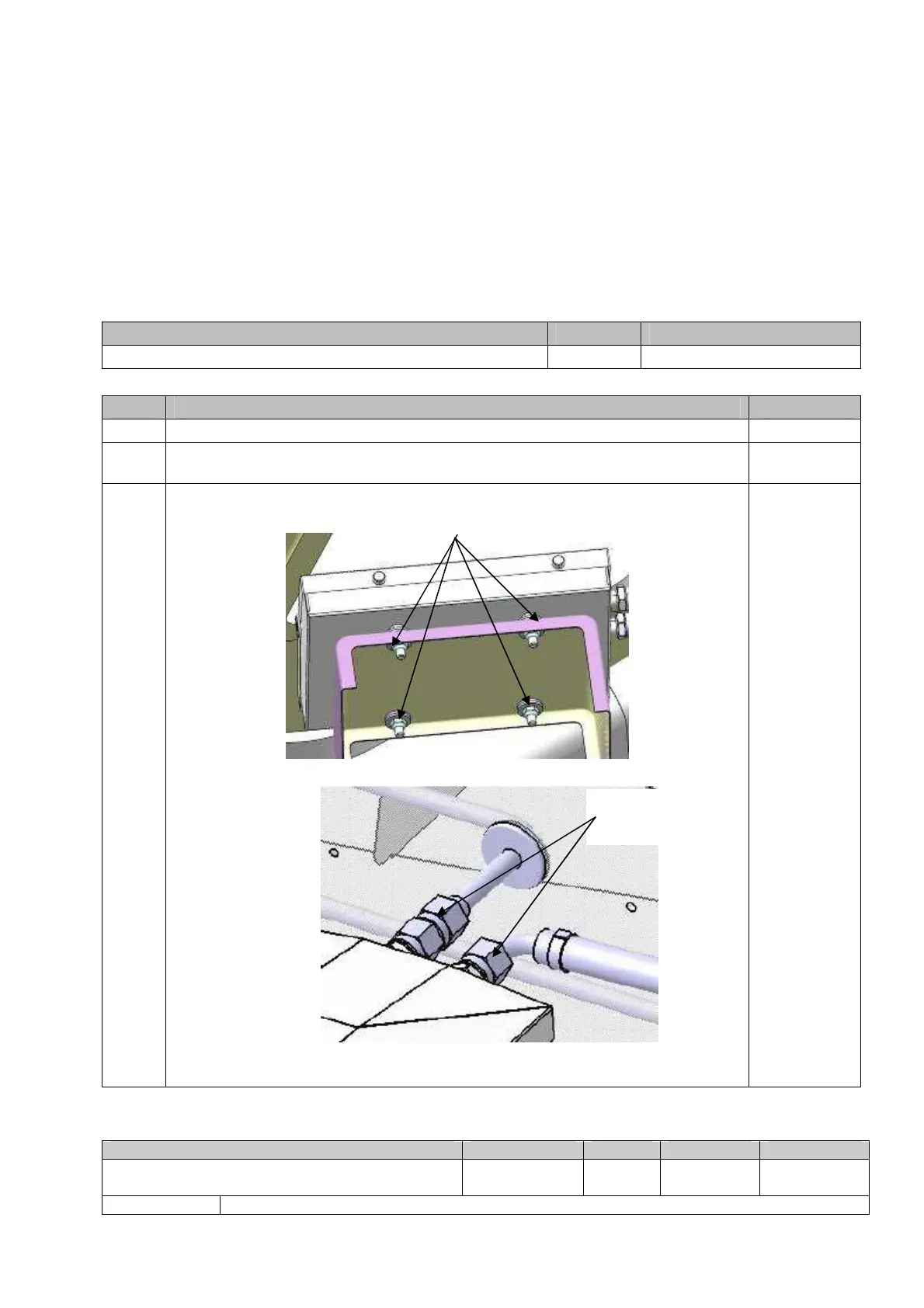

Unscrew 4 nuts from support:
Unscrew fitting nuts and disconnect hoses from Fuel pump.
Remove Fuel Pumps bloc.
Unscrew 4 bolts, and remove Fuel Pumps box.
Nuts
Fitting
nuts
