71-00.3.3.1 Type of Maintenance
Line
71-00.3.3.2 Minimum Level of Certification
Pilot/Owner
71-00.3.3.3 Procedure
A. Recommended Special Tools and Parts
Item Quantity Unit
None
A. Air Intake System Inspection; Airfilter Removal and Installation / Exchange
Step Action Reference
1 Remove upper cowling 71-00.3.1
2 Check Aeroduct hose for damage, security of attachments and condition.
3 Check the Air filter installation. Inspect tightening of securing clamps.

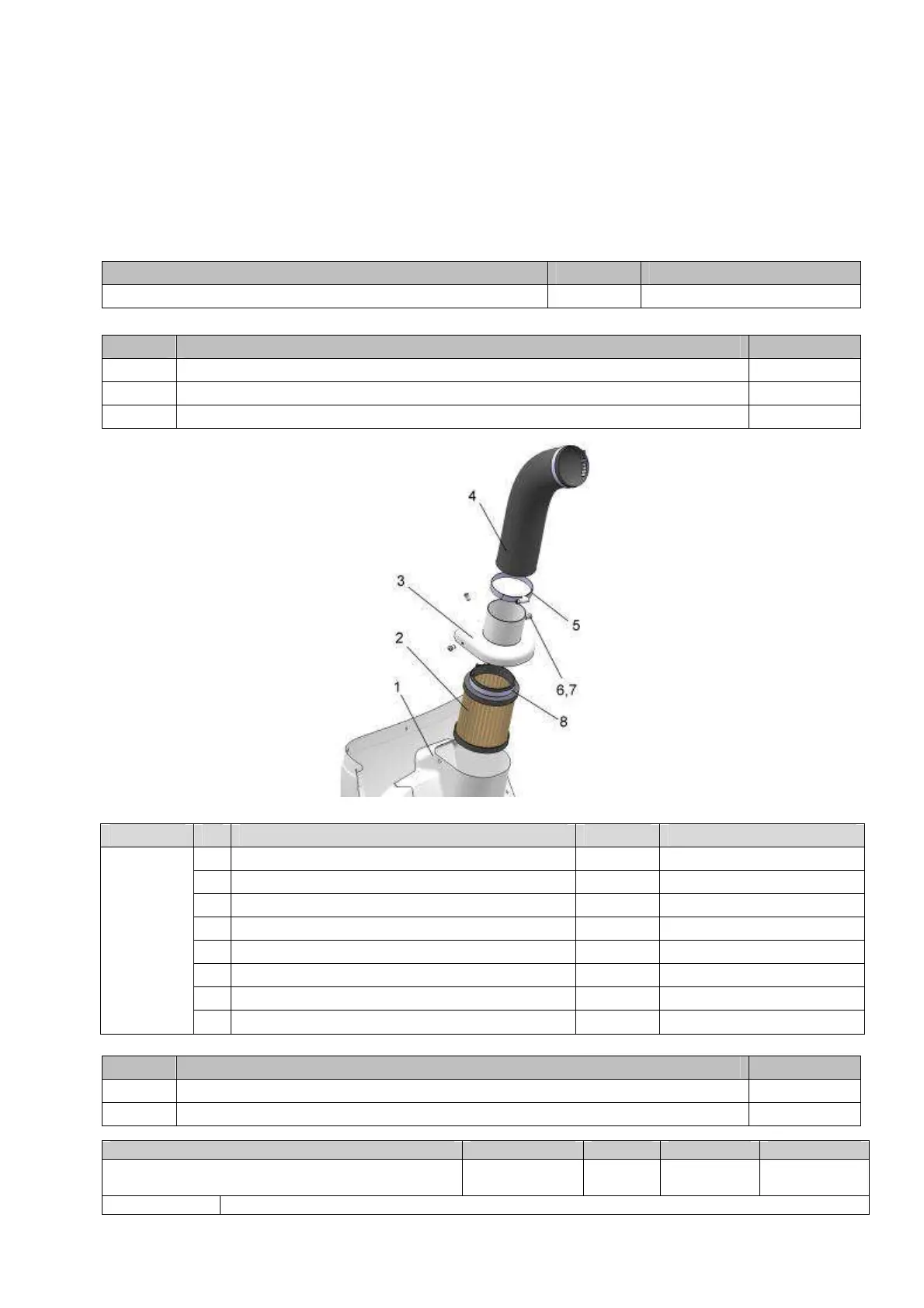

Fig. 71-00-4. Air Filter installation
Fig. Item
Part Name Torque Reference
1 Lower cowling with dust filter box KF71100203
2 Air filter C9997191C
3 Cover KC28001021
4 Aeroduct Hose
C9993188A
5 Clamp 60-80mm/9mm C9997723B
6 Bolt M4x10 C9996159
7 Rivet Nut M4 C9996833
71-00-4
8 Clamp C9997791C
B. Dust Filter Inspection.
Step Action Reference
1 Loose Clamps 5 and remove Aeroduct Hose 4.
2 Unscrew three Screws 6 and remove Cower 3.
