5
–
Camera Controll
er
A6000 and A8500 Se
ries
User’s
Manual
22
Presets are selected
to be incl
uded in superframi
ng by clicking on the
preset numbers
to make them
change to a blue
circled state. The

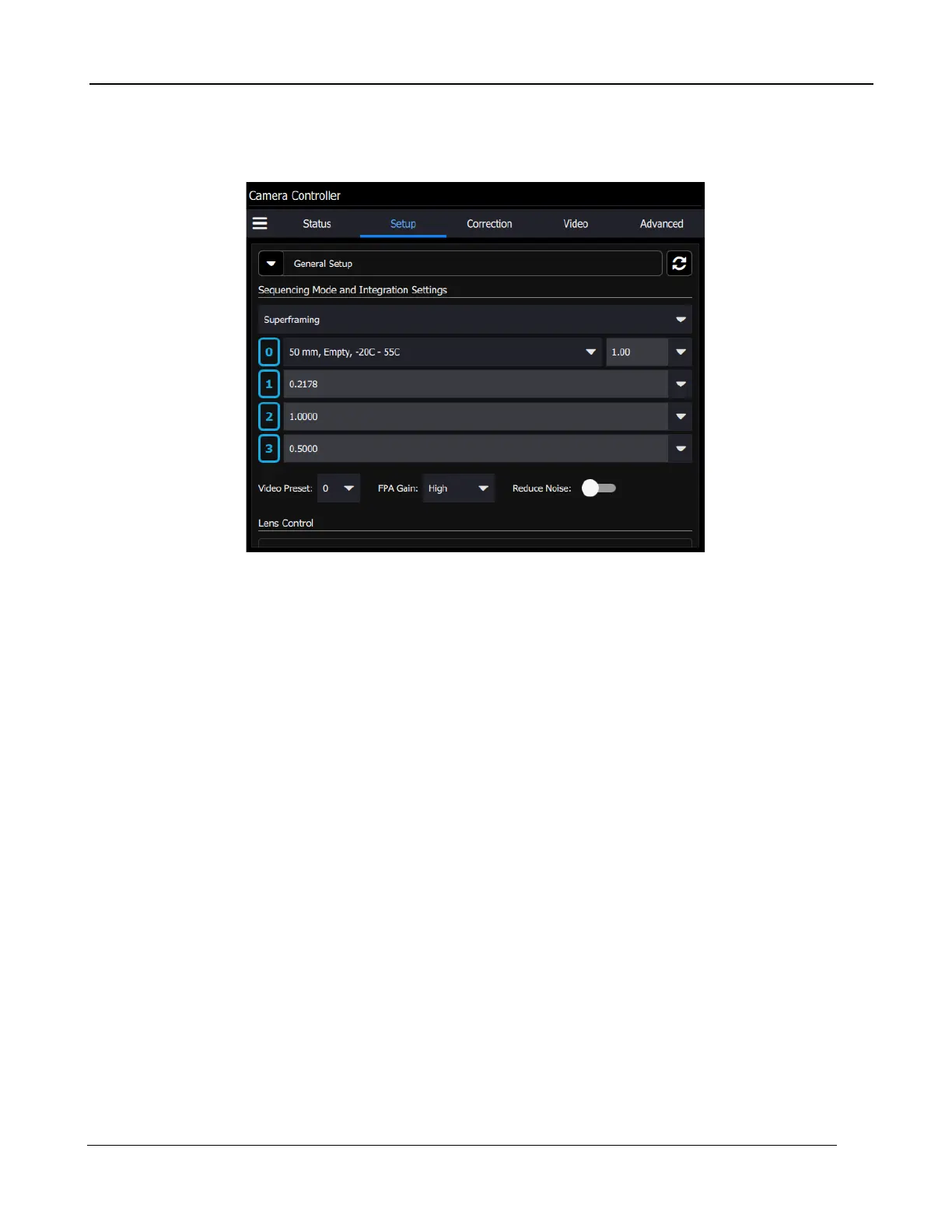

figure below shows the
camera set up
with all four presets
active.
The Video Prese
t is the preset used
to stream
HD
-SDI video out of
the camera.
21
23
Table of Contents
Default Chapter
3
Table of Contents
3
1 Revision History
6
2 Introduction
7
Camera System Components
7
Camera Models
7
System Overview
9
Key Features of the A6000 and A8500 Series Cameras
10
3 Warnings and Cautions
12
4 Installation
13
Basic Connections
13
Power
15
Video (HD-SDI) [All Except A6705]
15
Gige Digital Video
15
5 Camera Controller
16
Hamburger Button" Menu
17
Adjust Time Controls
18
Edit Filter Names (A678X and A858X Only)
19
Status Page
19
Setup
20
General Setup
20
Sequencing Mode (Limited Functionality in A670X)
21
Loading Factory Calibrations
23
Changing Integration Time
24
Changing Frame Rate
25
Changing FPA Gain
25
Reduce Noise
25
High Sensitivity Mode (HSM)
26
Lens Control (A678X and A858X Only)
26
FPA Window Settings
29
Invert and Revert
30
Sync Settings (Limited Functionality in A670X)
30
Sync Source
31
Frame Sync Starts
33
Frame Sync Starts Integration (FSSI)
34
Frame Sync Starts Readout (FSSR)
34
Trigger Mode
35
Sync Options
37
Sync out
38
Filter Wheel Settings [A858X and A678X Only]
39
Flag Settings
40
Correction Page
41
NUC Information
43
Manage Nucs
43
Load NUC Options
44
Performing a NUC
45
What Is a Non-Uniformity Correction (NUC)
50
Two-Point Correction Process
51
Offset Update
51
Bad Pixel Correction
52
Video Page (Not Available in A6705)
54
AGC ROI Settings
58
Advanced
59
Digital Settings
59
Analog Settings
61
Saturation Settings
62
6 Interfaces
63
Mechanical (Dimensions in Inches)
63
Status Lights
70
Power Interfaces
70
Power Interface [All Except A6705]
70
Power Interface [A6705 Only]
71
Lens Interfaces
71
C-Mount (A626X Only)
71
Warm Filter (A670X and A675X Only)
72
Warm Filter Holder (A626X Only)
72
FLIR FPO Lens Interface [A670X and A675X Only]
73
FPO-M Motorized Lens Interface [A678X and A858X Only]
73
Other Interfaces
74
Gigabit Ethernet
74
Coaxpress (CXP) [A858X Only]
74
HD-SDI Video
74
AUX Connector [A626X, A675X, A678X, A858X]
74
Sync in [All Except A6705 and A858X]
76
Trigger in [A6705 Only]
76
7 Specifications
77
Interfaces
77
A858X
77
A6000 Series
77
Windowing Capacity
78
A858X
78
A6000 Series
78
Acquisition Modes and Features
79
A858X
79
A6000 Series
79
HD-SDI Video
80
A858X and All A6000 Models
80
Performance Characteristics
81
A858X
81
A6000 Series
81
Non-Uniformity Correction
82
A858X and All A6000 Models
82
Detector/Fpa
82
A858X
82
A6000 Series
83
General Characteristics
83
A858X
83
A6000 Series
84
8 Maintenance
85
Camera and Lens Cleaning
85
Camera Body, Cables and Accessories
85
Lenses
85
