FLIR E4 Technical Data

1,7in
43,1mm
2,2in
56mm
9,59in
243,5mm
3,73in
94,8mm
Optical axis
3,08in
78,3mm
9,86in
250,4mm
1,9in
48,3mm
5,52in
140,1mm
0,53in
13,5mm
4,27in
108,6mm
2,17in
55,2mm
7,41in
188,3mm
2,39in
60,7mm
IR optical axis
Visual optical axis
Camera with built-in IR lens f=6,5 mm (45°)
1 2 3 4 5 6 7 8 9 10
1 632 54
A
B
C
D
E
F
G
H
F
C
E
G
D
A
B
-
Scale
1:2
A
Size
Modified
R&D Thermography
2013-03-25
CAHA

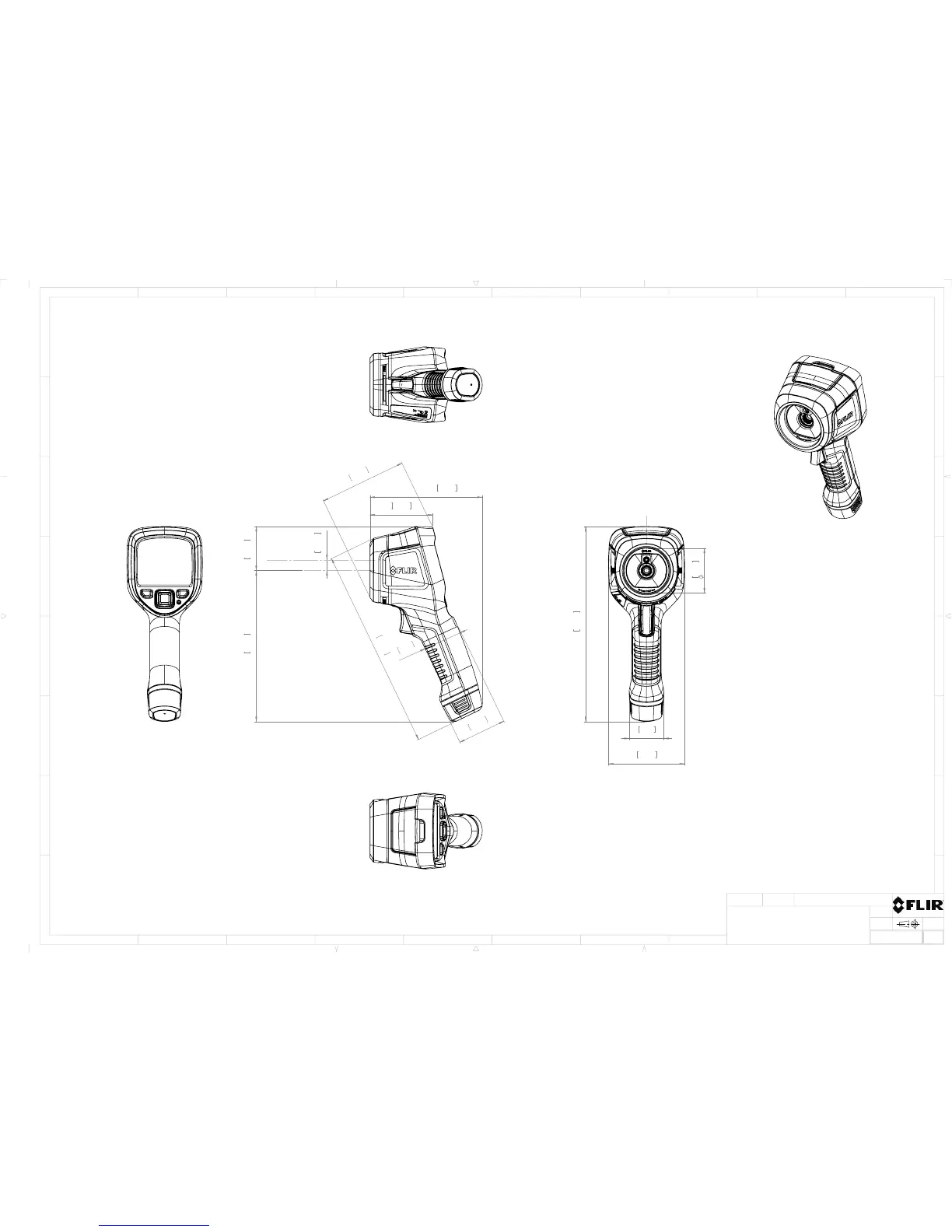

Basic dimensions FLIR Ex
T127831
1(2)
A2
Denomination
Drawn by Check
Size
Drawing No.
Sheet
7
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply. Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.

FLIR E4 Specifications

General

Resolution	80 x 60 pixels
Field of View	45° x 34°
Image Modes	Thermal, Visual, MSX
Accuracy	±2°C or ±2% of reading
Spatial Resolution	7.6 mrad
Image Frequency	9 Hz
File Format	Radiometric JPEG
Battery Life	4 hours
Weight	0.575 kg
Operating Temperature	-15°C to +50°C
Storage Temperature	-40°C to +70°C
Temperature Range	-20°C to +250°C
Focus	Focus Free
Display	3.0 in. LCD
Spectral Range	7.5 - 13 μm
Dimensions	244 x 95 x 140 mm
