FLIR E4 Technical Data

2,29in
58,3mm
3,21in
81,5mm
2,6in
66mm
3,52in
89,5mm
1,41in
35,8mm
4,13in
105mm
1,66in
42,3mm
2,56in
65mm
1,96in
49,9mm
0,84in
21,4mm
0,87in
22,1mm
0,41in
R10,5mm

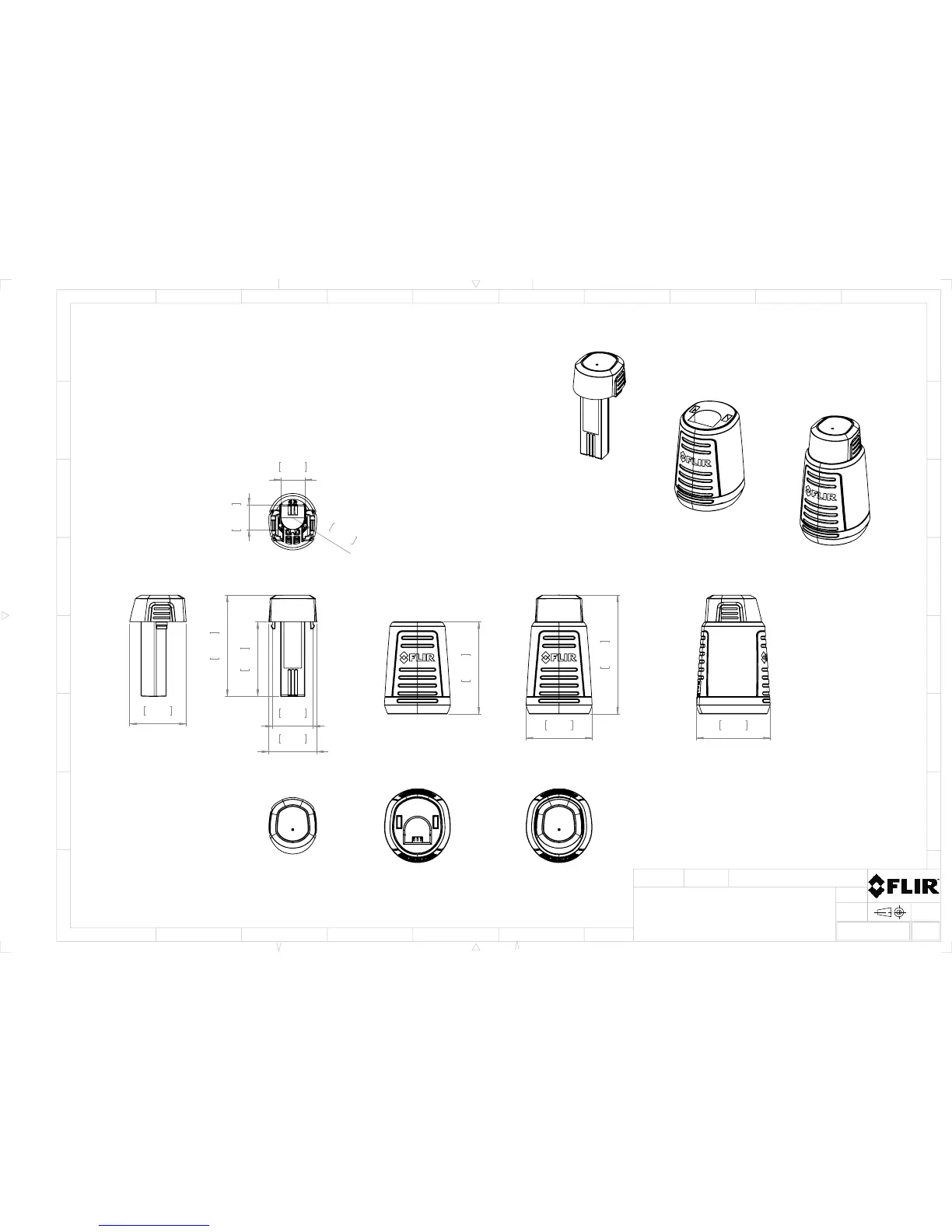

Charger and Power pack
Sheet
Drawing No.
Size
Check Drawn by
Denomination
A3
2(2)
T127831
Basic dimensions FLIR Ex
CAHA
2013-03-25
R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
1 32 54
C
F
B
D
G
E
A
6
Size
A
1:2
Scale
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply. Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
-

FLIR E4 Specifications

General

Resolution	80 x 60 pixels
Field of View	45° x 34°
Image Modes	Thermal, Visual, MSX
Accuracy	±2°C or ±2% of reading
Spatial Resolution	7.6 mrad
Image Frequency	9 Hz
File Format	Radiometric JPEG
Battery Life	4 hours
Weight	0.575 kg
Operating Temperature	-15°C to +50°C
Storage Temperature	-40°C to +70°C
Temperature Range	-20°C to +250°C
Focus	Focus Free
Display	3.0 in. LCD
Spectral Range	7.5 - 13 μm
Dimensions	244 x 95 x 140 mm
