Introduction
Thank you for selecting the FLIR Moisture Meter Probe MR06 (wall
cavity probe), MR07 (hammer probe), or MR08 (hammer/wall cavity
combination). Connect the probe to a FLIR moisture meter to
measure moisture in wood & other building materials.
Safety Instructions
• This device should be used only for purposes outlined in this
manual. Misuse may cause damage to the probe and/or external
devices, and can cause personal injury.
• Keep the probe packed when not in use.
• Do not allow children to handle the probe or the pins.

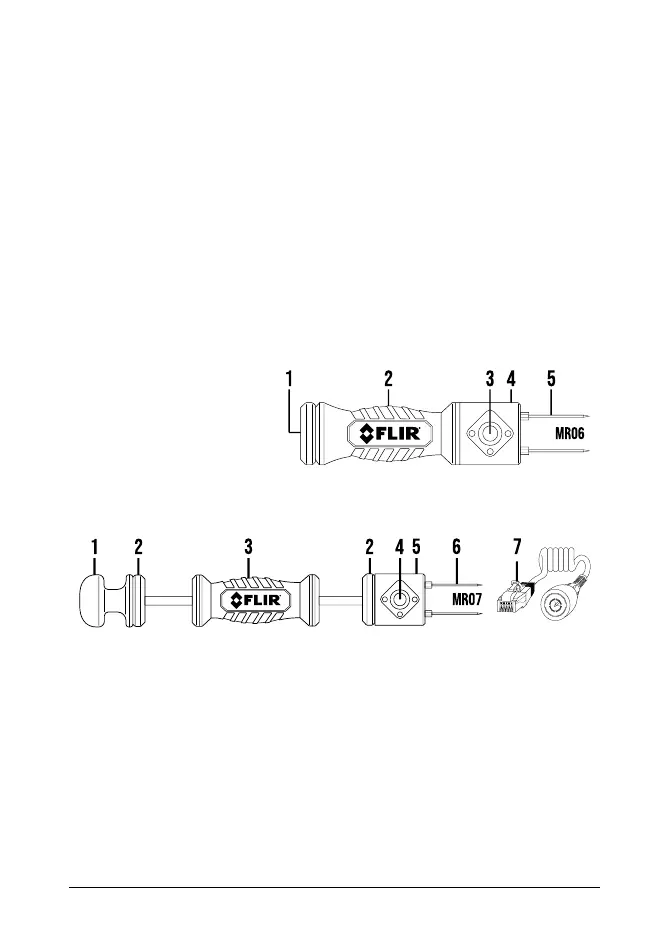

MR06 Wall Cavity Probe Description
1. Strike plate
2. Handle grip
3. BNC cable jack
4. Pin probe head
5. Removable probe pins
MR07 Hammer Probe Description
1. Knob handle
2. Strike areas
3. Slide hammer
4. BNC cable jack
5. Pin probe head
6. Removable probe pins
7. Detachable RJ45 to BNC connector
Note: MR08 kit assembly includes all MR06 & MR07 components
#NAS100211; r. AB/96871/96890; en-GB
1
