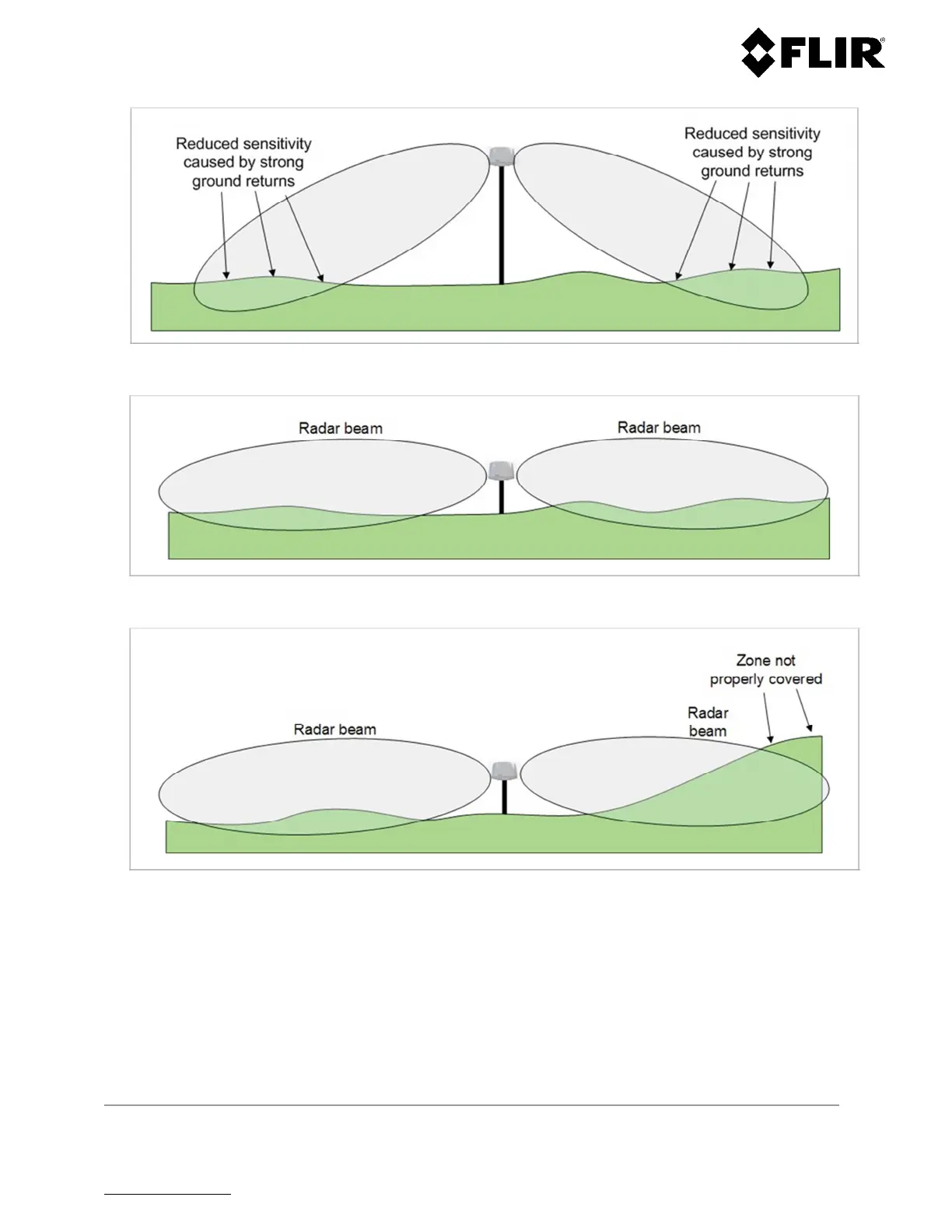

Figure 6 - Radar Installation on Even Terrain - Incorrect Height and Correct Tilt Angle (only applicable to FastScan mode)
Figure 7 - Radar Installation on Even Terrain - Correct Height and Tilt Angle
Figure 8 - Radar Installation Near Rising Terrain - Sub-Optimal Radar Position and Tilt Angle
