1,6in
40,7mm
4,1in
104,2mm
2,87in
73mm
Optical axis
2,55in
64,8mm
2,79in
70,9mm
For additional dimensions see page 1
Camera with Macro lens 1X (25 µm)
1 2 3 4 5 6 7 8 9 10
1 632 54
A
B
C
D
E
F
G
H
F
C
E
G
D
A
B
-
Scale
1:2
B
Size
Modified
R&D Thermography
2012-04-19
CAHA

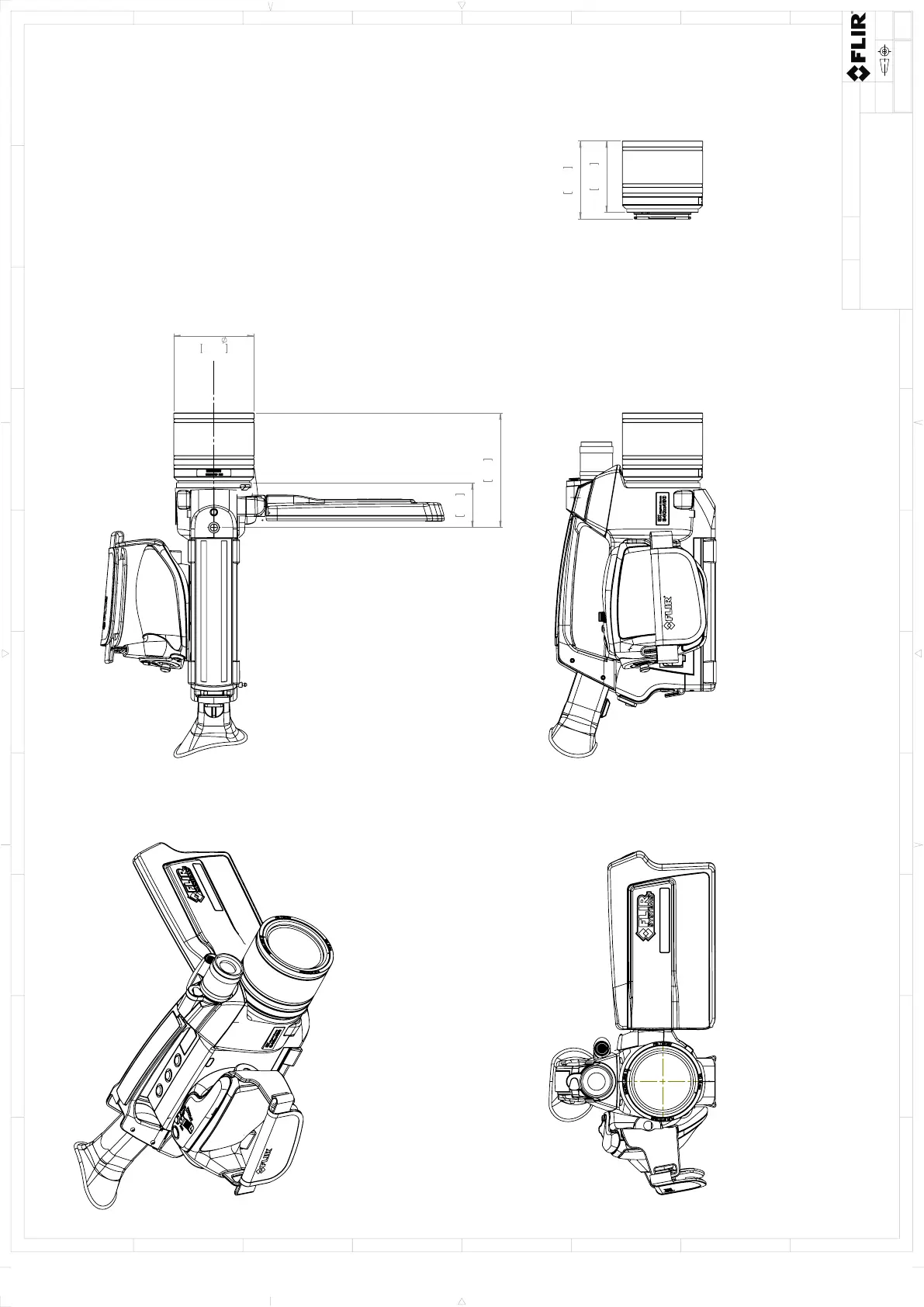

Basic dimensions FLIR P6xx
T125460
6(7)
A3
Denomination
Drawn by
Check
Size
Drawing No.
Sheet
7
