A
DJUSTMENTS
Suction Fan Speed / Air Control
—————
Fan suction, is controlled primarily by changing the RPM of the fan wheel. This is achieved by changing
the driven sheave on the fan shaft, (See chart below). Raising or lowering the adjustable flap behind the suction fan
inlet tube will also vary the amount of suction. To increase suction, unhook the chain and lower the flap. To
decrease suction, raise the flap. The sliding, adjustable wind board under the plenum should be in the front holes
for walnuts and pecans, and in the back holes for almonds.
Fan Speed Chart
Countershaft
Sheave Fan Belt RPM Application
5V15.0 5V8.0 5VX750 1012 Optional Slow
5V15.0 5V7.5 5VX750 1080 Almonds
5V15.0 5V7.1 5VX730 1140 Intermediate
5V15.0 5V6.7 5VX730 1208 Walnuts/ Pecans
5V15.0 5V6.3 5VX730 1285 Macadamias
5V15.0 5V5.9 5VX730 1372 Hazelnuts

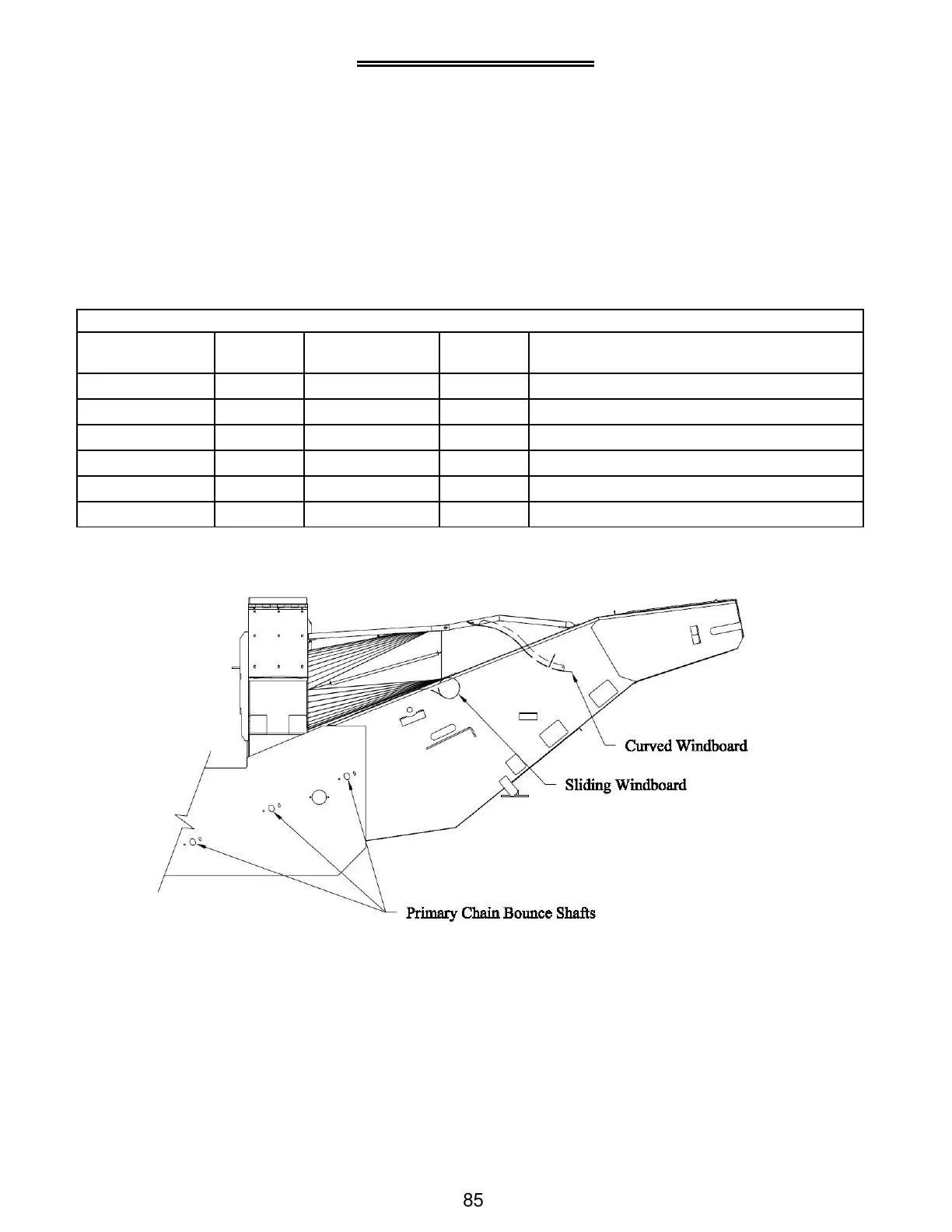

Primary Chain Bounce Shafts
—————
The bounce shafts control primary chain vibration. The bounce shafts are set at the factory in the middle
position. To increase vibration raise shafts to top of slots. To decrease vibration, lower shaft to bottom of slots.
Note: If the primary bounce shafts are relocated to the top position, this will result in reduced chain life.
