Installation
System Connection

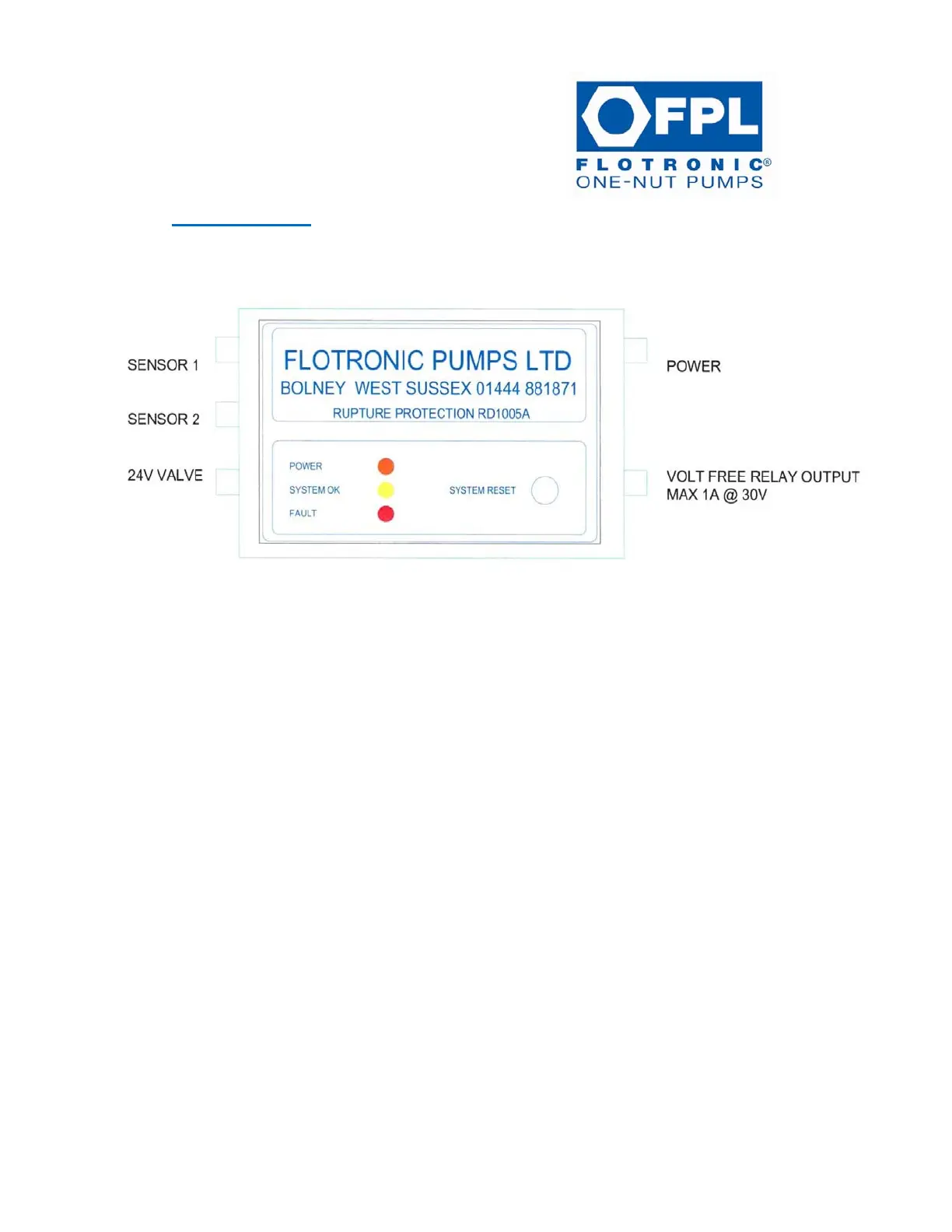

The main unit is fitted sockets for the connection of the two sensors and solenoid
valve and a 150mm hard wired lead fitted with a socket and plug for mains power
connection.
The sensors are supplied pre-wired for immediate use.
The solenoid valve, volt free relay and mains power connection plugs are user
connectable using screw terminals internal to the plugs. (Plugs supplied with main
unit)
