Power Connection
Be sure that the power supply voltage of the area where this unit will be used
meets the voltage requirements, 96 – 264Vac @ 50/60Hz, of the main control unit.
Please observe the wiring code belo
w, if in any doubt please consult a qualified
electrician.
NOTE:
This unit MUST be earthed/grounded by connecting a suitable earth connection to
the plug terminal marked as Earth on the connection diagram below.
Main Pow
er Connection
NO
TE:

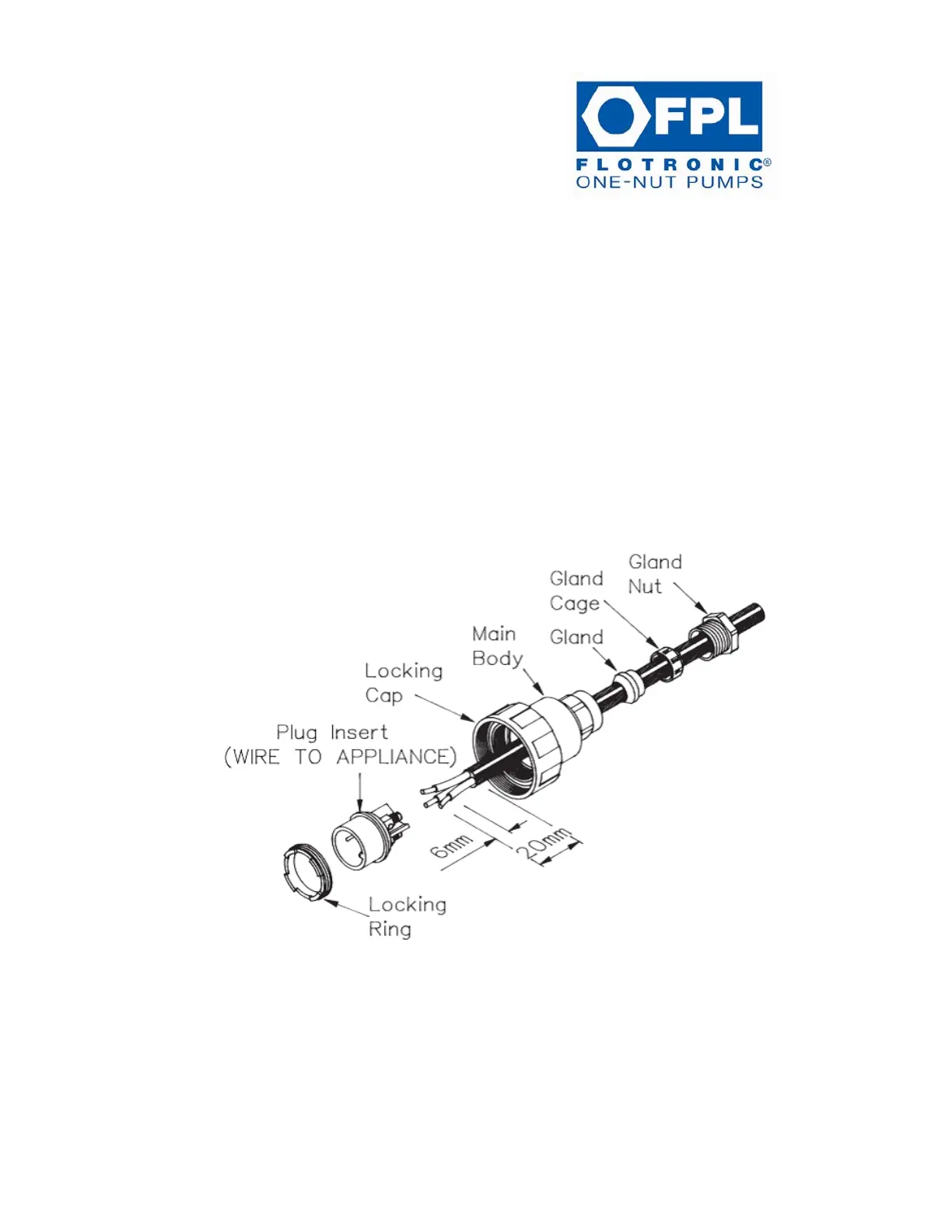

Cable should be prepared as shown in diagram above
