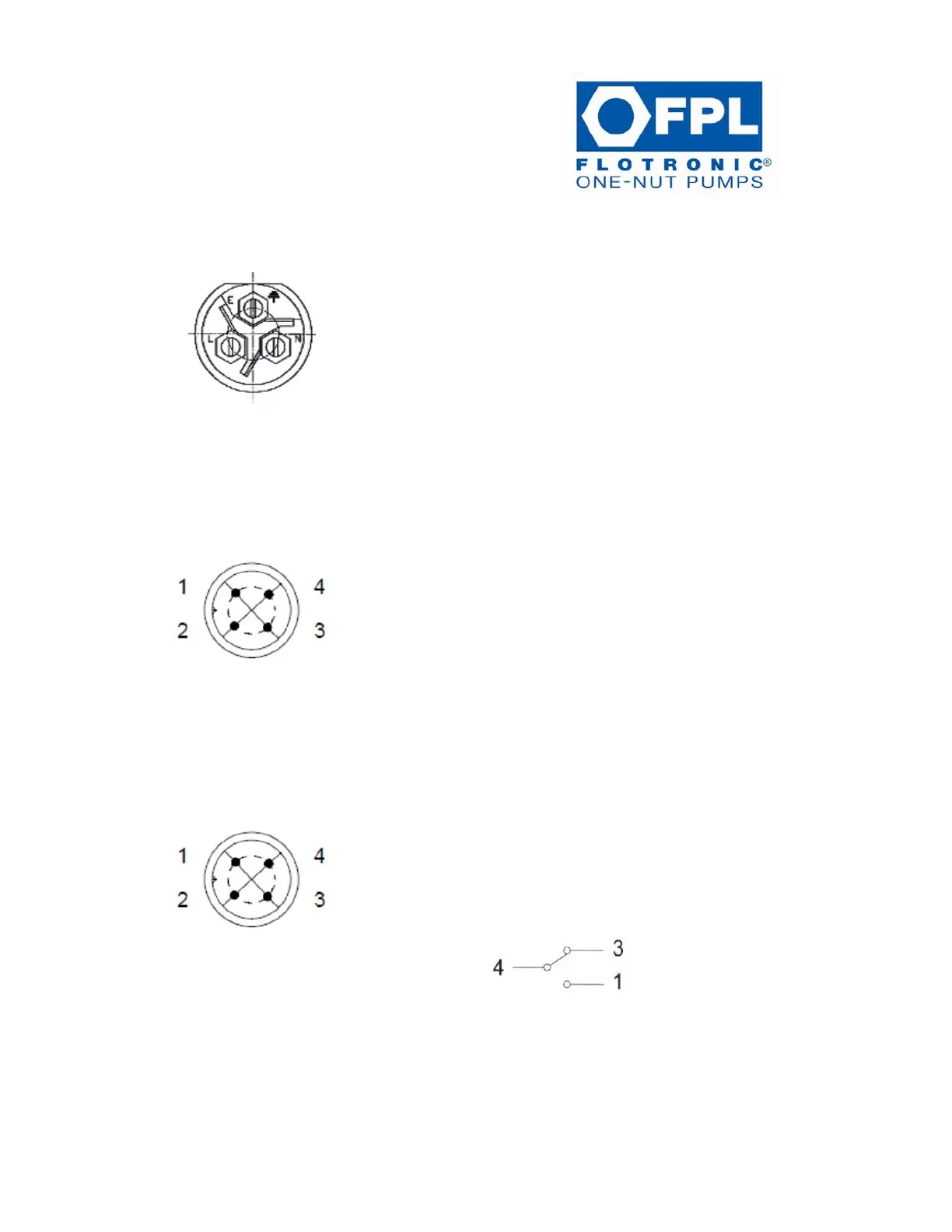

Flotronic One-Nut - Wiring Connections; Solenoid Valve Connection; Volt Free Relay Connection

Main Pow
er Connection (continued)
L = Live (96-264 Vac)
N = Neutral (96-264 Vac)
E = Earth
Internal screw terminals
are lettered.
Solenoid Valve Connection
1 = N/C
2 = +24 Vdc (positive)
3 = N/C
4 = -24 Vdc (negative)
Internal screw terminals
are numbered.
Volt Free Relay
Connection – MAX 1A @ 30V
1 = Normally Open Connection
2 = N/C
3 = Normally Closed Connection
4 = Common
Internal screw terminals
ar
e numbered.
N/C = NO CONNECTION
