FlowCon SM.3.0 User Manual

FlowCon SM 50-150mm DYNAMIC SELF BALANCING
CONTROL VALVE
1A95105 - 08/2016
FlowCon International assumes no responsibility
for mistakes, if any, in any printed material.
Denmark Dubai USA Singapore www.owcon.com
- 6 -

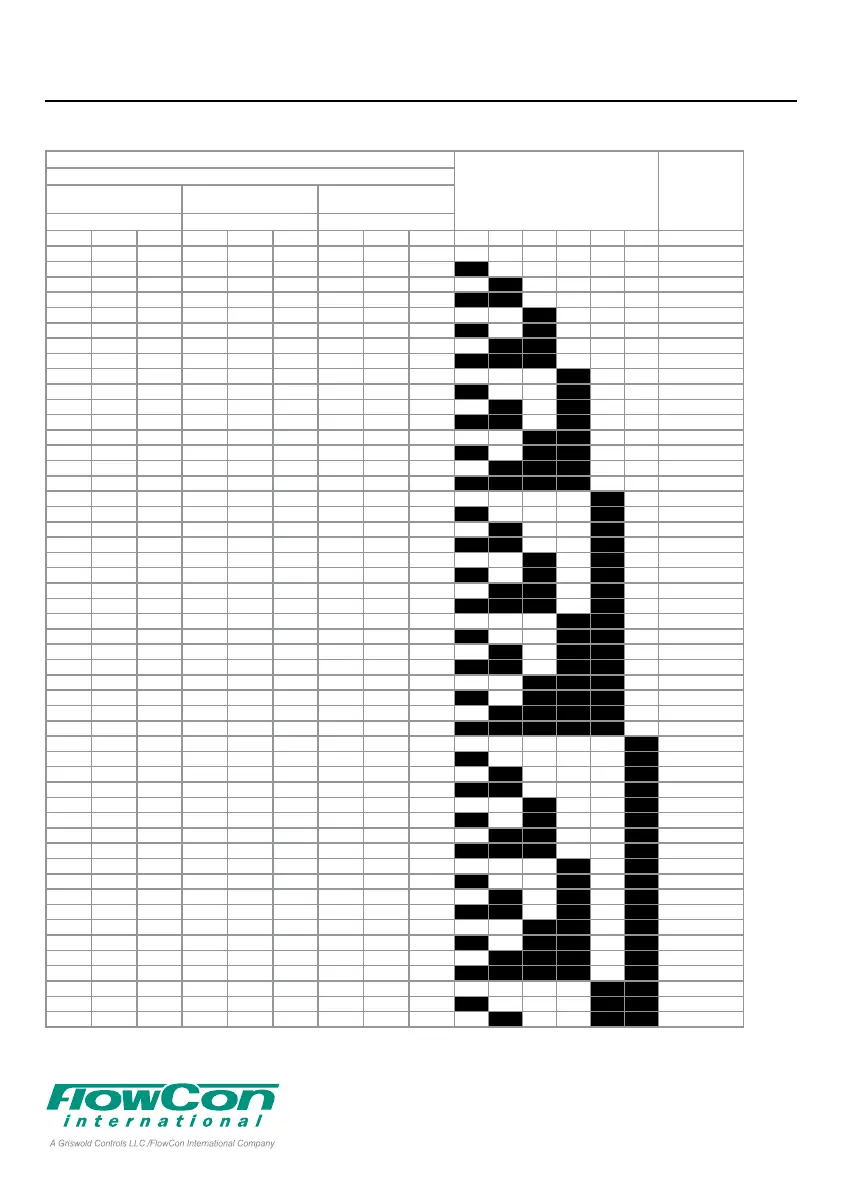

Maximum ow rate limitation DIP switch settings, SM3
Maximum Flow Rate
Maximum Flow Rate
DIP Switch Settings
Stem
Rotations
From Closed
Valve size: DN50-DN80 · 2”-3”
30-600 kPaD
4.5-87 psid
30-600 kPaD
4.5-87 psid
35-600 kPaD
5.1-87 psid
SM.3.0 SM.3.1 SM.3.2
l/sec l/hr GPM l/sec l/hr GPM l/sec l/hr GPM 1 2 3 4 5 6 Rotations
1.48 5310 23.4 2.57 9240 40.7 3.55 12800 56.3 ON ON ON ON ON ON 1.0
1.58 5700 25.1 2.81 10100 44.6 3.85 13900 61.0 OFF ON ON ON ON ON 1.1
1.69 6080 26.8 3.05 11000 48.4 4.13 14900 65.6 ON OFF ON ON ON ON 1.2
1.79 6460 28.5 3.27 11800 51.9 4.41 15900 69.9 OFF OFF ON ON ON ON 1.3
1.90 6830 30.1 3.48 12500 55.3 4.67 16800 74.0 ON ON OFF ON ON ON 1.4
2.00 7190 31.7 3.69 13300 58.5 4.92 17700 78.0 OFF ON OFF ON ON ON 1.5
2.09 7540 33.2 3.88 14000 61.5 5.16 18600 81.8 ON OFF OFF ON ON ON 1.6
2.19 7880 34.7 4.06 14600 64.3 5.38 19400 85.4 OFF OFF OFF ON ON ON 1.7
2.28 8210 36.2 4.23 15200 67.0 5.60 20200 88.8 ON ON ON OFF ON ON 1.8
2.37 8540 37.6 4.39 15800 69.6 5.81 20900 92.1 OFF ON ON OFF ON ON 1.9
2.46 8860 39.0 4.54 16300 72.0 6.01 21600 95.3 ON OFF ON OFF ON ON 2.0
2.55 9170 40.4 4.68 16900 74.3 6.19 22300 98.0 OFF OFF ON OFF ON ON 2.1
2.63 9470 41.7 4.82 17300 76.4 6.37 22900 101 ON ON OFF OFF ON ON 2.2
2.71 9770 43.0 4.94 17800 78.4 6.54 23600 104 OFF ON OFF OFF ON ON 2.3
2.79 10100 44.3 5.06 18200 80.3 6.70 24100 106 ON OFF OFF OFF ON ON 2.4
2.87 10300 45.5 5.17 18600 82.1 6.86 24700 109 OFF OFF OFF OFF ON ON 2.5
2.94 10600 46.7 5.28 19000 83.7 7.00 25200 111 ON ON ON ON OFF ON 2.6
3.02 10900 47.9 5.37 19300 85.2 7.14 25700 113 OFF ON ON ON OFF ON 2.7
3.09 11100 49.0 5.47 19700 86.7 7.27 26200 115 ON OFF ON ON OFF ON 2.8
3.16 11400 50.1 5.55 20000 88.0 7.40 26600 117 OFF OFF ON ON OFF ON 2.9
3.22 11600 51.1 5.63 20300 89.3 7.52 27100 119 ON ON OFF ON OFF ON 3.0
3.29 11800 52.1 5.70 20500 90.5 7.63 27500 121 OFF ON OFF ON OFF ON 3.1
3.35 12100 53.1 5.77 20800 91.6 7.74 27900 123 ON OFF OFF ON OFF ON
3.2
3.41 12300 54.0 5.84 21000 92.6 7.84 28200 124 OFF OFF OFF ON OFF ON 3.3
3.46 12500 54.9 5.90 21200 93.5 7.94 28600 126 ON ON ON OFF OFF ON 3.4
3.52 12700 55.8 5.95 21400 94.4 8.03 28900 127 OFF ON ON OFF OFF ON 3.5
3.57 12900 56.6 6.01 21600 95.3 8.12 29200 129 ON OFF ON OFF OFF ON 3.6
3.62 13000 57.4 6.06 21800 96.1 8.20 29500 130 OFF OFF ON OFF OFF ON 3.7
3.67 13200 58.2 6.10 22000 96.8 8.28 29800 131 ON ON OFF OFF OFF ON 3.8
3.72 13400 58.9 6.15 22100 97.5 8.36 30100 133 OFF ON OFF OFF OFF ON 3.9
3.76 13500 59.6 6.19 22300 98.2 8.44 30400 134 ON OFF OFF OFF OFF ON 4.0
3.80 13700 60.3 6.23 22400 98.9 8.51 30600 135 OFF OFF OFF OFF OFF ON 4.1
3.84 13800 60.9 6.27 22600 100 8.58 30900 136 ON ON ON ON ON OFF 4.2
3.88 14000 61.5 6.31 22700 100 8.65 31100 137 OFF ON ON ON ON OFF 4.3
3.91 14100 62.0 6.35 22900 101 8.72 31400 138 ON OFF ON ON ON OFF 4.4
3.94 14200 62.5 6.39 23000 101 8.78 31600 139 OFF OFF ON ON ON OFF 4.5
3.97 14300 63.0 6.42 23100 102 8.85 31900 140 ON ON OFF ON ON OFF 4.6
4.00 14400 63.4 6.46 23300 102 8.91 32100 141 OFF ON OFF ON ON OFF 4.7
4.03 14500 63.9 6.50 23400 103 8.98 32300 142 ON OFF OFF ON ON OFF 4.8
4.05 14600 64.2 6.54 23500 104 9.04 32600 143 OFF OFF OFF ON ON OFF 4.9
4.07 14700 64.6 6.58 23700 104 9.11 32800 144 ON ON ON OFF ON OFF 5.0
4.09 14700 64.9 6.62 23800 105 9.18 33000 146 OFF ON ON OFF ON OFF 5.1
4.11 14800 65.1 6.67 24000 106 9.25 33300 147 ON OFF ON OFF ON OFF 5.2
4.12 14800 65.3 6.72 24200 107 9.32 33500 148 OFF OFF ON OFF ON OFF 5.3
4.13 14900 65.5 6.77 24400 107 9.39 33800 149 ON ON OFF OFF ON OFF 5.4
4.14 14900 65.7 6.82 24600 108 9.46 34100 150 OFF ON OFF OFF ON OFF 5.5
4.15 14900 65.8 6.88 24800 109 9.54 34300 151 ON OFF OFF OFF ON OFF 5.6
4.15 15000 65.9 6.94 25000 110 9.62 34600 153 OFF OFF OFF OFF ON OFF
5.7
4.16 15000 65.9 7.01 25200 111 9.70 34900 154 ON ON ON ON OFF OFF 5.8
4.16 15000 66.0 7.08 25500 112 9.79 35300 155 OFF ON ON ON OFF OFF 5.9
4.16 15000 66.0 7.15 25700 113 9.88 35600 157 ON OFF ON ON OFF OFF 6.0
Accuracy: Greatest of either ±5% of controlled ow rate or ±2% of maximum ow rate.
