FlowCon SM 50-150mm DYNAMIC SELF BALANCING
CONTROL VALVE
1A95105 - 08/2016
FlowCon International assumes no responsibility
for mistakes, if any, in any printed material.
Denmark Dubai USA Singapore www.owcon.com

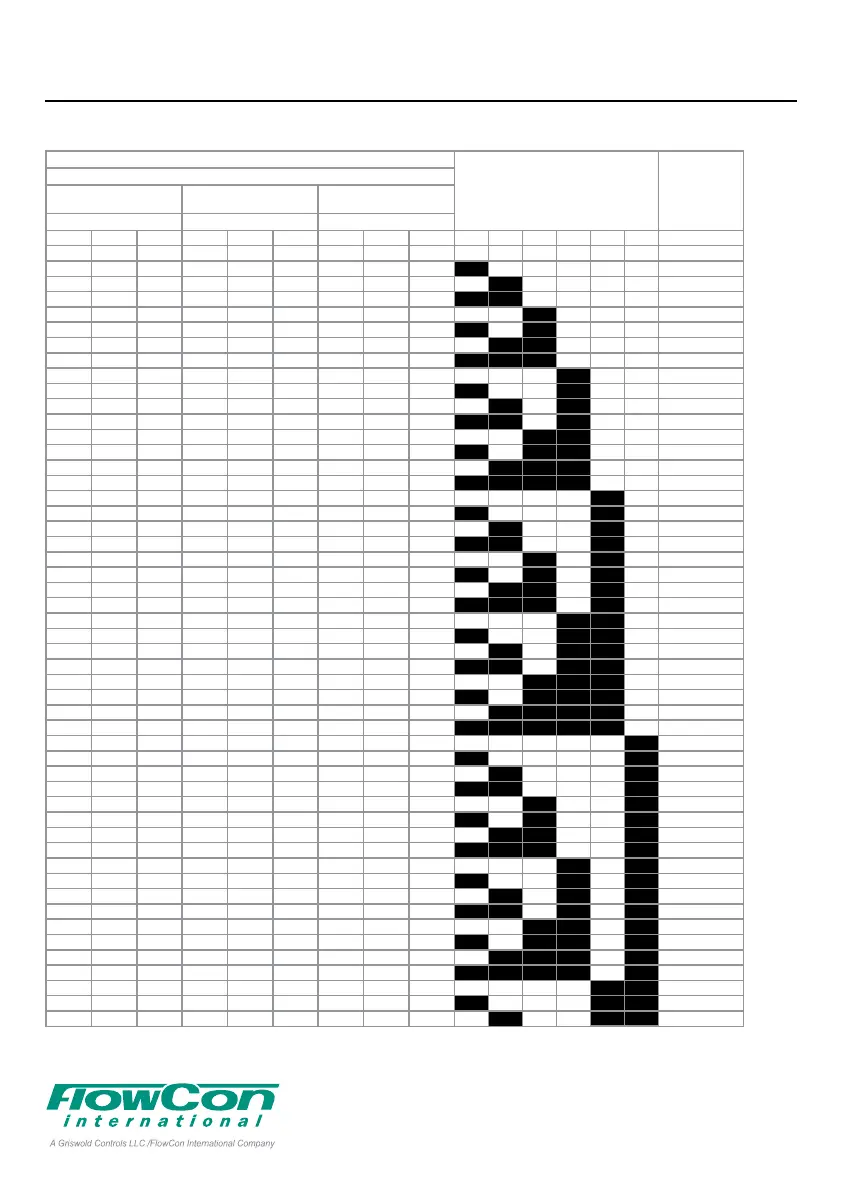

Maximum ow rate limitation DIP switch settings, SM4
Maximum Flow Rate
Maximum Flow Rate
DIP Switch Settings
Stem Rota-
tions From
Closed
Valve size: DN80 and DN100 · 3”-4”
30-600 kPaD
4.5-87 psid
35-600 kPaD
5.1-87 psid
50-600 kPaD
7.3-87 psid
SM.4.1 SM.4.2 SM.4.3
l/sec l/hr GPM l/sec l/hr GPM l/sec l/hr GPM 1 2 3 4 5 6 Rotations
3.49 12600 55.4 4.73 17000 75.0 3.68 13300 58.3 ON ON ON ON ON ON 1.0
3.88 14000 61.6 5.29 19000 83.9 4.42 15900 70.0 OFF ON ON ON ON ON 1.1
4.26 15300 67.5 5.82 21000 92.0 5.13 18500 81.3 ON OFF ON ON ON ON 1.2
4.61 16600 73.1 6.33 22800 100 5.82 21000 92.3 OFF OFF ON ON ON ON 1.3
4.94 17800 78.4 6.82 24500 108 6.50 23400 103 ON ON OFF ON ON ON 1.4
5.26 18900 83.4 7.28 26200 115 7.15 25700 113 OFF ON OFF ON ON ON 1.5
5.56 20000 88.2 7.72 27800 122 7.78 28000 123 ON OFF OFF ON ON ON 1.6
5.84 21000 92.7 8.14 29300 129 8.39 30200 133 OFF OFF OFF ON ON ON 1.7
6.11 22000 97.0 8.54 30700 135 8.99 32400 142 ON ON ON OFF ON ON 1.8
6.36 22900 101 8.91 32100 141 9.56 34400 152 OFF ON ON OFF ON ON 1.9
6.60 23800 105 9.27 33400 147 10.1 36400 160 ON OFF ON OFF ON ON 2.0
6.82 24600 108 9.61 34600 152 10.7 38400 169 OFF OFF ON OFF ON ON 2.1
7.03 25300 112 9.93 35700 157 11.2 40200 177 ON ON OFF OFF ON ON 2.2
7.23 26000 115 10.2 36800 162 11.7 42100 185 OFF ON OFF OFF ON ON 2.3
7.41 26700 117 10.5 37800 167 12.2 43800 193 ON OFF OFF OFF ON ON 2.4
7.58 27300 120 10.8 38800 171 12.6 45500 200 OFF OFF OFF OFF ON ON 2.5
7.73 27800 123 11.0 39700 175 13.1 47100 207 ON ON ON ON OFF ON 2.6
7.88 28400 125 11.3 40500 179 13.5 48700 214 OFF ON ON ON OFF ON 2.7
8.01 28800 127 11.5 41300 182 13.9 50200 221 ON OFF ON ON OFF ON 2.8
8.14 29300 129 11.7 42000 185 14.3 51600 227 OFF OFF ON ON OFF ON 2.9
8.25 29700 131 11.9 42700 188 14.7 53000 233 ON ON OFF ON OFF ON 3.0
8.35 30100 132 12.0 43400 191 15.1 54300 239 OFF ON OFF ON OFF ON 3.1
8.45 30400 134 12.2 43900 194 15.4 55600 245 ON OFF
OFF ON OFF ON 3.2
8.53 30700 135 12.4 44500 196 15.8 56800 250 OFF OFF OFF ON OFF ON 3.3
8.61 31000 137 12.5 45000 198 16.1 58000 255 ON ON ON OFF OFF ON 3.4
8.68 31300 138 12.6 45500 200 16.4 59100 260 OFF ON ON OFF OFF ON 3.5
8.74 31500 139 12.7 45900 202 16.7 60200 265 ON OFF ON OFF OFF ON 3.6
8.80 31700 140 12.9 46300 204 17.0 61200 269 OFF OFF ON OFF OFF ON 3.7
8.85 31900 140 13.0 46700 206 17.3 62100 274 ON ON OFF OFF OFF ON 3.8
8.90 32000 141 13.1 47000 207 17.5 63000 278 OFF ON OFF OFF OFF ON 3.9
8.93 32200 142 13.1 47300 208 17.8 63900 281 ON OFF OFF OFF OFF ON 4.0
8.97 32300 142 13.2 47600 210 18.0 64700 285 OFF OFF OFF OFF OFF ON 4.1
9.00 32400 143 13.3 47800 211 18.2 65500 218 ON ON ON ON ON OFF 4.2
9.03 32500 143 13.4 48100 212 18.4 66200 292 OFF ON ON ON ON OFF 4.3
9.05 32600 144 13.4 48300 213 18.6 66900 295 ON OFF ON ON ON OFF 4.4
9.07 32600 144 13.5 48500 214 18.8 67600 297 OFF OFF ON ON ON OFF 4.5
9.09 32700 144 13.5 48700 214 18.9 68200 300 ON ON OFF ON ON OFF 4.6
9.10 32800 144 13.6 48800 215 19.1 68700 303 OFF ON OFF ON ON OFF 4.7
9.12 32800 145 13.6 49000 216 19.2 69200 305 ON OFF OFF ON ON OFF 4.8
9.13 32900 145 13.7 49200 217 19.4 69700 307 OFF OFF OFF ON ON OFF 4.9
9.15 32900 145 13.7 49300 217 19.5 70200 309 ON ON ON OFF ON OFF 5.0
9.16 33000 145 13.7 49500 218 19.6 70600 311 OFF ON ON OFF ON OFF 5.1
9.18 33000 146 13.8 49600 219 19.7 70900 312 ON OFF ON OFF ON OFF 5.2
9.19 33100 146 13.8 49800 219 19.8 71300 314 OFF OFF ON OFF ON OFF 5.3
9.21 33200 146 13.9 49900 220 19.9 71600 315 ON ON OFF OFF ON OFF 5.4
9.23 33200 146 13.9 50100 221 20.0 71900 316 OFF ON OFF OFF ON OFF 5.5
9.25 33300 147 14.0 50200 221 20.0 72100 317 ON OFF OFF OFF ON OFF 5.6
9.28 33400 147 14.0 50400 222 20.1 72300 318 OFF OFF
OFF OFF ON OFF 5.7
9.31 33500 148 14.1 50600 223 20.1 72500 319 ON ON ON ON OFF OFF 5.8
9.34 33600 148 14.1 50800 224 20.2 72600 320 OFF ON ON ON OFF OFF 5.9
9.38 33800 149 14.2 51000 225 20.2 72700 320 ON OFF ON ON OFF OFF 6.0
Accuracy: Greatest of either ±5% of controlled ow rate or ±2% of maximum ow rate.
