FlowCon SM.3.0 User Manual

FlowCon SM 50-150mm DYNAMIC SELF BALANCING
CONTROL VALVE
1A95105 - 08/2016
FlowCon International assumes no responsibility
for mistakes, if any, in any printed material.
Denmark Dubai USA Singapore www.owcon.com
- 8 -

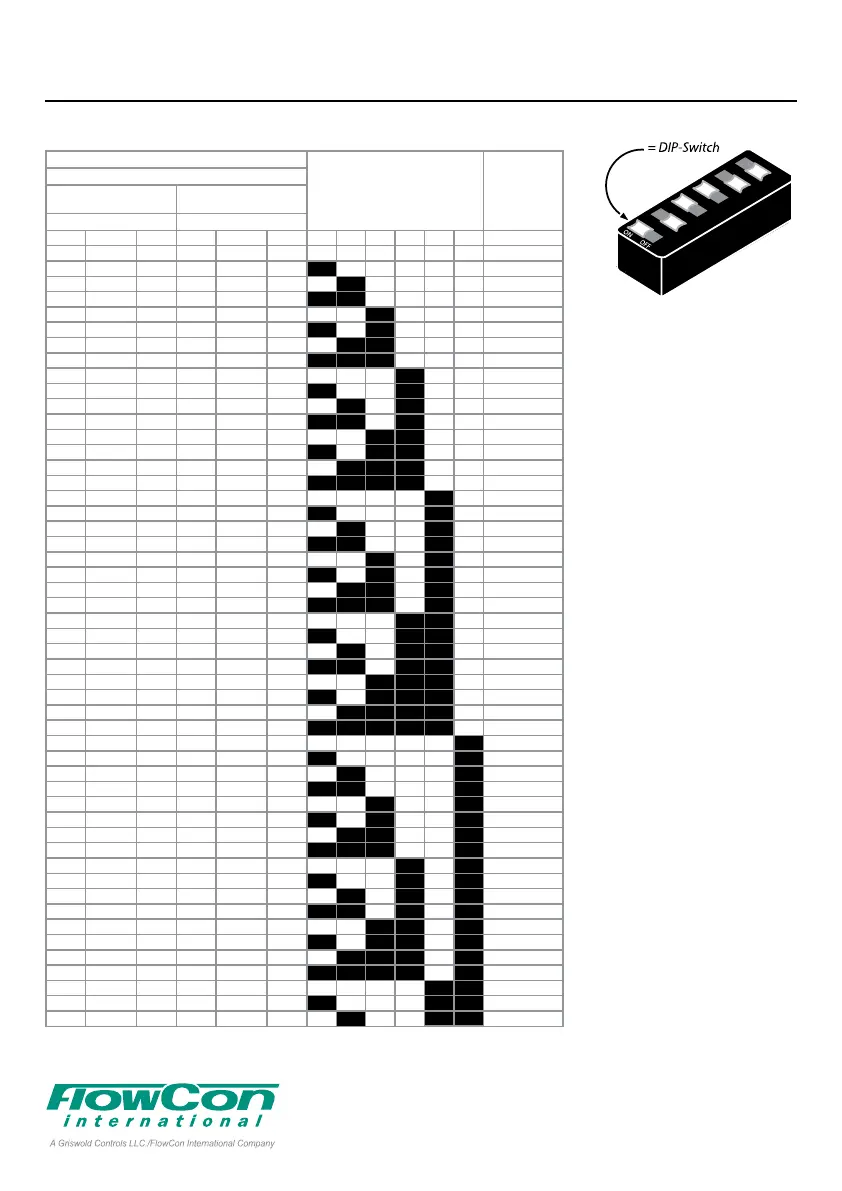

Maximum ow rate limitation DIP switch settings, SM5
Example illustrated above:
ON-OFF-ON-ON-OFF-OFF
which gives:
SM.3.1
(page 6) - 7.15 l/sec
SM.4.2 (page 7) - 14.2 l/sec
SM.5.2 - 29.5 l/sec.
(rotation 6.0)
Maximum Flow Rate
Maximum Flow Rate
DIP Switch Settings
Stem
Rotations
From Closed
Valve size: DN125 and DN150 · 5”-6”
30-600 kPaD
4.5-87 psid
35-600 kPaD
5.1-87 psid
SM.5.1 SM.5.2
l/sec l/hr GPM l/sec l/hr GPM 1 2 3 4 5 6 Rotations
6.48 23300 103 7.10 25600 113 ON ON ON ON ON ON 1.0
7.24 26100 115 8.06 29000 128 OFF ON ON ON ON ON 1.1
7.98 28700 127 8.98 32300 142 ON OFF ON ON ON ON 1.2
8.69 31300 138 9.87 35500 157 OFF OFF ON ON ON ON 1.3
9.39 33800 149 10.7 38600 170 ON ON OFF ON ON ON 1.4
10.1 36200 160 11.6 41600 183 OFF ON OFF ON ON ON 1.5
10.7 38600 170 12.4 44500 196 ON OFF OFF ON ON ON 1.6
11.4 40900 180 13.1 47300 208 OFF OFF OFF ON ON ON 1.7
12.0 43100 190 13.9 50000 220 ON ON ON OFF ON ON 1.8
12.6 45200 199 14.6 52600 232 OFF ON ON OFF ON ON 1.9
13.1 47300 208 15.3 55100 243 ON OFF ON OFF ON ON 2.0
13.7 49300 217 16.0 57500 253 OFF OFF ON OFF ON ON 2.1
14.2 51200 226 16.6 59800 264 ON ON OFF OFF ON ON 2.2
14.7 53100 234 17.2 62100 274 OFF ON OFF OFF ON ON 2.3
15.3 54900 242 17.8 64200 283 ON OFF OFF OFF ON ON 2.4
15.7 56600 250 18.4 66300 292 OFF OFF OFF OFF ON ON 2.5
16.2 58300 257 19.0 68300 301 ON ON ON ON OFF ON 2.6
16.6 59900 264 19.5 70200 309 OFF ON ON ON OFF ON 2.7
17.1 61500 271 20.0 72100 317 ON OFF ON ON OFF ON 2.8
17.5 63000 277 20.5 73800 325 OFF OFF ON ON OFF ON 2.9
17.9 64400 284 21.0 75500 333 ON ON OFF ON OFF ON 3.0
18.3 65800 290 21.4 77200 340 OFF ON OFF ON OFF ON 3.1
18.6 67100 295 21.9 78700 347 ON OFF OFF ON OFF ON 3.2
19.0 68300 301 22.3 80200 353 OFF OFF OFF ON OFF ON 3.3
19.3 69500 306 22.7 81700 360 ON ON ON OFF OFF ON 3.4
19.6 70700 311 23.1 83100 366 OFF ON ON OFF OFF ON 3.5
19.9 71700 316 23.4 84400 372 ON OFF ON OFF OFF ON 3.6
20.2 72800 321 23.8 85700 377 OFF OFF ON OFF OFF ON 3.7
20.5 73800 325 24.1 86900 383 ON
ON OFF OFF OFF ON 3.8
20.7 74700 329 24.5 88100 388 OFF ON OFF OFF OFF ON 3.9
21.0 75600 333 24.8 89200 393 ON OFF OFF OFF OFF ON 4.0
21.2 76400 337 25.1 90300 398 OFF OFF OFF OFF OFF ON 4.1
21.4 77200 340 25.4 91400 403 ON ON ON ON ON OFF 4.2
21.6 77900 343 25.7 92400 407 OFF ON ON ON ON OFF 4.3
21.8 78600 346 25.9 93400 411 ON OFF ON ON ON OFF 4.4
22.0 79200 349 26.2 94300 415 OFF OFF ON ON ON OFF 4.5
22.2 79800 352 26.5 95200 420 ON ON OFF ON ON OFF 4.6
22.3 80300 354 26.7 96100 423 OFF ON OFF ON ON OFF 4.7
22.5 80800 356 26.9 97000 427 ON OFF OFF ON ON OFF 4.8
22.6 81300 358 27.2 97800 431 OFF OFF OFF ON ON OFF 4.9
22.7 81700 360 27.4 98600 435 ON ON ON OFF ON OFF 5.0
22.8 82100 362 27.6 99400 438 OFF ON ON OFF ON OFF 5.1
22.9 82400 363 27.8 100000 442 ON OFF ON OFF ON OFF 5.2
23.0 82700 364 28.1 101000 445 OFF OFF ON OFF ON OFF 5.3
23.0 83000 366 28.3 102000 448 ON ON OFF OFF ON OFF 5.4
23.1 83200 367 28.5 102000 452 OFF ON OFF OFF ON OFF 5.5
23.2 83400 367 28.7 103000 455 ON OFF OFF OFF ON OFF 5.6
23.2 83500 368 28.9 104000 458 OFF OFF OFF OFF ON OFF 5.7
23.2 83600 368 29.1 105000 461 ON ON ON ON OFF OFF 5.8
23.3 83700 369 29.3 105000 465 OFF ON ON ON OFF OFF 5.9
23.3 83800 369 29.5 106000 468 ON OFF ON ON OFF OFF 6.0
Accuracy: Greatest of either ±5% of controlled ow rate or ±2% of maximum ow rate.
