1 Instruction Manual
Introduction
The Safmag β-meter provides cost effective measurement of flowrate in
applications where mechanical flowmeters are traditionally utilized. The design
concept has focused on simplicity, whilst retaining all benefits associated with the
use of an electromagnetic flowmeter.
The β-meter comprises a flowtube sensor and a display unit which is mounted
remote from the sensor. The display unit utilises a high speed 16 bit
microprocessor with 32 Kbyte flash memory. The flow total and flow rate are
displayed on a LCD display.
Theory of Operation

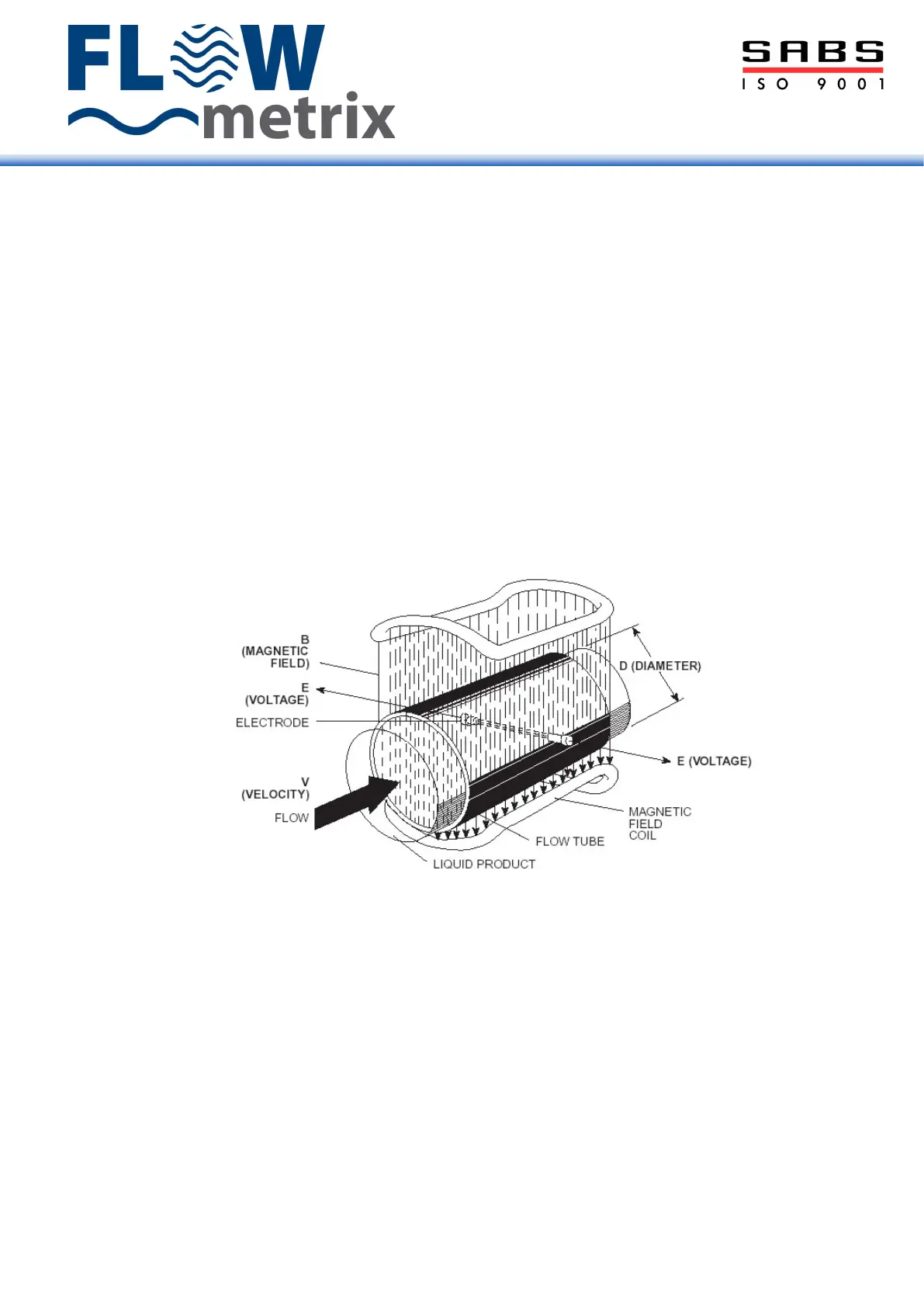

The operation of an electromagnetic flowmeter is explained by reference to Faraday’s law of
electromagnetic induction. This law states that the voltage induced across an electrical
conductor, as it moves at right angles through an electromagnetic field, is directly proportional
to the velocity of that conductor through the field. Mathematically this statement is
represented as shown below:
E = constant x B L V
Where: E = the induced voltage
B = the electromagnetic field strength
L = the length of the conductor in the field
V = the velocity of the conductor (average velocity of the medium)
The volumetric flow of a conducting liquid or slurry is derived as follows:
Let L = D (the diameter of the meter)
Then E = constant x B D V
Volumetric flow Q = V A (where A is the Cross-sectional area of the pipe)
Combining the above equations it is seen that if field strength is held constant then
E = K.Q (where K is a constant), thus the induced voltage is directly proportional
to the volumetric flowrate.
