Install pump backplate

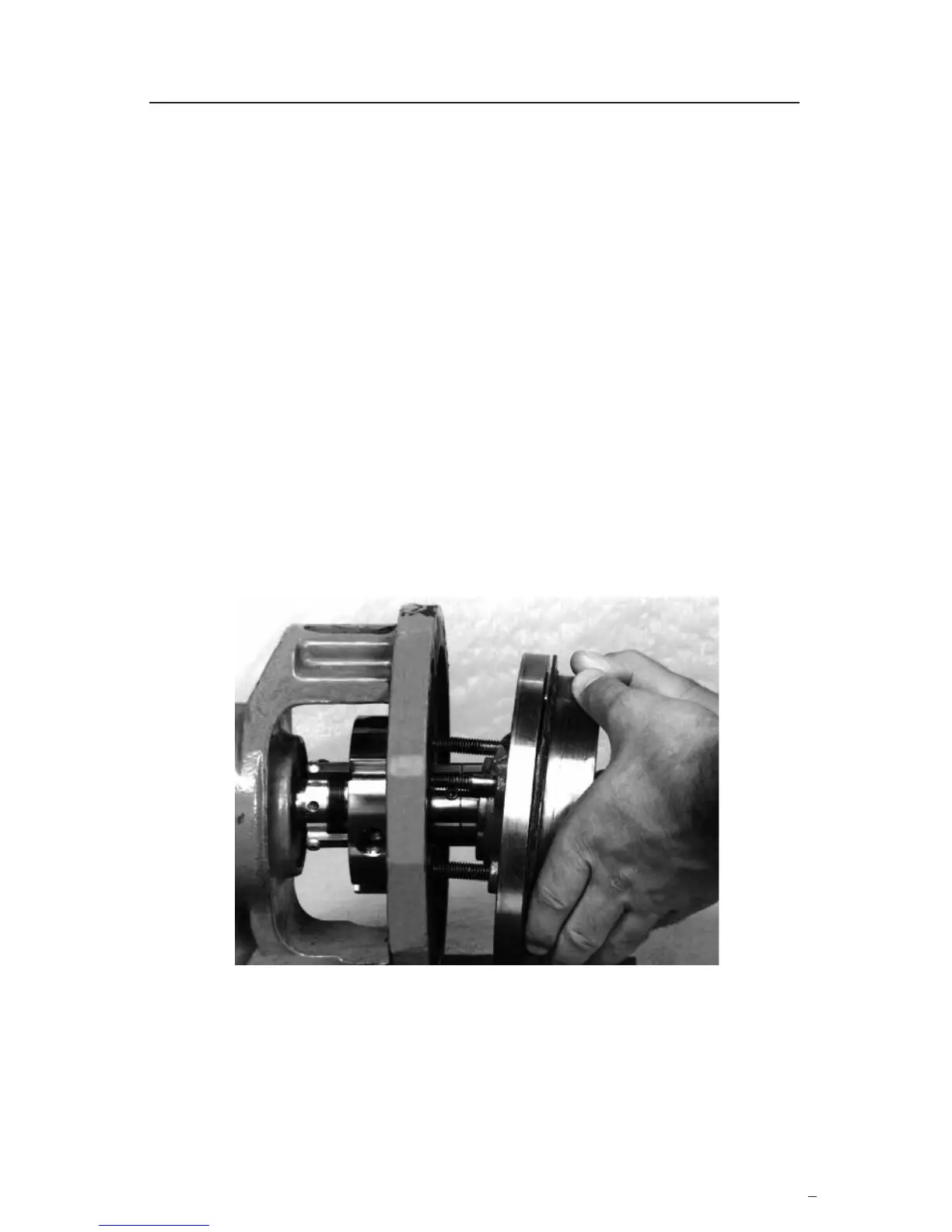

Figure 3
2 P-200 Seal Installation
Tools needed:
• Open-end wrench for gland nuts
• Allen wrenches provided
• Silicone lubricant provided
2.1 Lubricate the shaftorsleeveODlightlywiththesiliconelubricant
provided and slide the complete P-200 cartridge seal onto the
shaft, with the end with the setting devices toward the bearing
housing.
2.2 Install pump back plate (sealchamber/stufngbox),Figure3.
Position the P-200 seal gland ush connection, port a in Figure 4,
in the 3 o’clock position for normal installations with CW rotation
(9o'clockforCCWrotation)foroptimumheatremoval.Alternate
positioning of the gland may be necessary with some pump designs
to permit seal piping to clear the bearing housing. Refer to the
assembly drawing that is supplied with the seal for proper position-
ing. Bolt the back plate in place on the bearing housing.
