Schmidt Armaturen
AI - FlowTop

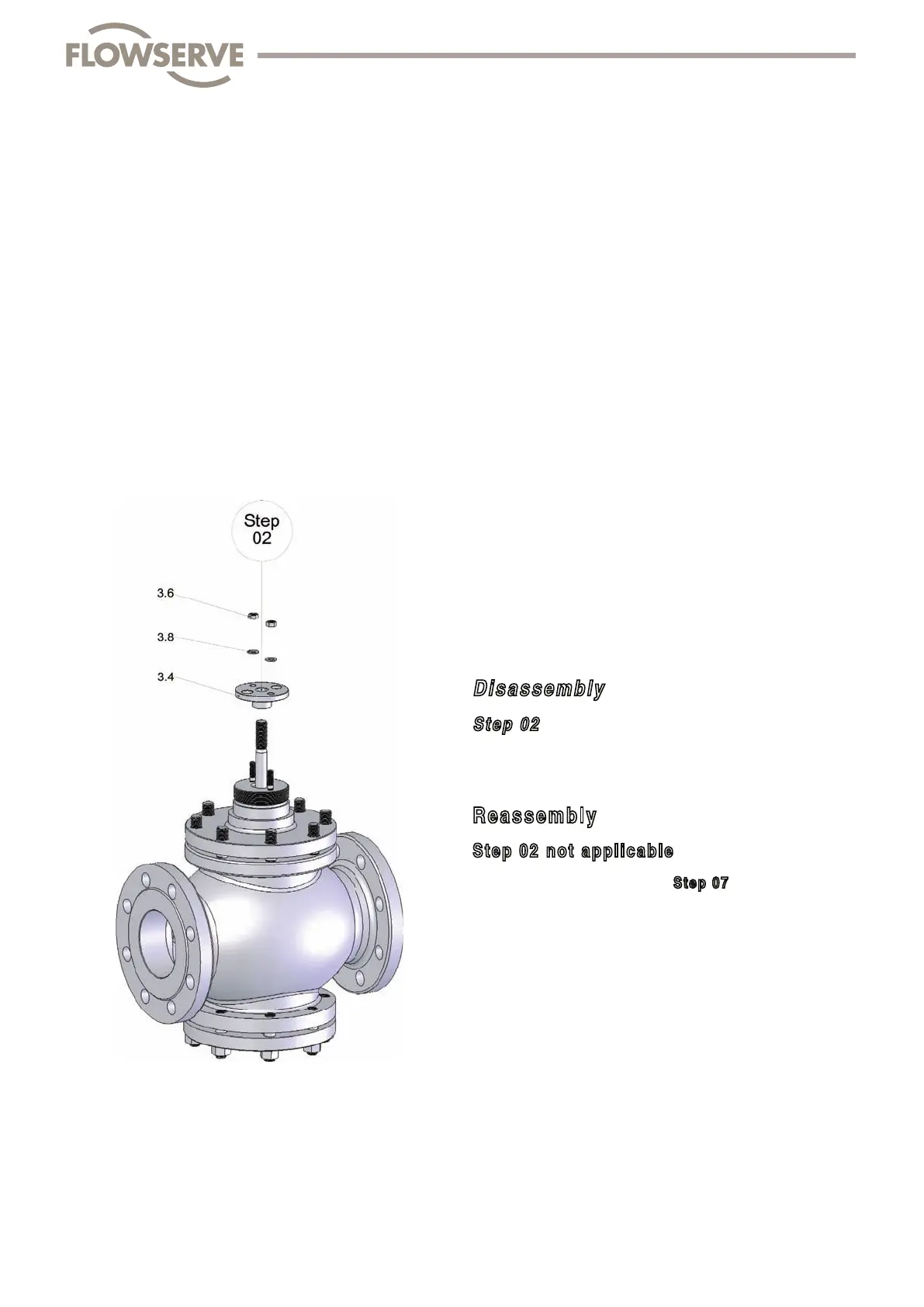

Disassembly
Step 02
• Unscrew hexagon nuts (3.6)
• Remove washer (3.8) and gland fl ange (3.4)
Reassembly
Step 02 not applicable
Reassembling the packing unit see Step 07
