Flowserve FlowTop V726 - Page 23

23
Schmidt Armaturen
AI - FlowTop
Distributing Valve
SPM - Code : V7xx WxVNA . . . VOTP2LG

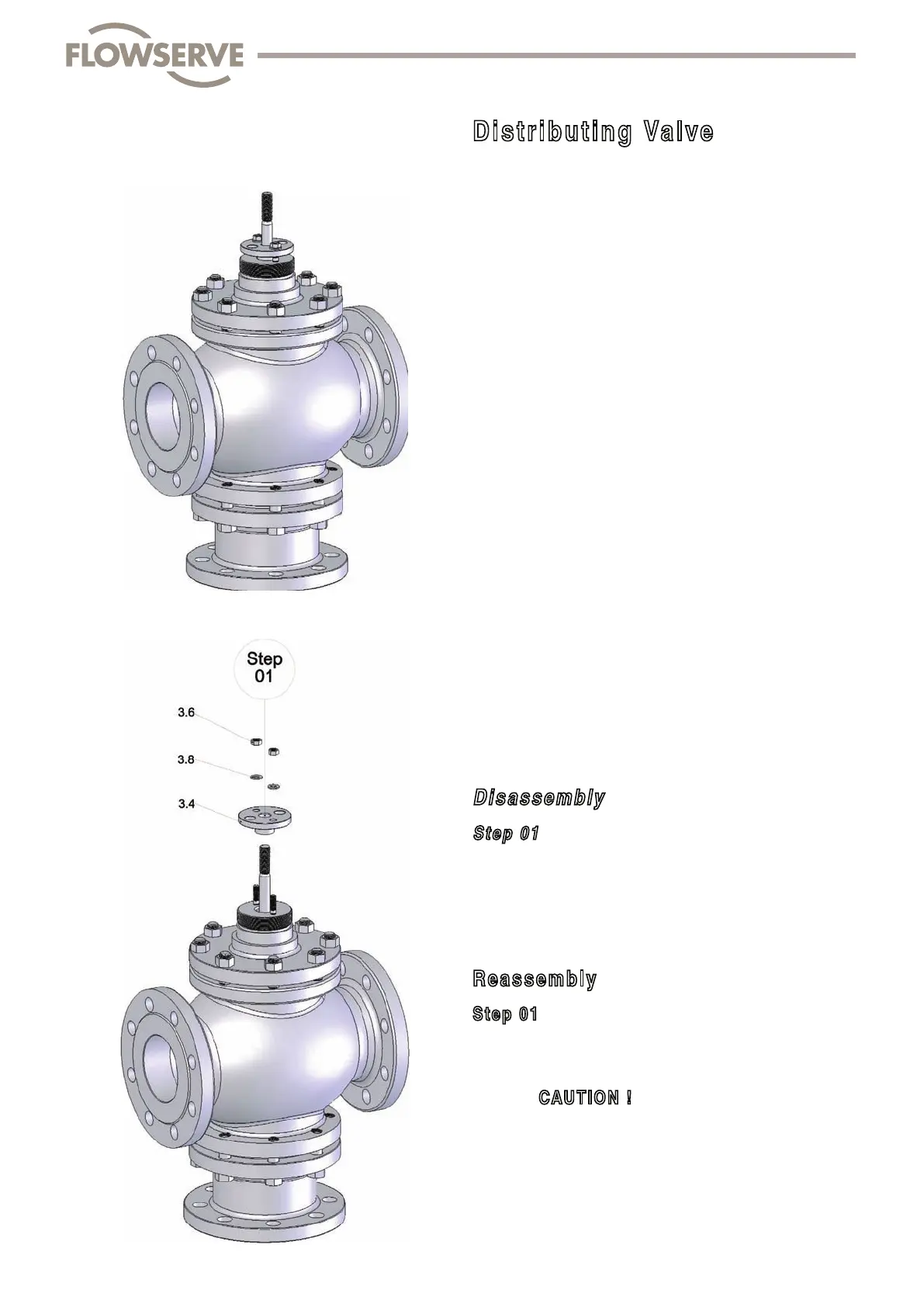

Disassembly
Step 01
• Unscrew hexagon nuts (3.6)
• Remove washer (3.8) and gland fl ange (3.4)
Reassembly
Step 01
• Tighten the hexagon nuts of the gland (3.6)
using the torque wrench
CAUTION !
Tightening moment of the hexagon nuts (3.6)
as per variant drawing (Page 61 - 63)
