AI - FlowTop
Trim Type
Data Field 3

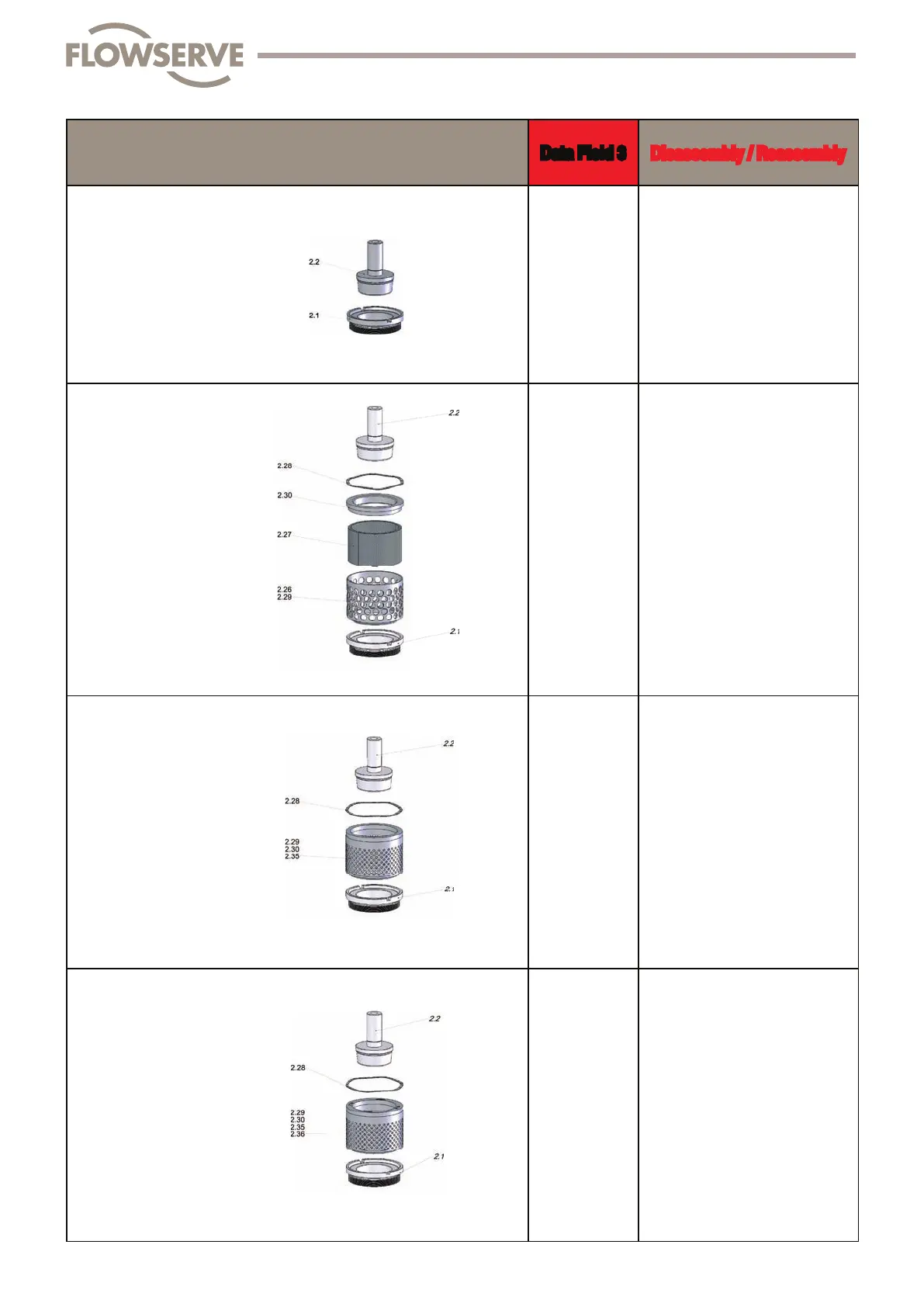

Disassembly / Reassembly
Standard Parabolic Plug
PONx1xx
PODx1xx
POKx1xx
POWx1xx
POHx1xx
Disassembly / Reassembly
2.1 Screwed seat
2.2 Plug
as described !
SilentPack PKxx1xx
Disassembly / Reassembly
2.1 Screwed seat
2.2 Plug
as described, additionally
however
2.29 Internal ring
2.26 Perforated cage
2.27 Wire netting
2.30 Space bush
2.28 Pressure spring
insert in the sequence shown !
XStream
PCxx1xx
PDxx1xx
Disassembly / Reassembly
2.1 Screwed seat
2.2 Plug
as described, additionally
however
2.29 Internal ring
2.30 Space bush
2.35 Perforated cage 1
2.28 Pressure spring
insert in the sequence shown !
XStream
PExx1xx
PFxx1xx
Disassembly / Reassembly
2.1 Screwed seat
2.2 Plug
as described, additionally
however
2.29 Internal ring
2.30 Space bush
2.35 Perforated cage 1
2.36 Perforated cage 2
2.28 Pressure spring
insert in the sequence shown !
