Schmidt Armaturen
AI - FlowTop
Disassembly

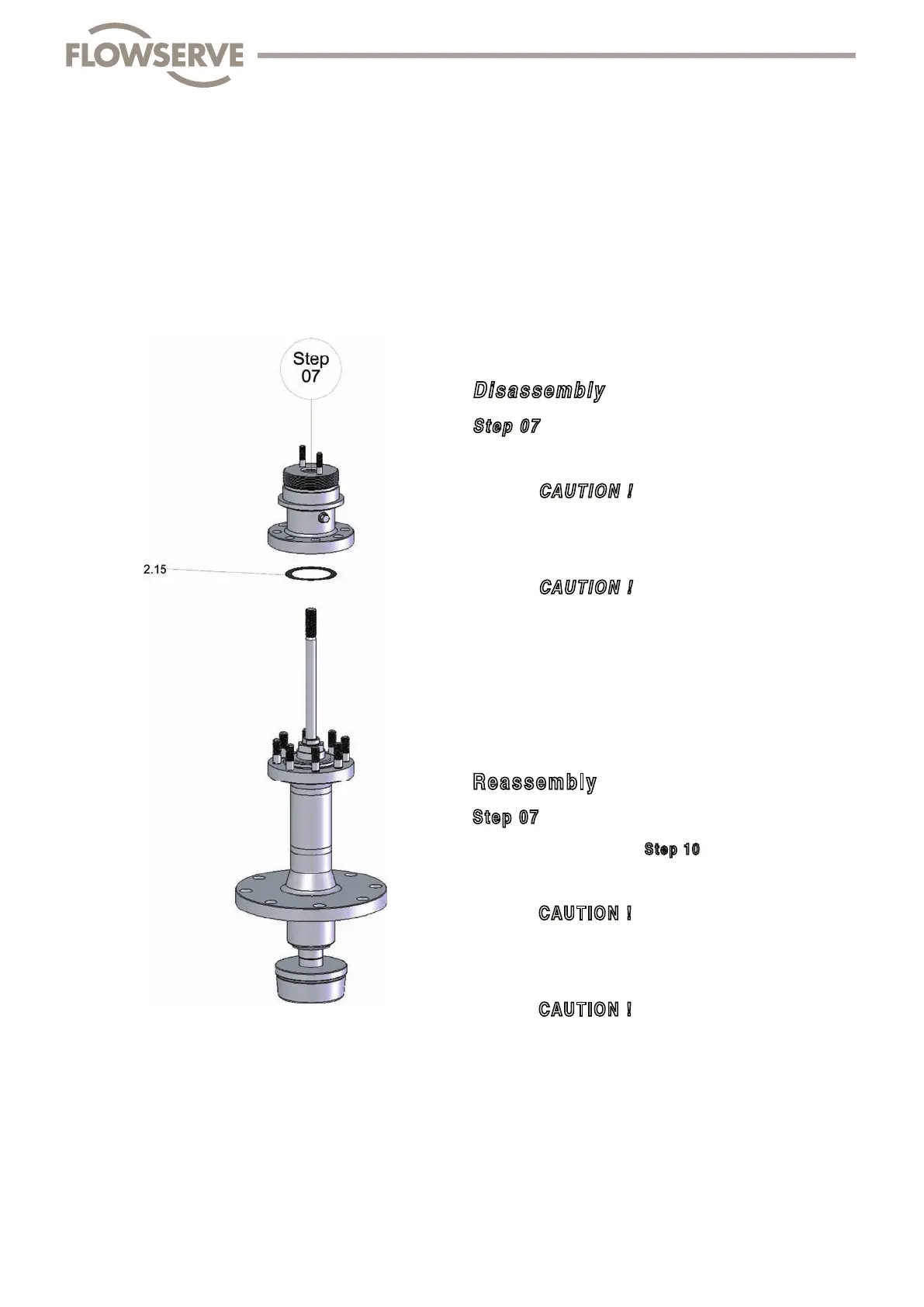

Step 07
• Remove head piece
CAU TION !
Ensure it hangs vertically !
• Remove gasket (2.15)
CAU TION !
Remove remains of gasket (2.15) in the body
and on the head piece.
Do not damage sealing surface !
Reassembly
Step 07
After work step "Reassembly" Step 10
• Insert gasket (2.15)
CAUTI ON !
Use new gasket (2.15) !
• Put head piece in place
CAUTI ON !
Ensure it hangs vertically !
