Flowserve FlowTop V726 - Page 61

61
Schmidt Armaturen
AI - FlowTop

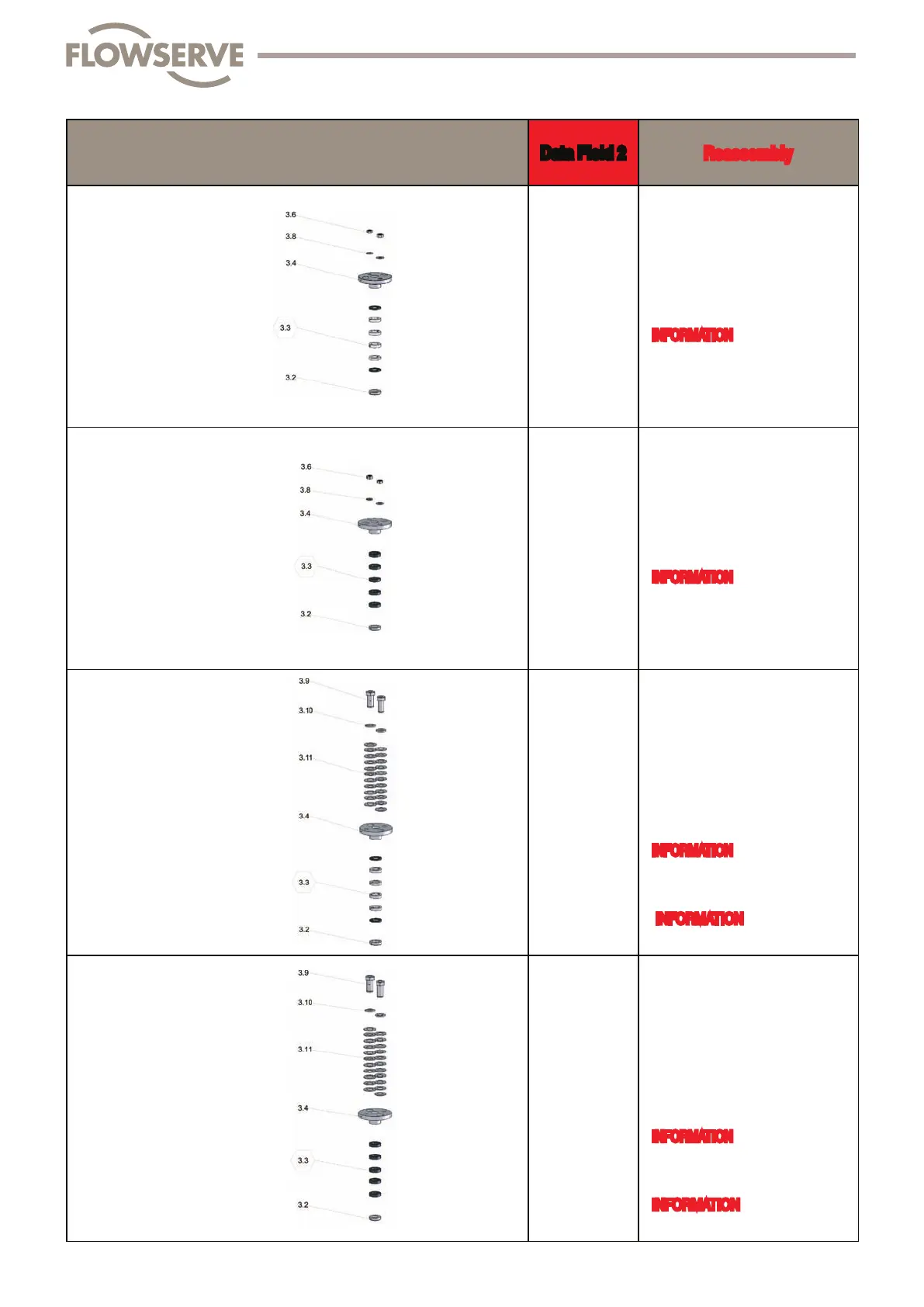

Packing Type
Data Field 2
Reassembly
Te on Packing
V7xx xxxxA
3.2 Bottom ring
3.3 Packing
3.4 Gland  ange
3.8 Washers
3.6 Hexagon nuts
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
Table 05 Page 65
Graphite Packing
V7xx xxxxB
3.2 Bottom ring
3.3 Packing
3.4 Gland  ange
3.8 Washers
3.6 Hexagon nuts
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
Table 05 Page 65
Te on Packing
spring loaded
V7xx xxxxN
3.2 Bottom ring
3.3 Packing
3.4 Gland  ange
3.11 Belleville spring
3.10 Washers
3.9 Hexagon nuts
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
INFORMATION Page 63
Graphite Packing
spring loaded
V7xx xxxxO
3.2 Bottom ring
3.3 Packing
3.4 Gland  ange
3.11 Belleville spring
3.10 Washers
3.9 Hexagon nuts
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for gland
nuts (3.6) as per
INFORMATION Page 63
