Flowserve FlowTop V726 - Page 62

62
Schmidt Armaturen
AI - FlowTop

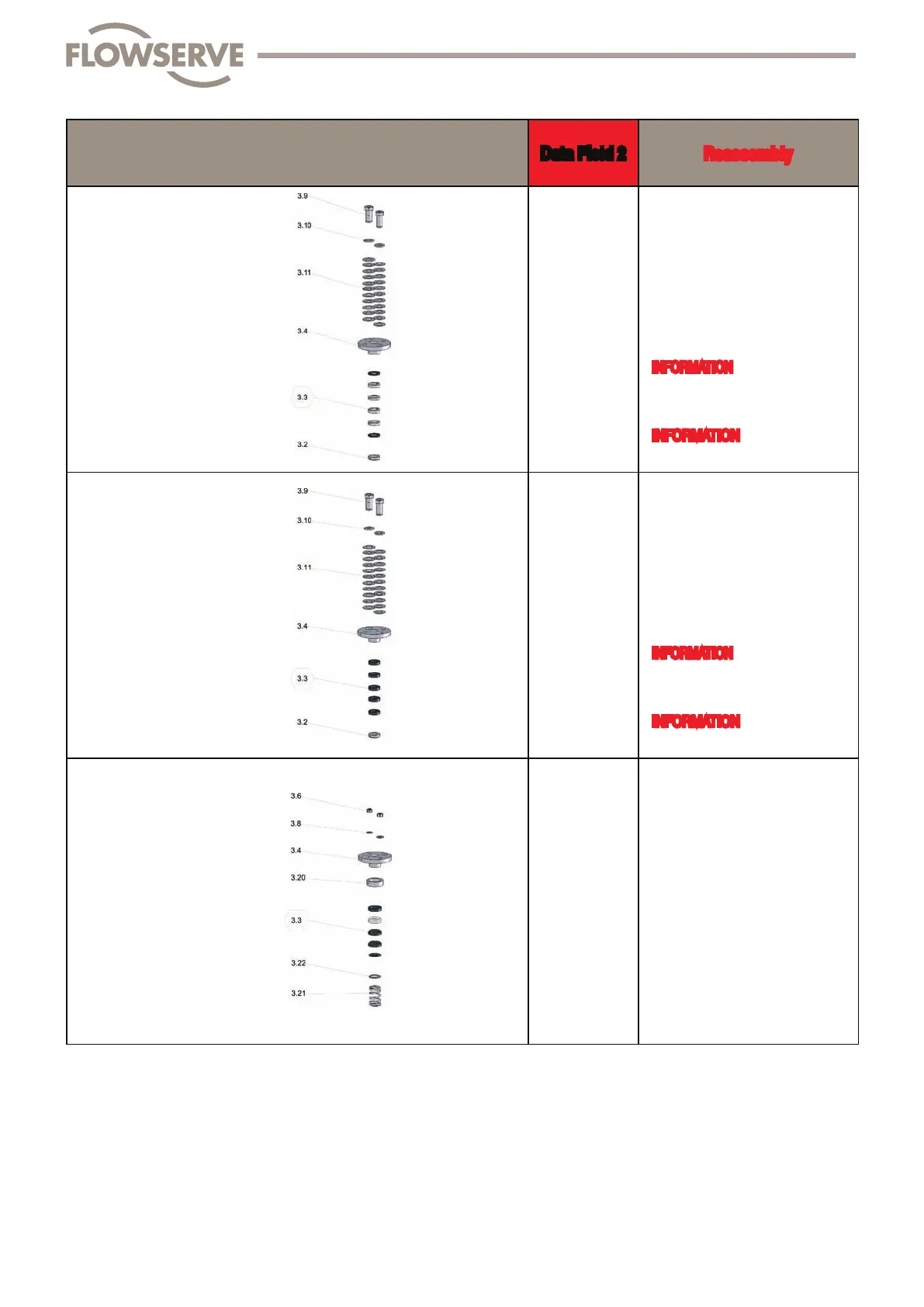

Packing Type
Data Field 2
Reassembly
Te on Packing
“TA-Luft”
V7xx xxxxQ
3.2 Bottom ring
3.3 Packing
3.4 Gland  ange
3.11 Belleville spring
3.10 Washers
3.9 Hexagon nuts
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
INFORMATION Page 63
Graphite Packing
“TA-Luft”
V7xx xxxxV
3.2 Bottom ring
3.3 Packing
3.4 Gland  ange
3.11 Belleville spring
3.10 Washers
3.9 Hexagon nuts
in sequence shown, follow
INFORMATION on page 63 !
Tightening moments for
gland nuts (3.6) as per
INFORMATION Page 63
Te on
V-Ring Packing
V7xx xxxxS
3.21 Compression spring
3.22 Disc
3.3 Packing
3.20 Space bush
3.4 Gland  ange
3.8 Washers
3.6 Hexagon nuts
insert in the sequence shown.
Tighten gland nuts (3.6) to lock.
