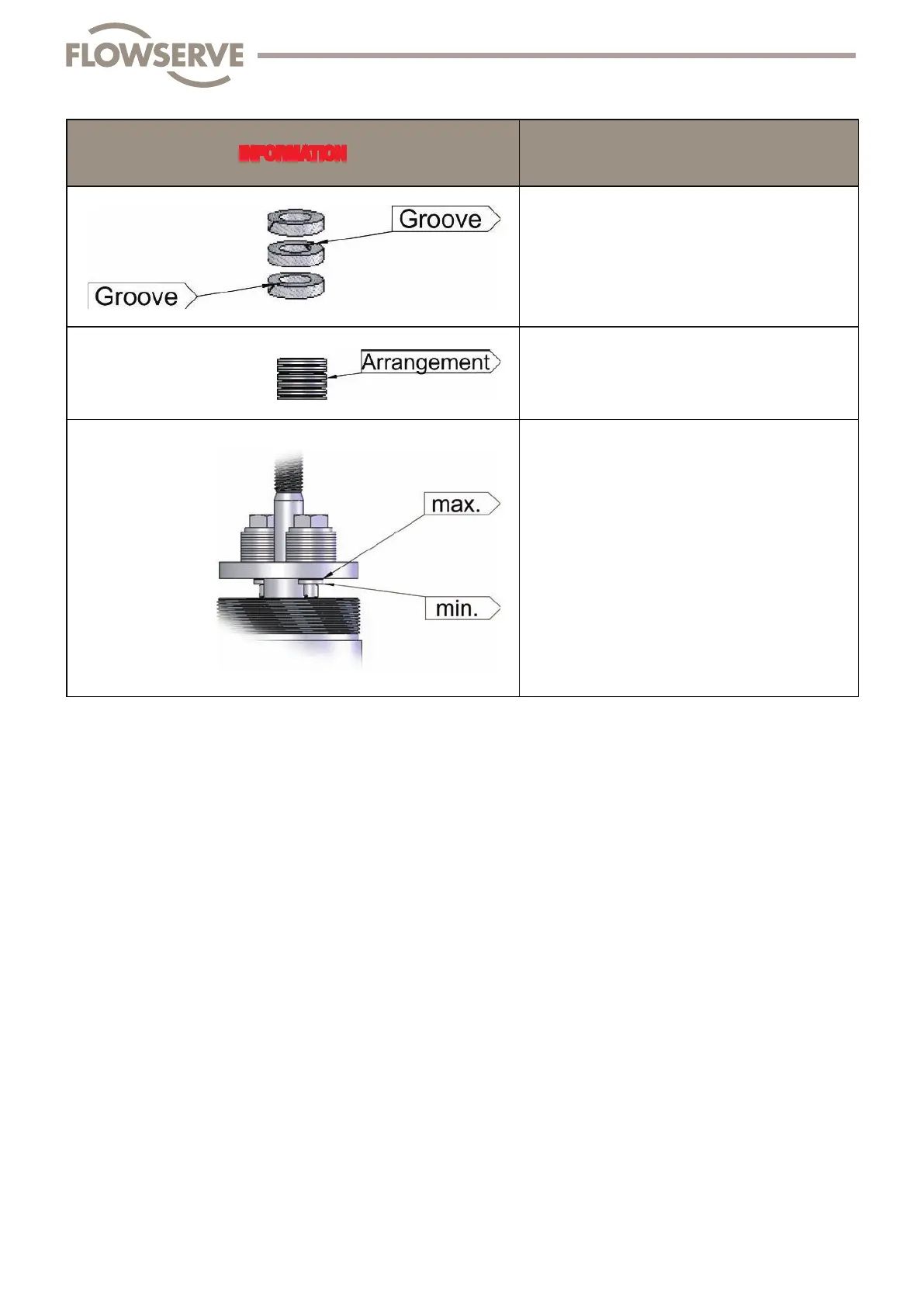

INFORMATION Comment
"Packing"
Always  t packing / rings (3.3)
at a 180 ° o set !
"Belleville Springs"
Layer belleville springs (3.11) as shown !
"Spring Loaded Packing"
Always tighten the gland nuts (3.9) as far as
the mark (channel = max. ≈ 2.5 mm
projecting length) tighten evenly in diagonally
opposite sequence!
