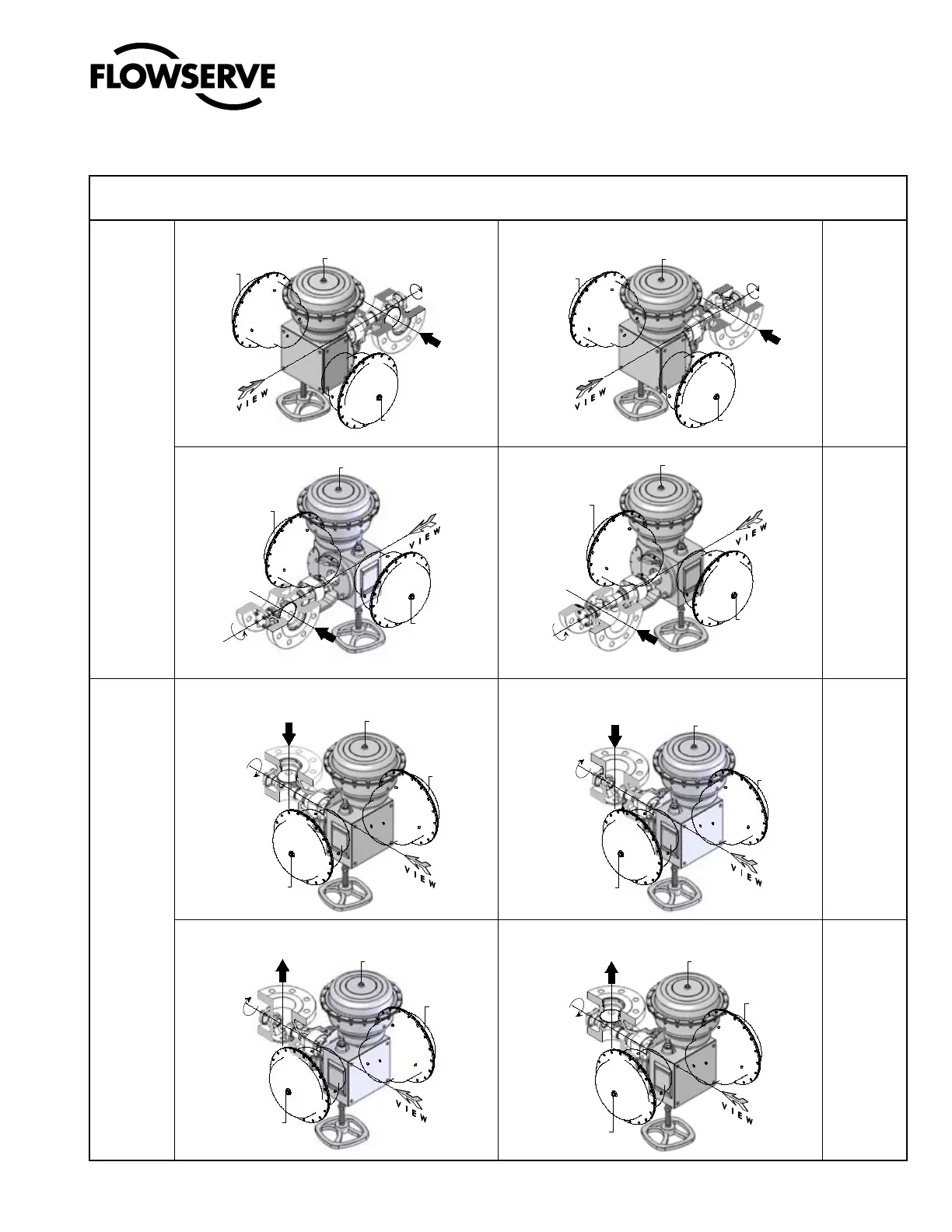

11. PIPELINE MOUNTING ORIENTATIONS – AIR-TO-OPEN CONFIGURATION - DIAPHRAGM ACTUATOR
AIR-TO-OPEN, FAIL CLOSE CONFIGURATION
SHAFT DOWNSTREAM SHAFT UPSTREAM
HORIZONTAL FLOW
LEFT
RIGHT
FLOW
AIR TO OPEN
TOP
LEFT
RIGHT
TOP
AIR TO OPEN
FLOW
LEFT HAND PIPE MOUNTING
RIGHT
LEFT
AIR TO OPEN
TOP
FLOW
LEFT
RIGHT
AIR TO OPEN
TOP
FLOW
RIGHT HAND PIPE MOUNTING
VERTICAL FLOW
LEFT
RIGHT
AIR TO OPEN
TOP
FLOW
LEFT
RIGHT
AIR TO OPEN
TOP
FLOW
FLOW DOWN
LEFT
RIGHT
AIR TO OPEN
TOP
FLOW
LEFT
RIGHT
AIR TO OPEN
TOP
FLOW
FLOW UP
