User instructions - MaxFlo 3 - VLENIM0052-02 02.07
13

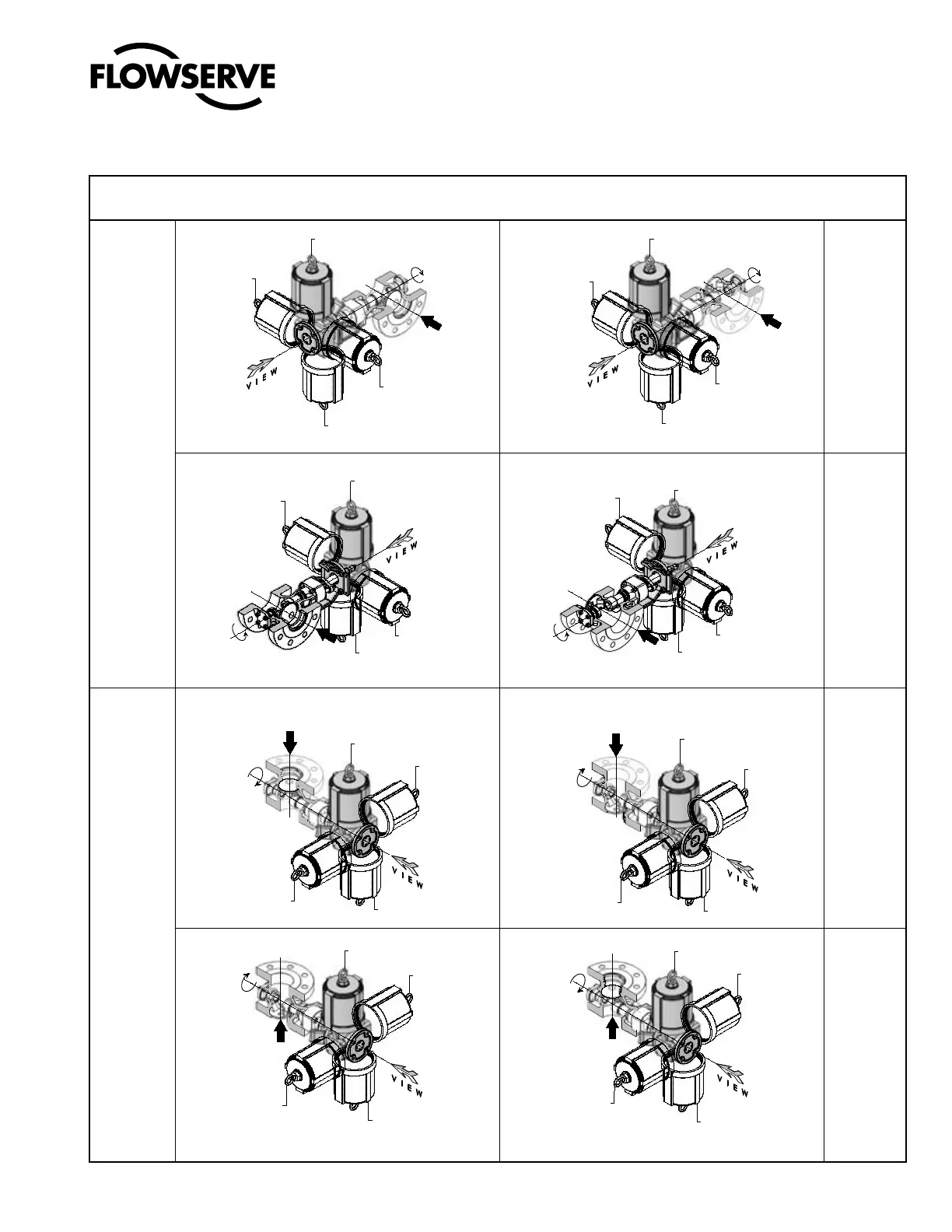

13: PIPELINE MOUNTING ORIENTATIONS – AIR-TO-OPEN CONFIGURATION - CYLINDER ACTUATOR
AIR-TO-OPEN, FAIL CLOSE CONFIGURATION
SHAFT DOWNSTREAM SHAFT UPSTREAM
HORIZONTAL FLOW
BOTTOM
LEFT
RIGHT
FLOW
AIR TO OPEN
TOP
LEFT
RIGHT
BOTTOM
TOP
AIR TO OPEN
FLOW
LEFT HAND PIPE MOUNTING
RIGHT
BOTTOM
LEFT
AIR TO OPEN
TOP
FLOW
RIGHT
BOTTOM
LEFT
AIR TO OPEN
TOP
FLOW
RIGHT HAND PIPE MOUNTING
VERTICAL FLOW
BOTTOM
LEFT
RIGHT
AIR TO OPEN
TOP
FLOW
BOTTOM
LEFT
RIGHT
AIR TO OPEN
TOP
FLOW
FLOW DOWN
RIGHT
LEFT
BOTTOM
AIR TO OPEN
TOP
FLOW
FLOW
BOTTOM
LEFT
RIGHT
AIR TO OPEN
TOP
FLOW
FLOW UP
