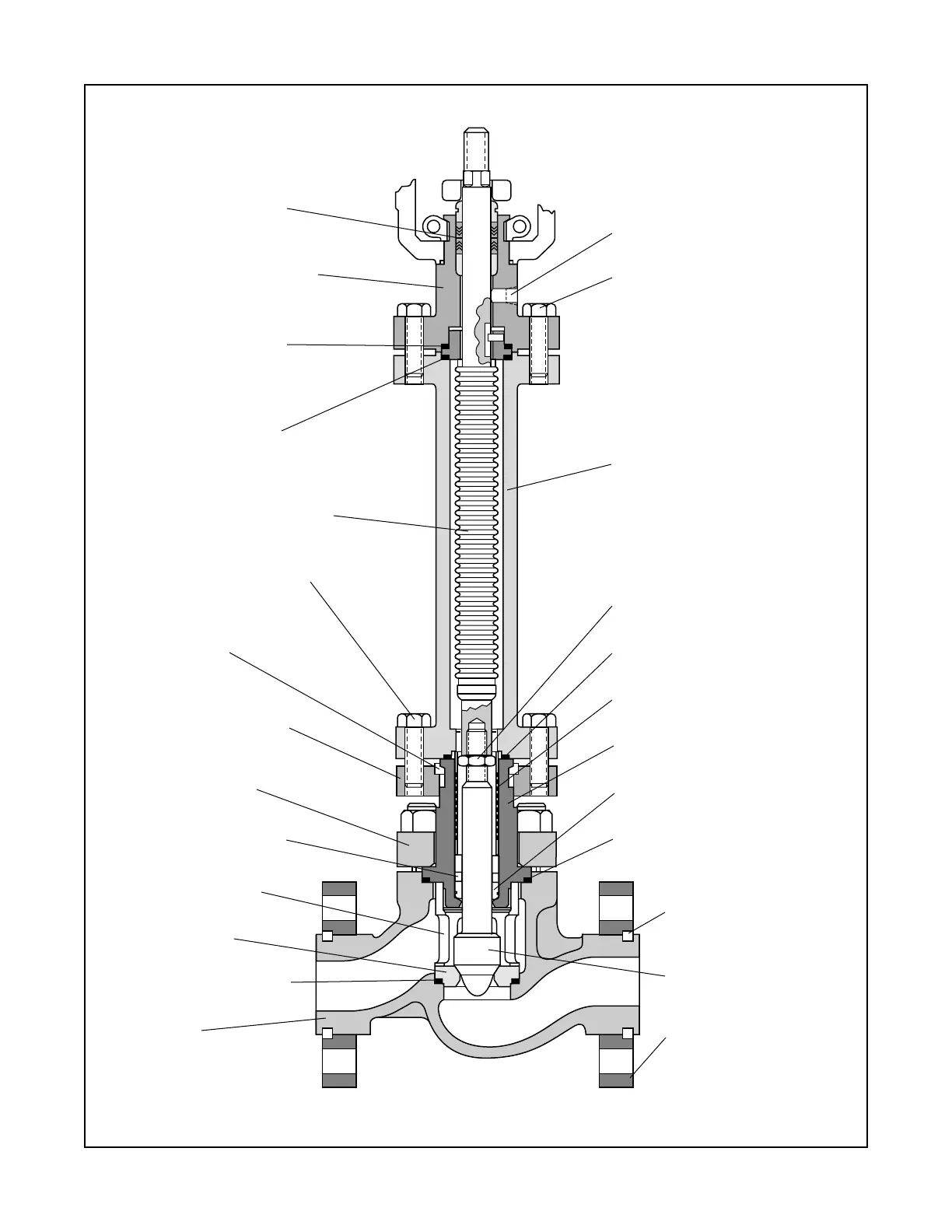

Figure 4: Formed Metal Bellows Seal with Separable Flange Design
Note: Item numbers correspond directly to the valve's bill of material. Refer to bill of material for specific numbers.
Packing Spacers
(Item No. 93 - 99)
Bellows Seal Bonnet
(Item No. 7)
Upper Seal Ring
Gasket "B"
(Item No. 59)
Upper Seal Ring
Gasket "A"
(Item No. 59)
Bellows Seal Assembly
(Item No. 6)
Lower Housing Bolt
(Item No. 110)
Half Ring
(Item No. 13)
Lower Housing Flange
(Item No. 72)
Body Bolting
(Item No. 108, 114)
Packing Spacers
(Item No. 93 - 99)
Seat Retainer
(Item No. 30)
Seat Ring
(Item No. 20)
Seat Ring Gasket
(Item No. 55)
Body
(Item No. 1)
Tell-tale Tap
Upper Housing Bolt
(Item No. 106)
Bellows Seal Housing
(Item No. 5)
Stem Jam Nut
(Item No. 113)
Lower Housing Gasket
(Item No. 60)
Spring Guide Retainer
(Item No. 90)
Body Bonnet
(Item No. 40)
Lower Guide
(Item No. 82, 83)
Bonnet Gasket
(Item No. 58)
Half Ring
(Item No. 11)
Bellows Seal Plug
(Item No. 50)
End Flange
(Item No. 10)
