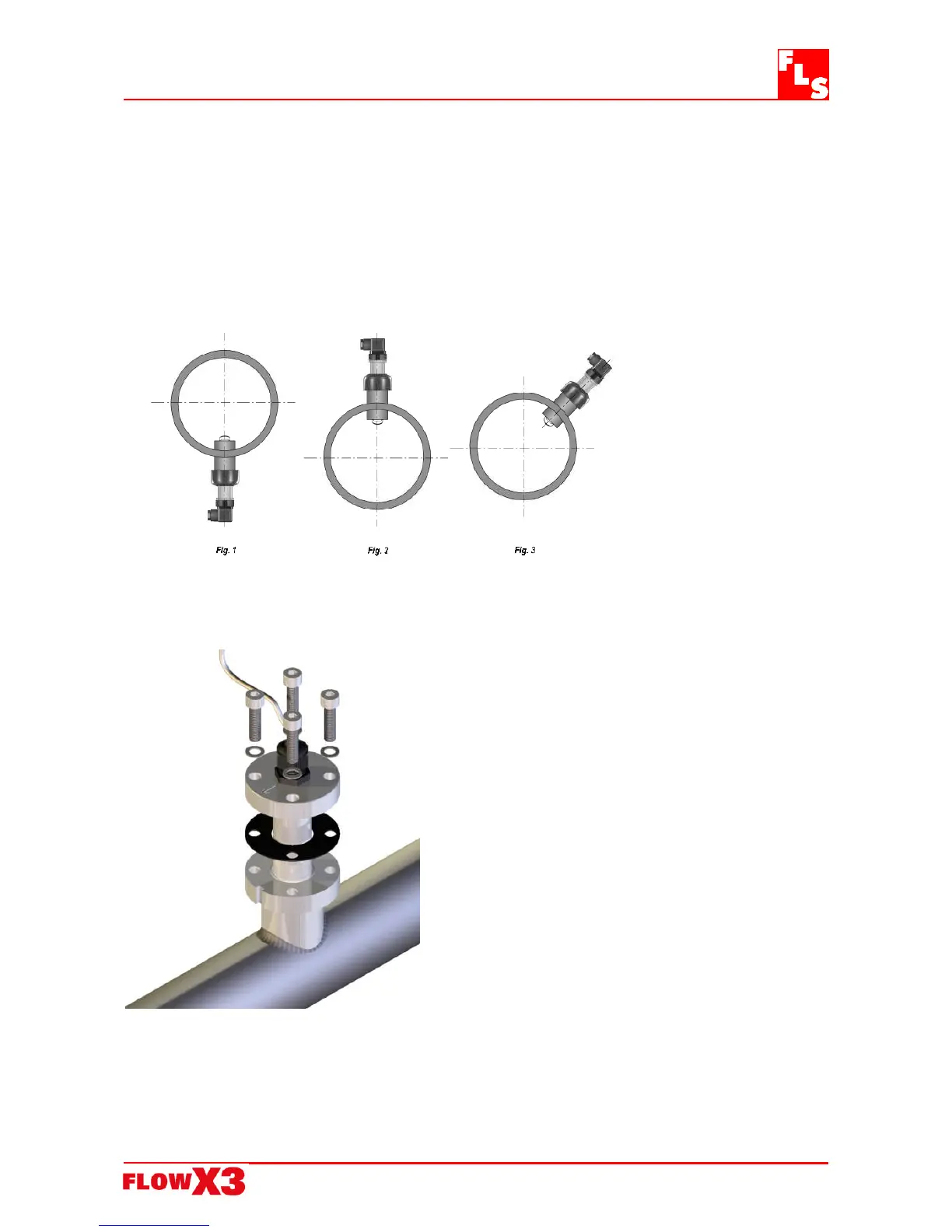

4.2. Mounting Position
Make sure the pipeline is always full.
Horizontal pipe runs:
Fig. 1: installation with no sediments present
Fig. 2: installation with no air bubbles present
Fig. 3: installation if sediments or air bubbles may be present
Vertical pipe runs:
Install sensor in any orientation. Upward flow is preferred to ensure full pipe.
4.3. Process Connection
1. Place the flat gasket, sensor, and the
screws with washers making sure that the
arrow is in line with the slot milling of the
weld on adapter
2. tighten the screws with a force equal to 15
Nm
