FLS FlowX3 series - Wiring

F3.2
0 Paddlewheel Flow Sensor
6

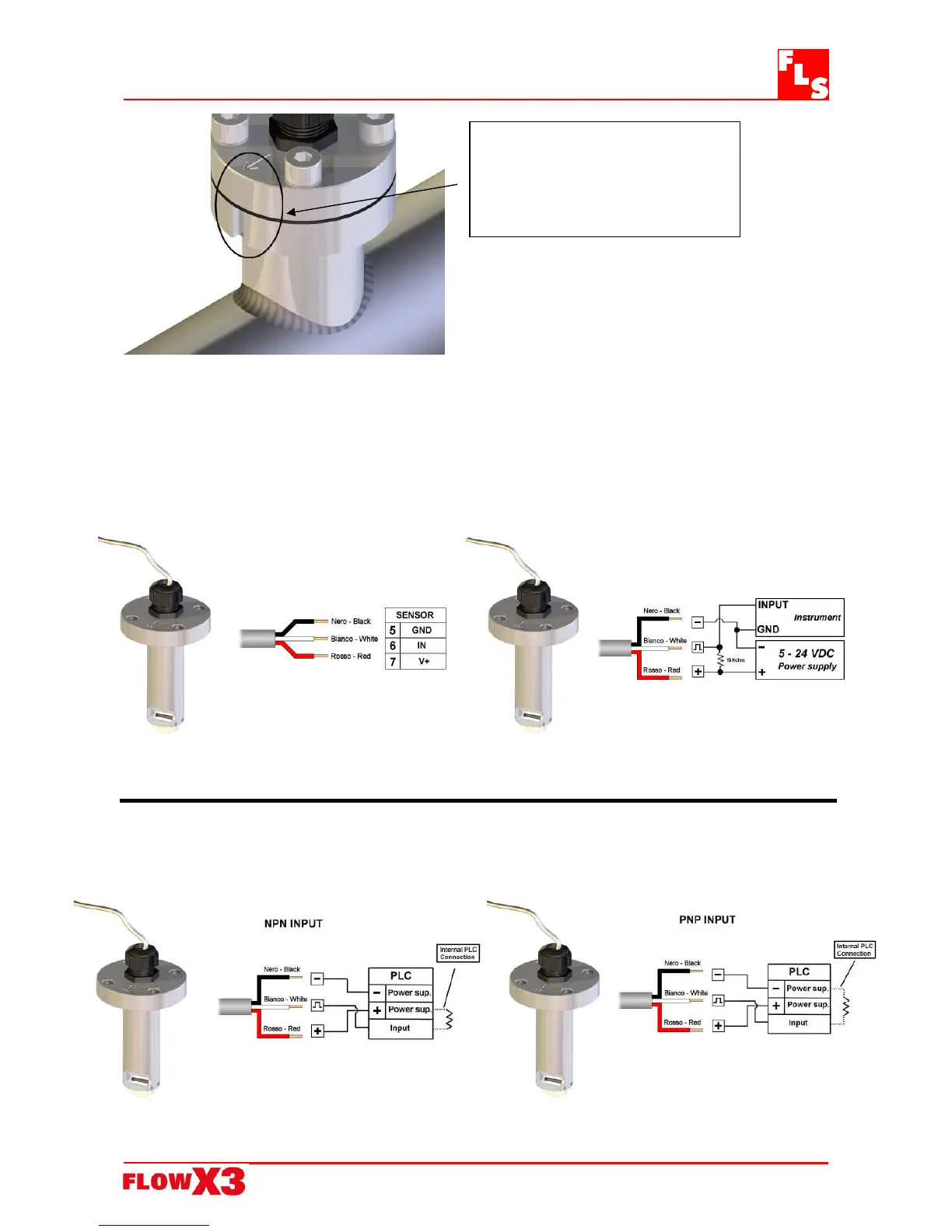

4.4. Wiring
 Always ensure the power supply is switched off before working on the sensor.
 Always use a high quality (regulated) DC voltage supply.
2.7Kohm Pull-up resistor may be required.
N.B. The slot milling of the weld
on adapter must be parallel to
the flow. The arrow on the
sensor must be close to the
milling weld on adapter.
F3.20.H IP68 Sensor Connection to
FlowX3 Instruments
F3.
2
0.H IP68 Sensor Connection
to Other Brand Instruments
F3.
2
0.P IP68 Sensor to PLC with
NPN Input
F3.2
0.P IP68 Sensor to PLC with
NPN Input
