XL2 Logger
Specifications and
Operation
The basic XL2 data logger consists of two units:
• Transducer Interface – Digitizes data received from the thermocouple
probes.
• MemoryPaq – Travels through the oven with the Transducer Interface,
controls it, and stores the digitized data.
An optional Dual Interface Block allows two Transducer Interfaces to be
connected to the MemoryPaq to increase the number of thermocouple probes
used.

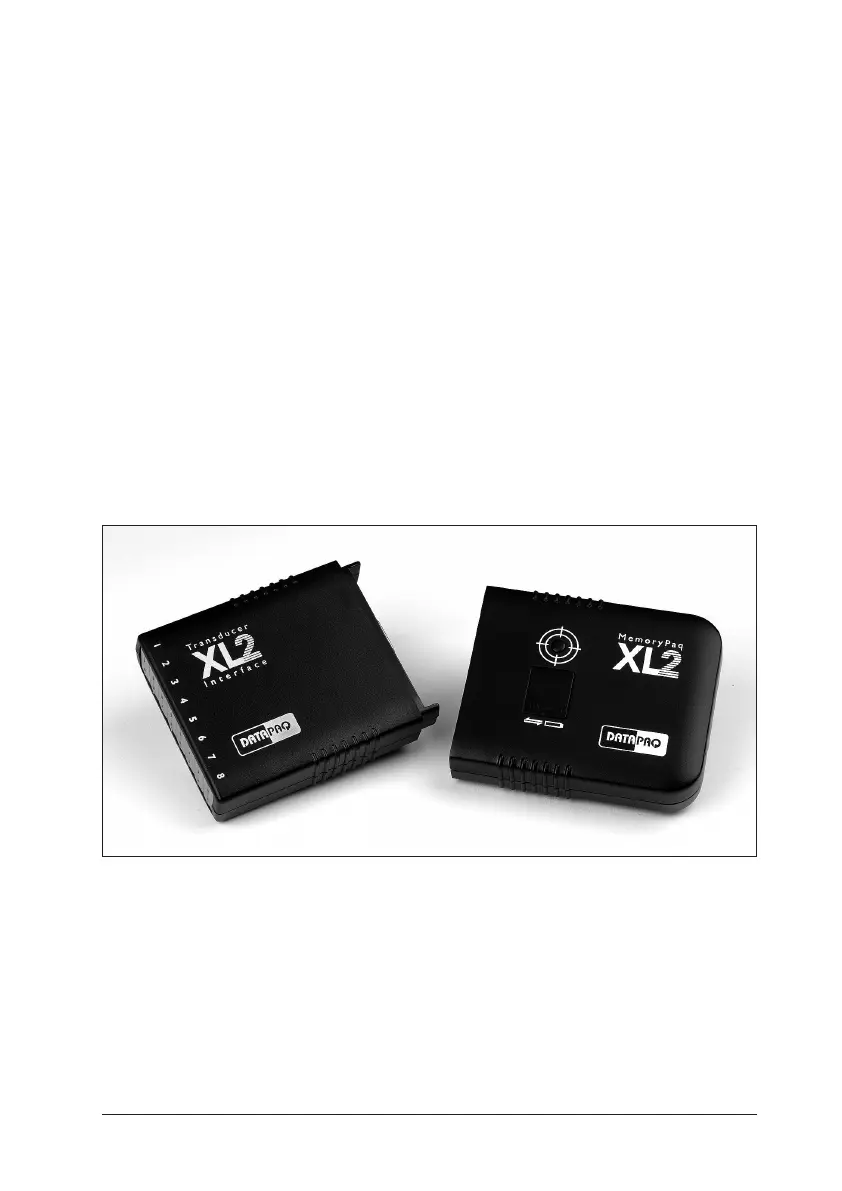

The basic XL2 logger: an eight-channel Transducer Interface (left, showing
thermocouple sockets) and MemoryPaq (right).
The XL2 logger is at home in a wide range of thermal paint-cure applications.
The 4 Mb onboard data-storage makes it a supremely powerful, accurate and
in-depth data-collection tool; combined with its facility for hard-wired
telemetry, which permits temperature profiles of batch processes to be seen
developing in real time, this is an ideal logger for all applications.
OVEN TRACKER XL2 Logger Specifications and Operation 17
