3
The PRO3000 Probe
Installing Batteries
WXWarning
To avoid electrical shock, turn the unit off and
disconnect its leads from any circuit before opening the
unit’s battery door.
Use only 9 volt alkaline batteries (not included). Open the battery
compartment with a screwdriver to insert a new battery. Properly
attach the connection wires and close the compartment. Do not over
tighten the screw.
The PRO3000 Probe
The PRO3000 probe is a highly sensitive inductive probe with
amplified speaker, which makes signals transmitted by the P
RO3000
toner audible. The non-metallic tip allows testing in distribution
blocks without disturbing other services (see Figure 1).
WXWarning
Though the tip is non-metallic, never touch the tip to
exposed power sources such as electrical outlets.
bff01.eps

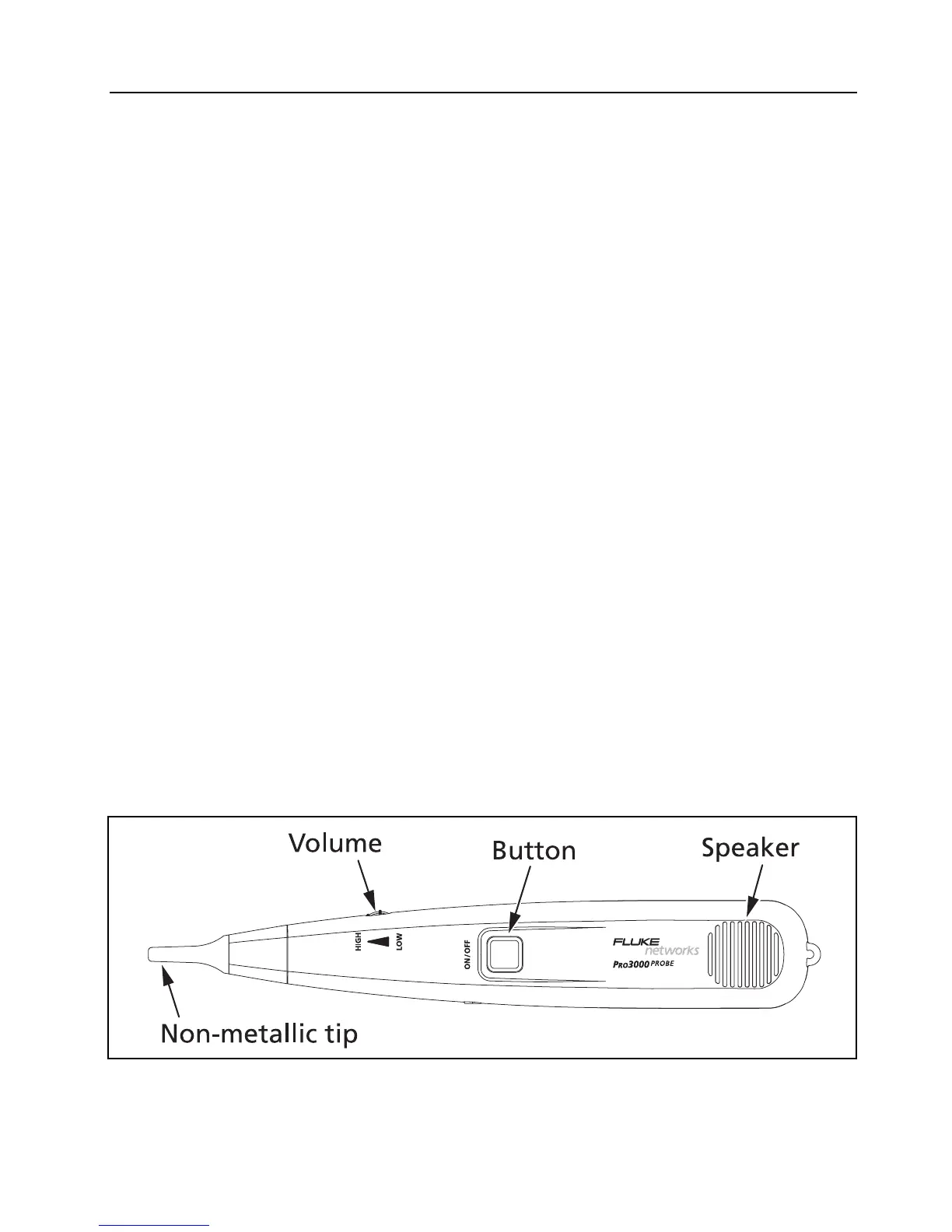

Figure 1. PRO3000 Probe
