Fluke SUPER-DAQ 1586A - PRT Verification Procedure

SUPER-DAQ Precision Temperature Scanner
Performance Tests
11
PRT Verification
Connect the Product as in Figure 4 for the 1 kΩ value listed in Table 5. For all
other values in the table, use standard resistors. Configure Ch001 as a 4-wire
PRT function with resistance display.
5522A Calibrator
1 ke
UUT
NC
NC
hcn312.wmf

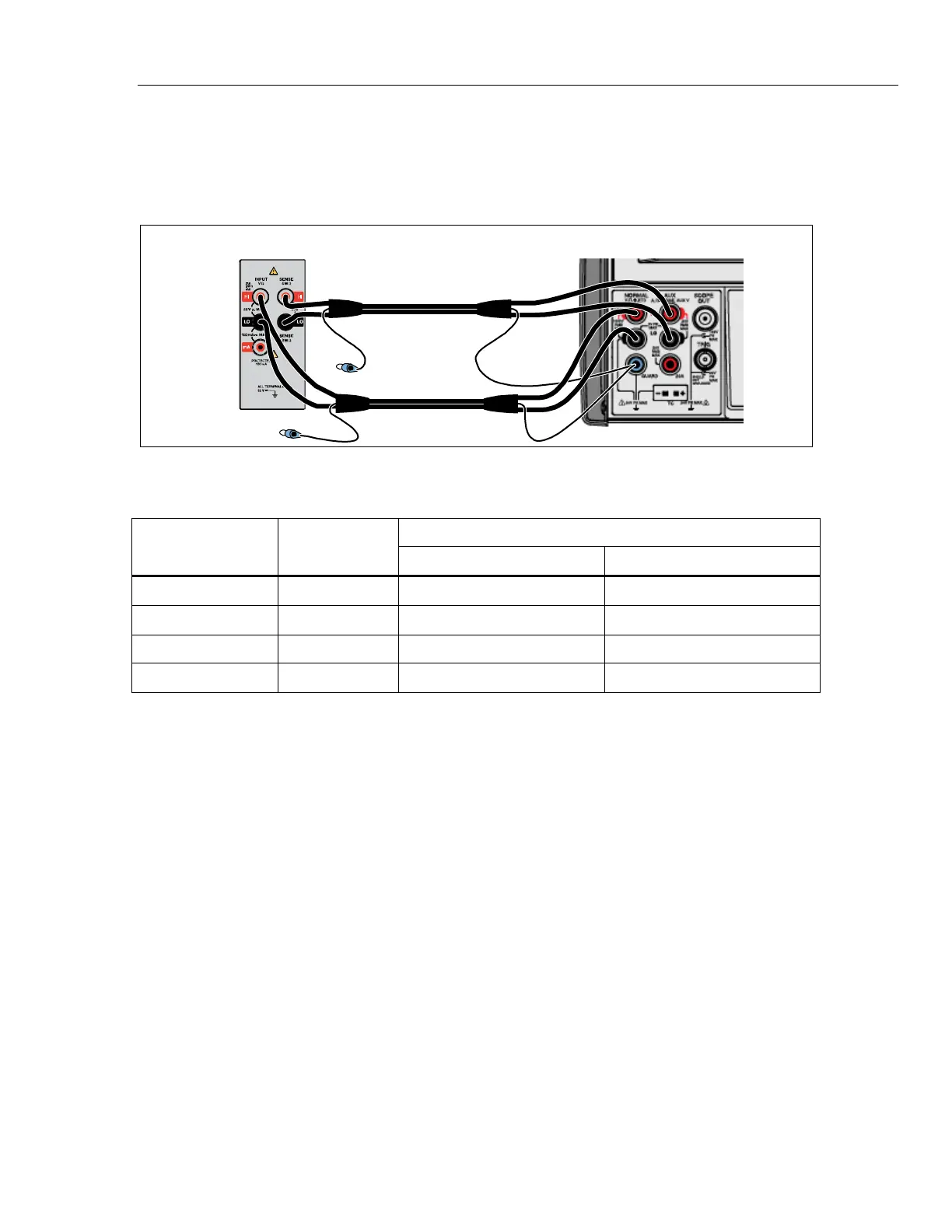

Figure 4. PRT Test Equipment Setup
Table 5. PRT Verification Steps
Nominal
Input
Range
1-Year Test Limits
High Low
0 Ω 100 0.0008 Ω -0.0008 Ω
25 Ω 100 25.0008 Ω 24.9992 Ω
100 Ω 100 100.002 Ω 99.998 Ω
1 kΩ 1k 1.00006 kΩ 0.99994 kΩ
