DC Inverter U-match Series Duct Type Unit
13
16.0KW
A
C
D
E
G
B
Unit: mm

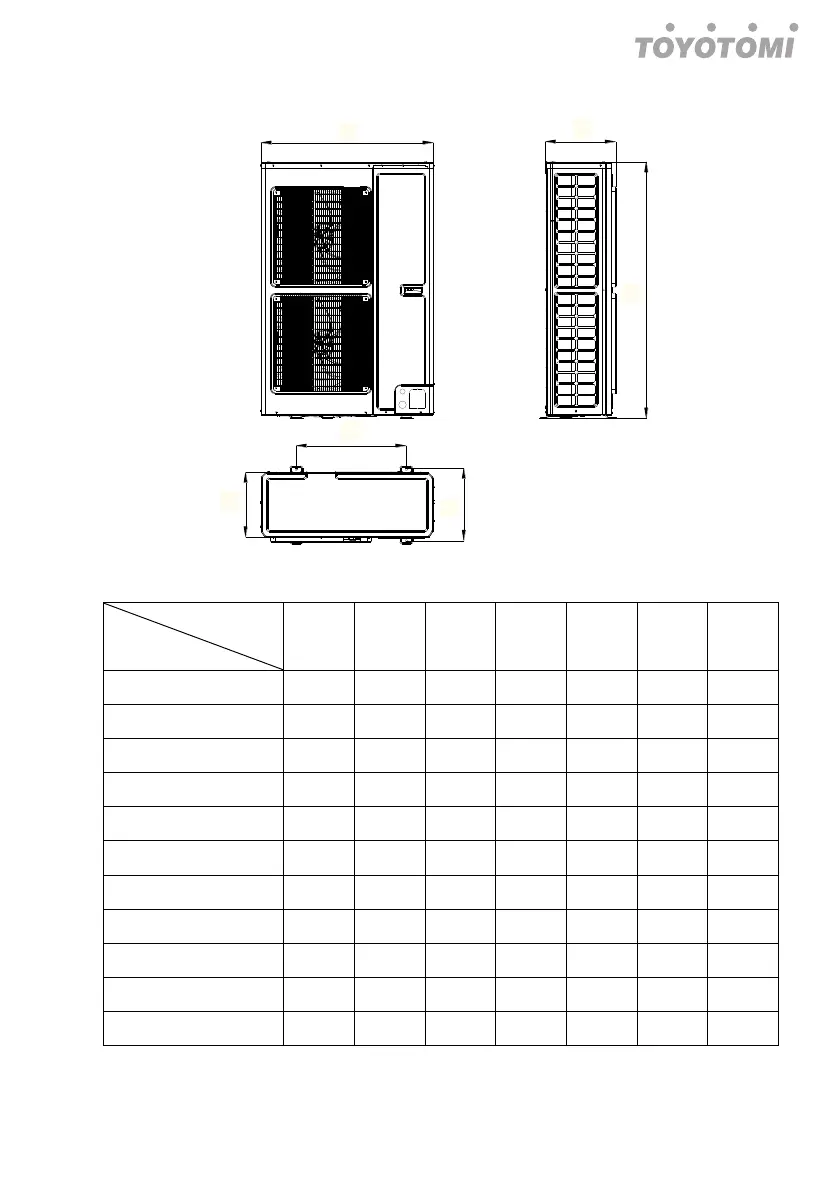

Dimensions
Model
A B C D E F G
3.5KW
818 378 596 550 348 887 302
5.0KW
818 378 596 550 348 887 302
7.1KW
892 396 698 560 364 952 340
8.5KW
920 427 790 610 395 1002 370
10.0KW
940 530 820 610 486 / 460
10.0KW
940 530 820 610 486 / 460
12.5KW
940 530 820 610 486 / 460
12.5KW
940 530 820 610 486 / 460
14.0KW
940 530 820 610 486 / 460
14.0KW
940 530 820 610 486 / 460
16.0KW
900 412 1345 572 378 / 340
