DC Inverter U-match Series Duct Type Unit
34
Return Air Inlet
Unit: mm
Item
Model
Supply Air Outlet Return Air Inlet
A B C D
122 585 700 200
122 885 1000 200
142 1185 1300 220
195 746 960 264
195
1150 1360 264

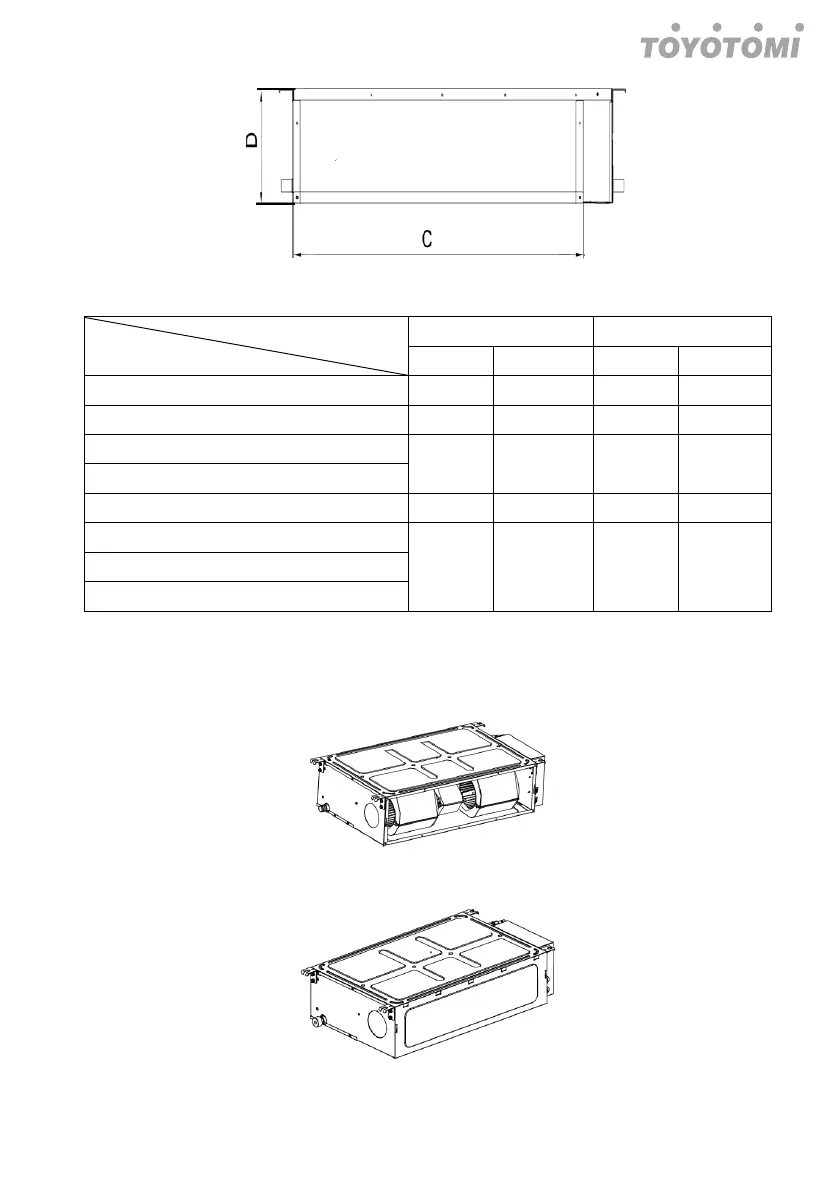

3.2.7.2 Return Air Method
(1) The default ex-factory return air method is from the back. The return air cover
shall be installed at the bottom of the unit, as is shown in the following figure:
(2) If the downward return air method is adopted, then install the return air cover at
the back of the unit after dismantling it.
(3) Connect the return duct to the return air inlet of indoor unit with rivet, and the
other side shall be connected to the return air inlet. For the convenience of free
16.0KW
14.0KW
12.5KW
10.0KW
8.5KW
7.1KW
5.0KW
3.5KW
