FLYCAM HD HANDHELD VIDEO STABILIZER 3
Note: The threaded stud is located in the center of the
base plate for aach it with central post.
BASE PLATFORM
Provided with 16 weights to balance the camera on
stabilizer.

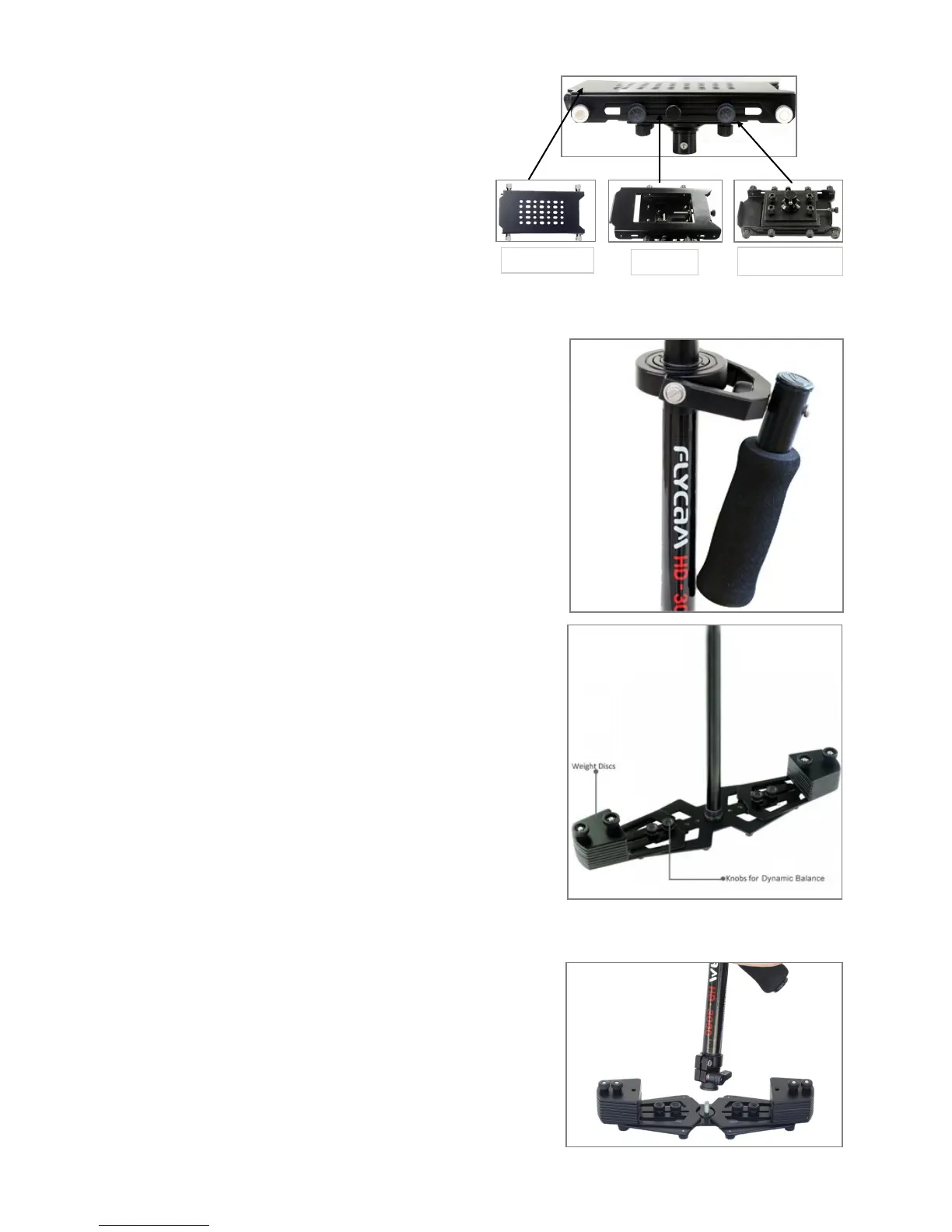

H E A D A S S E M B L Y
 Head Plate
 Mid Plate
 Boom Plate
These three individual pieces are shipped as one assembled unit.
 Aach central post on base plate and ghten it
with the help of a thread to ensure a slip free
connecon.
 Alignment should end up with central post be-
ing perpendicular to base plaorm as pictured.
This will make camera balancing and operaon
much easier.
ASSEMBLING YOUR HD HANDHELD VIDEO STABILIZER
Boom Plate
Mid Plate
Head Plate
