Page 2
You need to purchase the following accessories power system separately to complete the model.
FF9-910 Metal gear Servo 13g 4pcs
FF14-03 Servo extension cable: 800mm 2pcs
FF14-06 Y# extension cable: 300mm *2pcs
Battery 3S 20-25C 2200mAh 1pcs for electric
FF9-912 Metal gear Servo 17g 2pcs
Copyright 2015 Flyfly hobby Designed and Manufactured by: Flyfly hobby Mfg.
Web: www.flyflyhobby.com Email:info@flyflyhobby.com
FF4-404 ESC 50A 1pcs
FF10-106 Alum Propeller & sprinner 10*6 φ38mm
/1set
FF3-309B Motor 720kv 1pcs

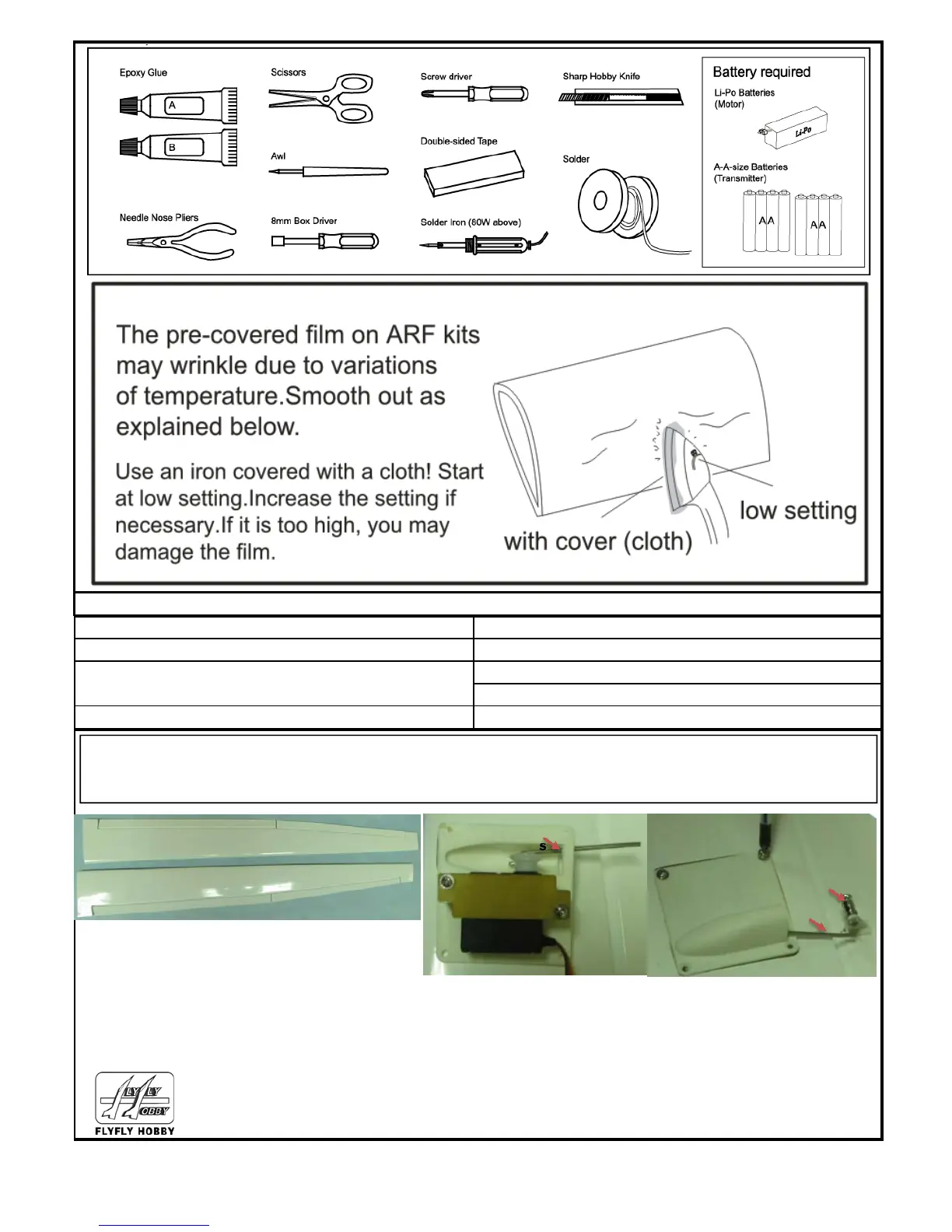

(1). Installing The wings: need to preparing:13g Servos*4pcs (Flyfly item no:FF9-910) Servos extension cables
800mm*6pcs (Flyfly item no:FF14-03)
Parts:Horns(No:LL04-406A/B),Servo tray ,Push robs(No:NN17-00401),Linkage Stoppers(No:FF12-05)
After installed like this photos
Put the servo in to the servo
tray, with 2 screws locked
Push Rod Fixed to
the servo horns
locked with 4 screws
After finished like this photo, Adjust the aileron &
Flaps,then locked the Linkage stoppers,please
remember the servo horns between the Linkage
stoppers always keep in a flat line
Push rod & Lingkage
Stoppers
Page 2
