B

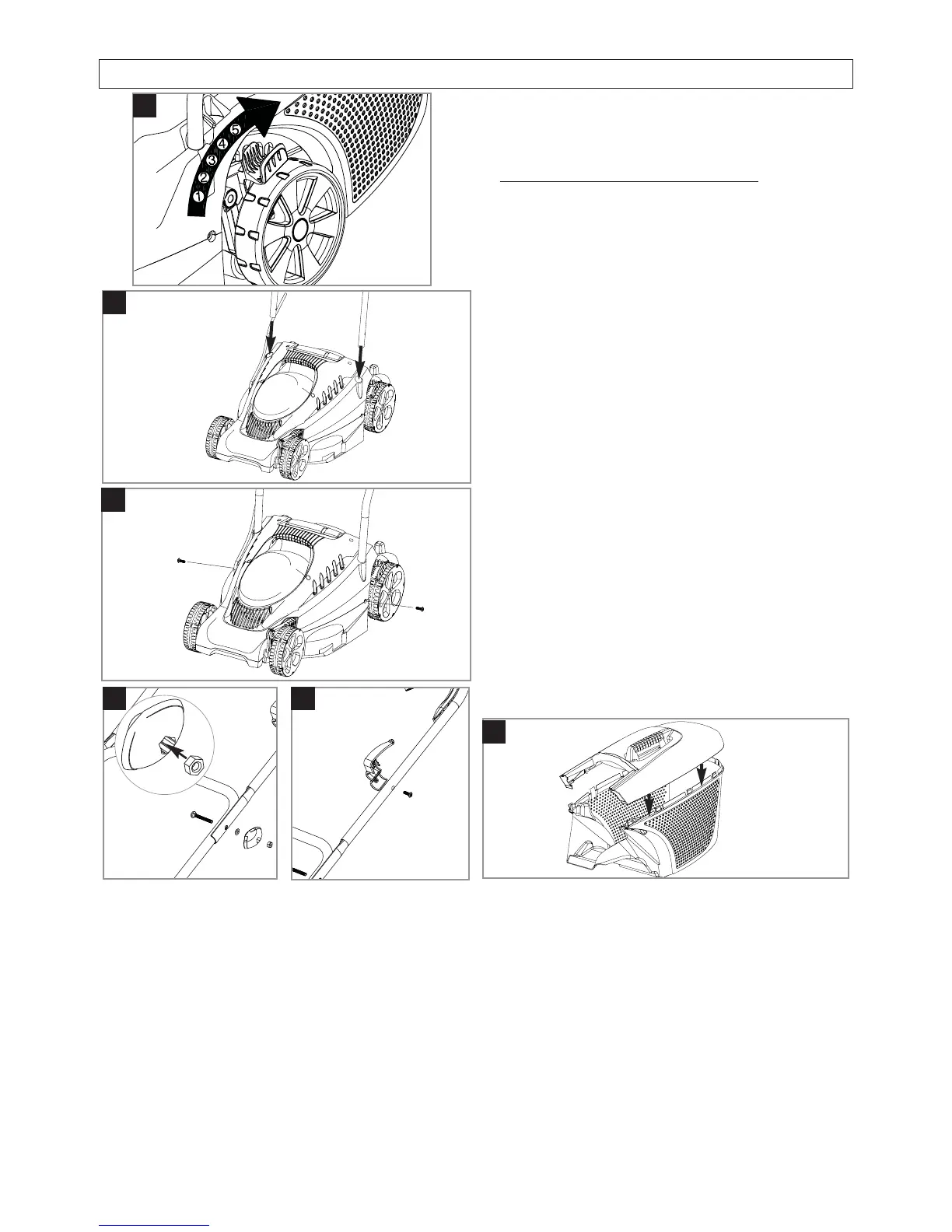

Assembly of Lower Handles to Deck
1. Insert lower handles into the deck and push down (B).
2. Using a pozi drive screwdriver insert the larger screws
into the deck and handles and fully tighten (C).
Assembly of Upper Handles to Lower Handles.
1. Ensure the upper handle is located correctly with the
lock-off button on the switchbox uppermost.
2. Insert the nut into the handle knob.(D1)
3. Ensure the upper handle and the lower handle are
aligned correctly (D2). There are two holes for upper
handle height adjustment.
4. Fit the bolts, washers and handle knobs (D2).
5. Fit the cable to the handles with the clips provided.
See Contents page for position. Make sure the cable
is not trapped between the upper and lower handles.
Attaching the Cable Hooks (for storage of the mains
cable)
1. Insert the post on the Cable Hook through the hole in
the Upper Handle (E).
2. Insert the smaller screw and tighten to secure
(E)
Repeat for the other side.
Grassbox Assembly
1. Locate the grassbox lid onto the grassbox by aligning
the clips.
Ensure all the clips are correctly located before click-
ing into position. (F)
Assembly Instructions
C
D
F
A
When received from the Manufacturer,
the wheels are in a raised position.
Do not switch on the product
before removing from the raised posi-
tion into position 5.
E
1
2
