Cutting Height Adjustment
Grassbox
J

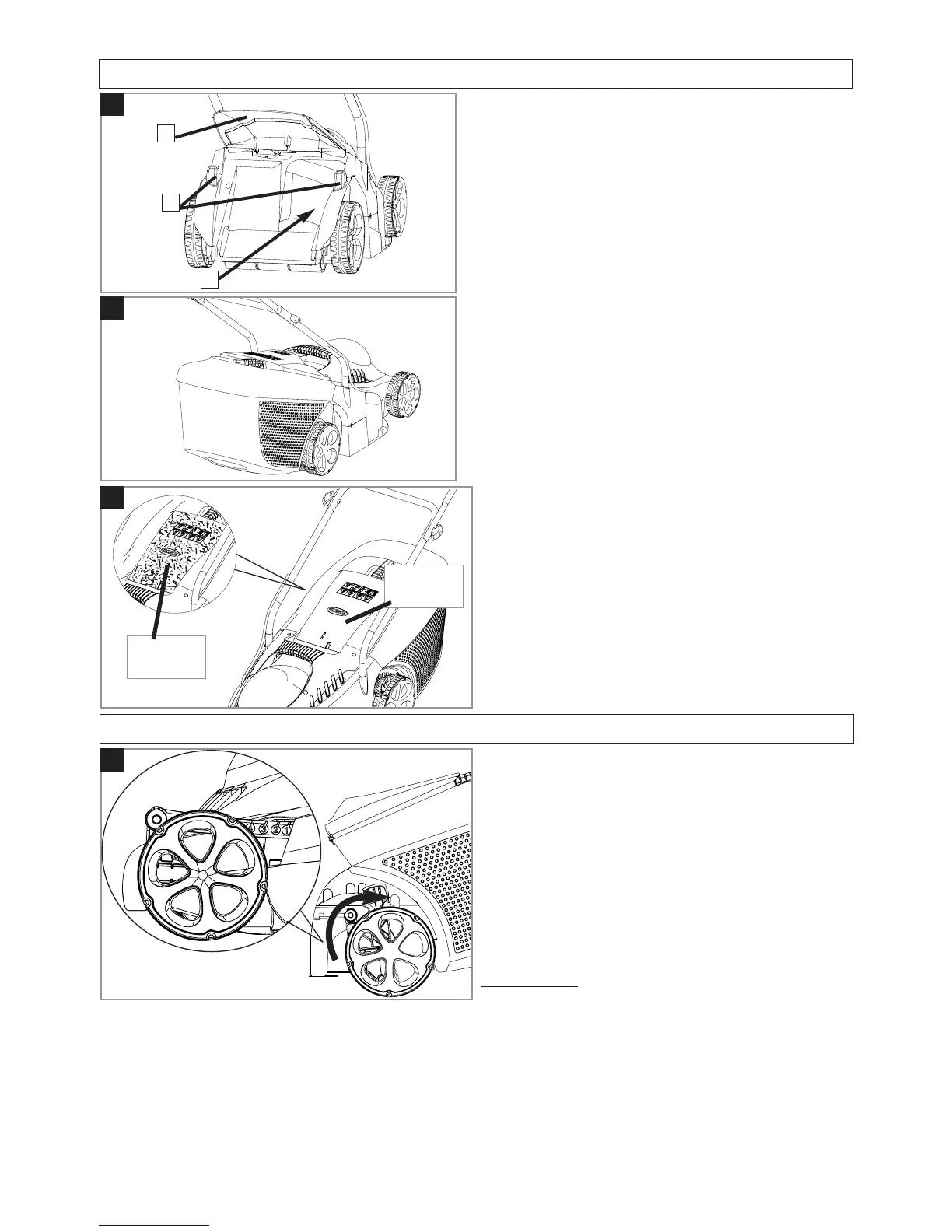

Fitting Fully Assembled Grassbox to Lawnmower.
1. Lift safety flap (G1)
2. Make sure the discharge chute is clean and free from
debris (G2)
3. Locate fully assembled grassbox onto 2 location
points (G3) at the rear of the deck as illustrated in
pic. H
4. Locate safety flap onto the top of the grassbox. En-
sure the grassbox is securely located.
• IMPORTANT !
AFTER FITTING ENSURE NO GAP REMAINS BE-
TWEEN THE SAFETY FLAP AND THE GRASSBOX.
• Removal is the reverse procedure.
• For larger areas of grass where grass collection is
not required you can use your lawnmower without
the grassbox. Ensure the Safety Flap is fully closed.
The design of the safety flap permits the cut grass to
be discharged downward behind the machine.
Grassbox Fu
ll Window
• As the grassbox fills up, grass will be visible through
the window (J). (Only on VC product).
• When the window/grassbox is full it is time to empty
the grassbox. (Only on VC product).
grassbox
empty
grassbox
full
G
1
2
3
H
Cutting Height Adjustment
• Height of cut is adjusted by raising or lowering the
wheels using the height adjustment lever (K)
• There are five heights of cut on this product. (20 - 60
mm)
• NOTE
A medium height of cut is recommended for most
lawns.
The quality of your lawn will suffer and collection will be
poor if you cut too low.
Heights of cut:-
1 & 2 - low, 3 - medium, 4 & 5 - high
K
