(GB) USE
●●
The cutting line is sharp, wear gloves
and take care when handling it.
●●
Check the cutting line frequently
during use and on completion of
trimming.
Removing the Cutting Line
1. Switch machine off and disconnect spark
plug lead.
2. Push the line towards the centre of the
cutting disc and carefully remove. See Fig
N.
Fitting the Cutting Line
1. Holding the line with thumb and forefinger
and using other thumb as a guide, curve
around centre portion of the cutting disc
(as illustrated in Fig P) and thread
through the hole on the rim of the cutting
disc.
2. Carefully pull the line into place as
illustrated in Fig. Q.
● At all times the amount of line extending
beyond the edge of disc should be of an
even length. If there is a variation of
more than half an inch between the four
lengths of line replace immediately with
four full new lengths.
●●
Important
:- Only fit four cutting
lines at any one time.
●●
Only use Y
ellow
coloured cutting
line on the HVT 52.
Changing the height of cut
1. Loosen bolt (R1), using a 14mm socket.
Remove bolt (R1), spring washer (R2),
washer (R3) cutting disc (R4) and spacer
(R5) (if fitted).
2. Carefully remove impeller (R6) from
engine shaft.
3. Select required height of cut,
(See Figs S, T, U & V)
and replace any cutting lines required,
ensuring that cutting line is fitted on
correct side of cutting disc.
●●
Important:- Cutting line must be on
the side of the disc facing the grass
when fitted.
4. Replace impeller (R6) on to engine shaft
ensuring that it is correctly located.
Replace spacer (R5) (if fitted), cutting
disc (R4), washer (R3), spring washer
(R2) and bolt (R1).
5. Secure assembly with bolt (R1), making
sure complete assembly is tight, (if in
doubt, contact your service dealer).

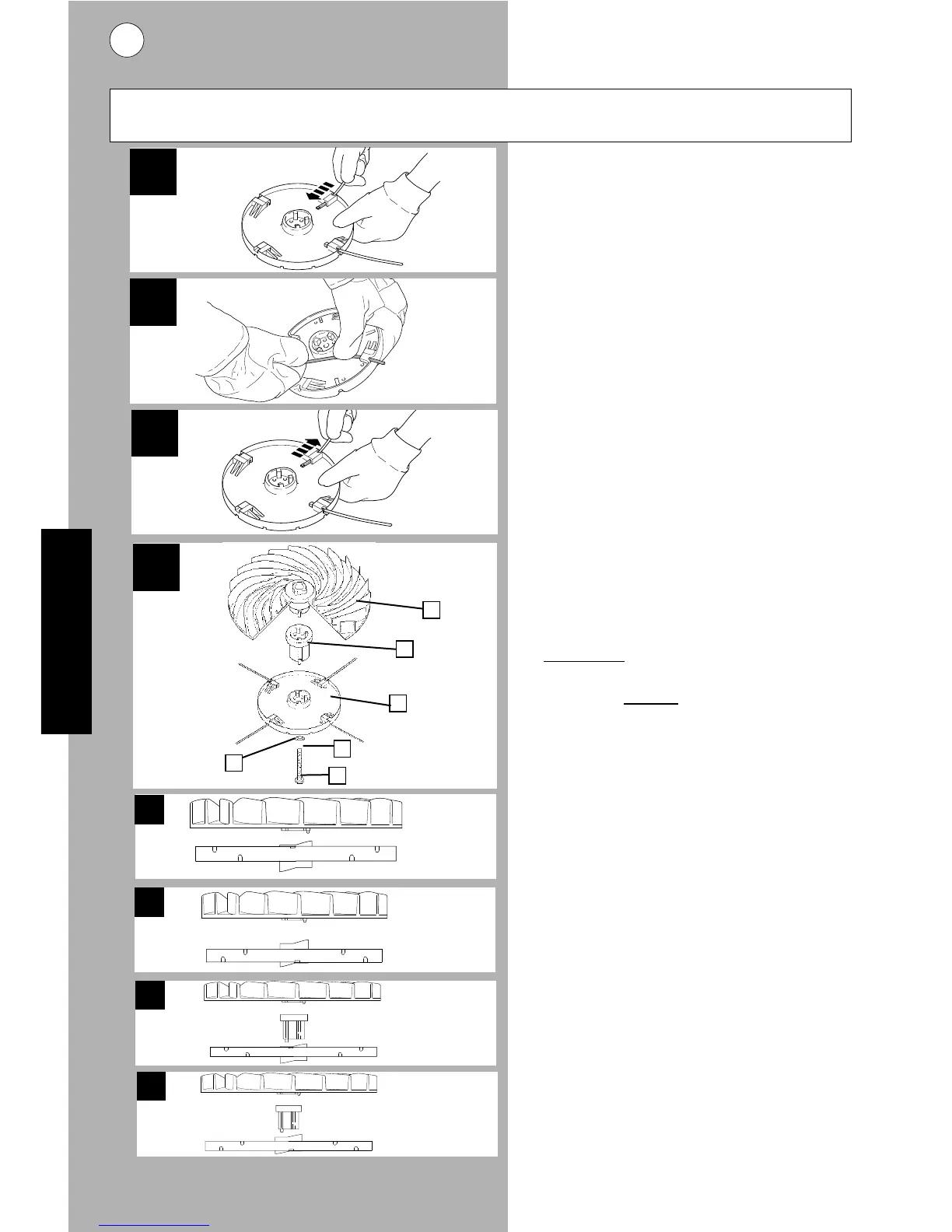

Removing and Fitting Cutting Line -
Height Adjustment
N
P
Q
R
4
3
2
1
5
6
S
Highest
height of
cut
T
U
V
Lowest
height of
cut
