Cleaning the Air Filter
Cooling system debris guard
Cooling system air-intake (R)
●●
Never operate the engine without the
debris guard and foam filter being
fitted, failure to fit the debris guard and
foam filter will cause premature engine
failure.
1. Ensure the debris guard is kept clean,
check frequently during use.
2. Clean the debris guard using a soft brush.
3. If debris guard is very dirty, unscrew wing
knob and remove washer, debris guard
and foam filter.
4. Wash foam filter in clean soapy water, rinse,
wrap in a clean dry cloth and 'squeeze dry'.
5. Re-assemble ensuring that the recoil rope
passes through the slot in the foam filter.
● Your Tecumseh engine is equipped with a
dry paper cartridge air filter (A16).
● Every 10 operating hours check condition
of paper cartridge.
● Every 50 operating hours or more regularly
(see Air Filter Cleaning Instructions
number 1).
● If engine is operating in dusty or dirty
areas the air filter system will require
shorter maintenance intervals.
● Do not attempt to wash, clean, or oil the
paper cartridge.

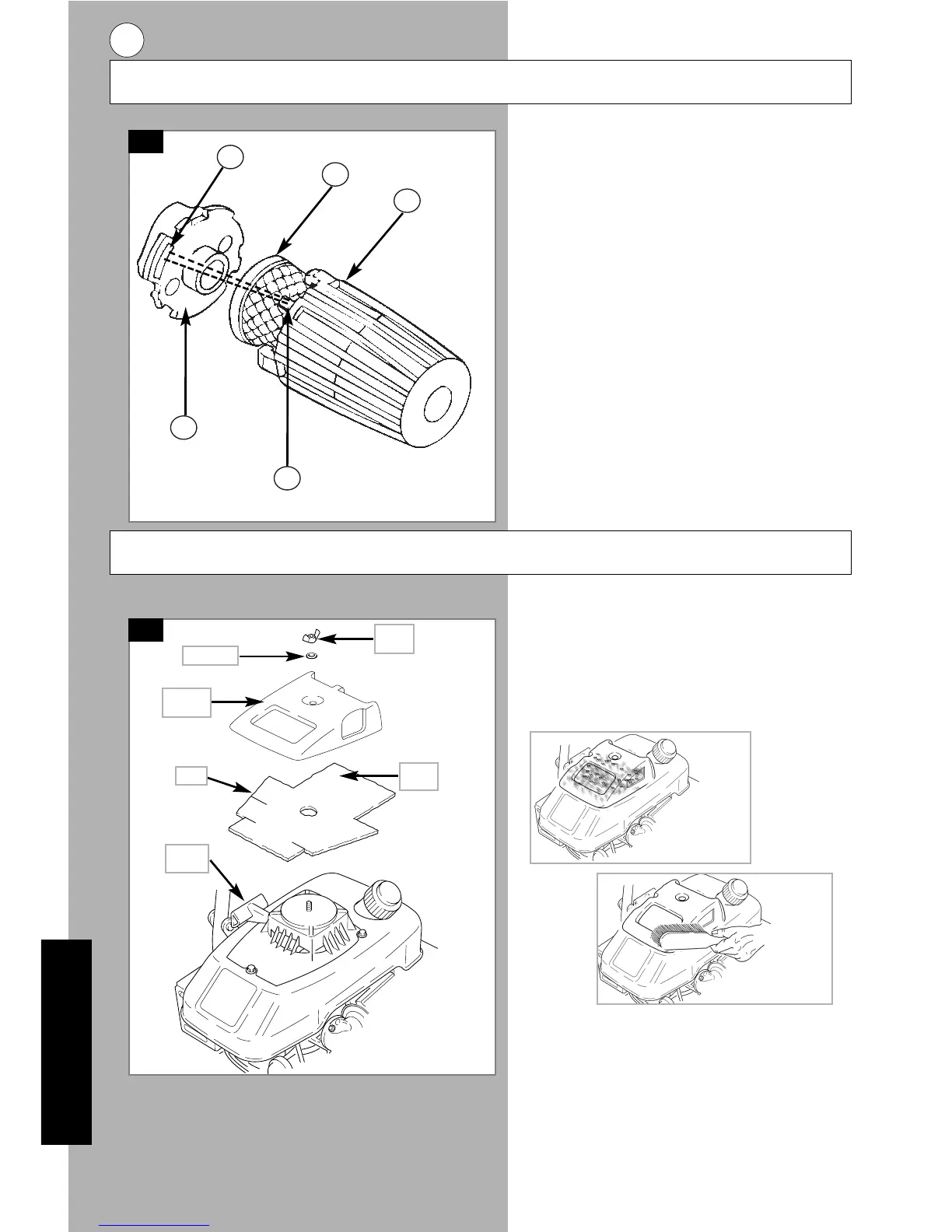

Air Filter Cleaning Instruction
1. Turn cover (P3) (anti-clockwise) and
remove it and filter (P2) from flange (P1).
Discard paper cartridge (See Fig P).
2. Clean cover and flange thoroughly.
3. Insert new cartridge (P2) onto flange (P1).
4. Position cover (P3) against flange (P1) with tab
(P4) on cover inserted into slot (P5) in flange.
5. Push cover firmly against flange and turn it
(clockwise) as far as it will go. Be sure
retainers are locked around flange.
2
3
4
1
5
P
washer
debris
guard
slot
recoil
rope
wing
knob
foam
filter
✖
✔
R
