Flymo Multimo 340 User Manual

4. Insert the Barrel Nut into the Cam Lock as
illustrated in fig D1.
5. Ensuring the lower handle is in the correct position
(D2) Insert the Lower Handle, Washer and Cam
Lock on to the Bolt (D3) and turn the Cam Lock 3
times clockwise, as illustrated in fig D4.

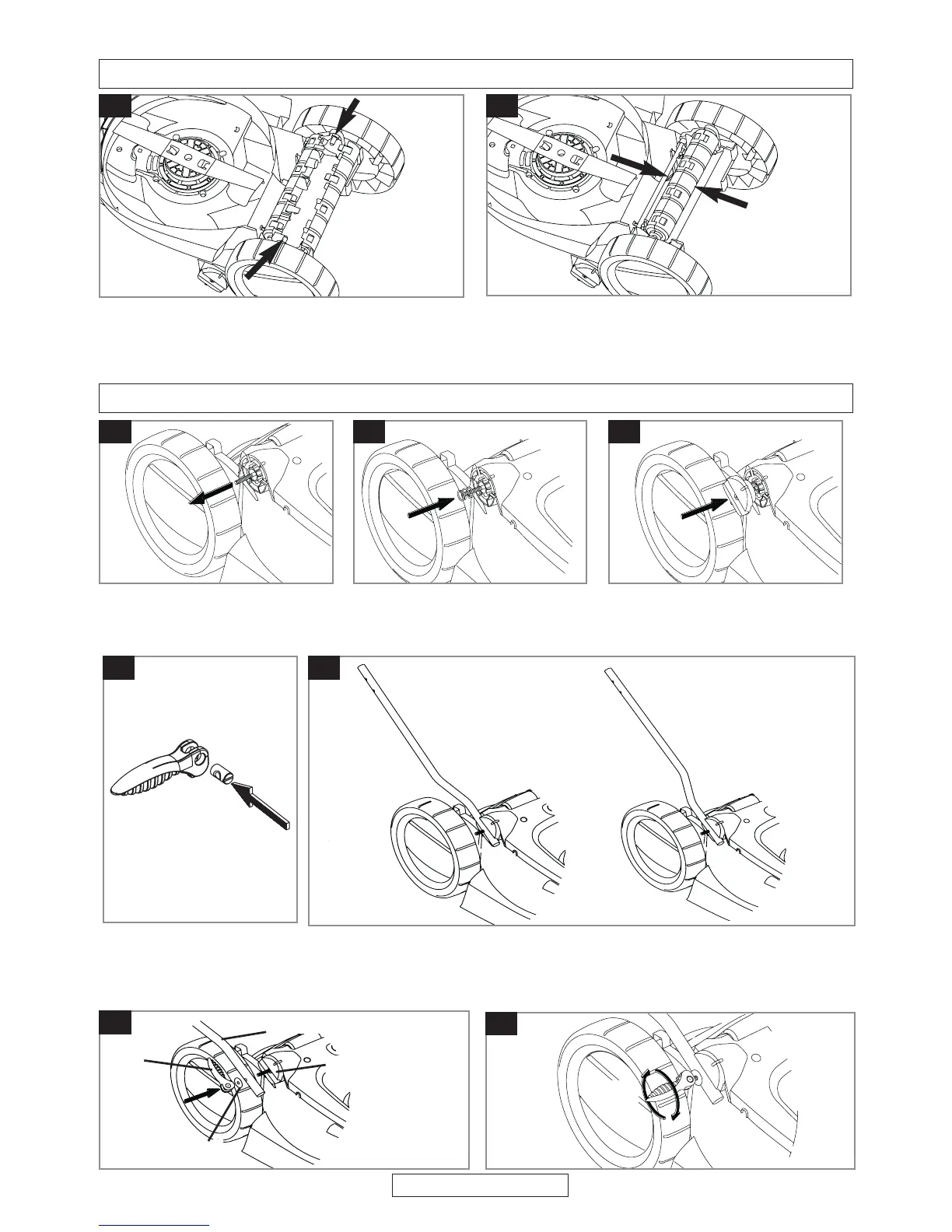

Assembly of Lower Handles to Lawnmower
C1
C2
C3
1. Pull the lower handle bolt until it locks into
position as illustrated in fig C1.
2. Place the Spring over the Bolt (C2)
3. Insert the Pivot Block on to the Bolt (C3)
Repeat for the other side.
D1
D3
D4
x3
pivot block
lower handle
washer
cam lock
Roller Assembly
B1
1. Turn product over.
2. Place both halves of the roller over the
location pegs as illustrated in fig.B1
3. Clip the roller together to secure it into
position.(B2)
• Do not clip the roller together before
placing over the location pegs
B2
PAGE 4
D2



Flymo Multimo 340 Specifications

General

Brand	Flymo
Model	Multimo 340
Category	Lawn Mower
Language	English
