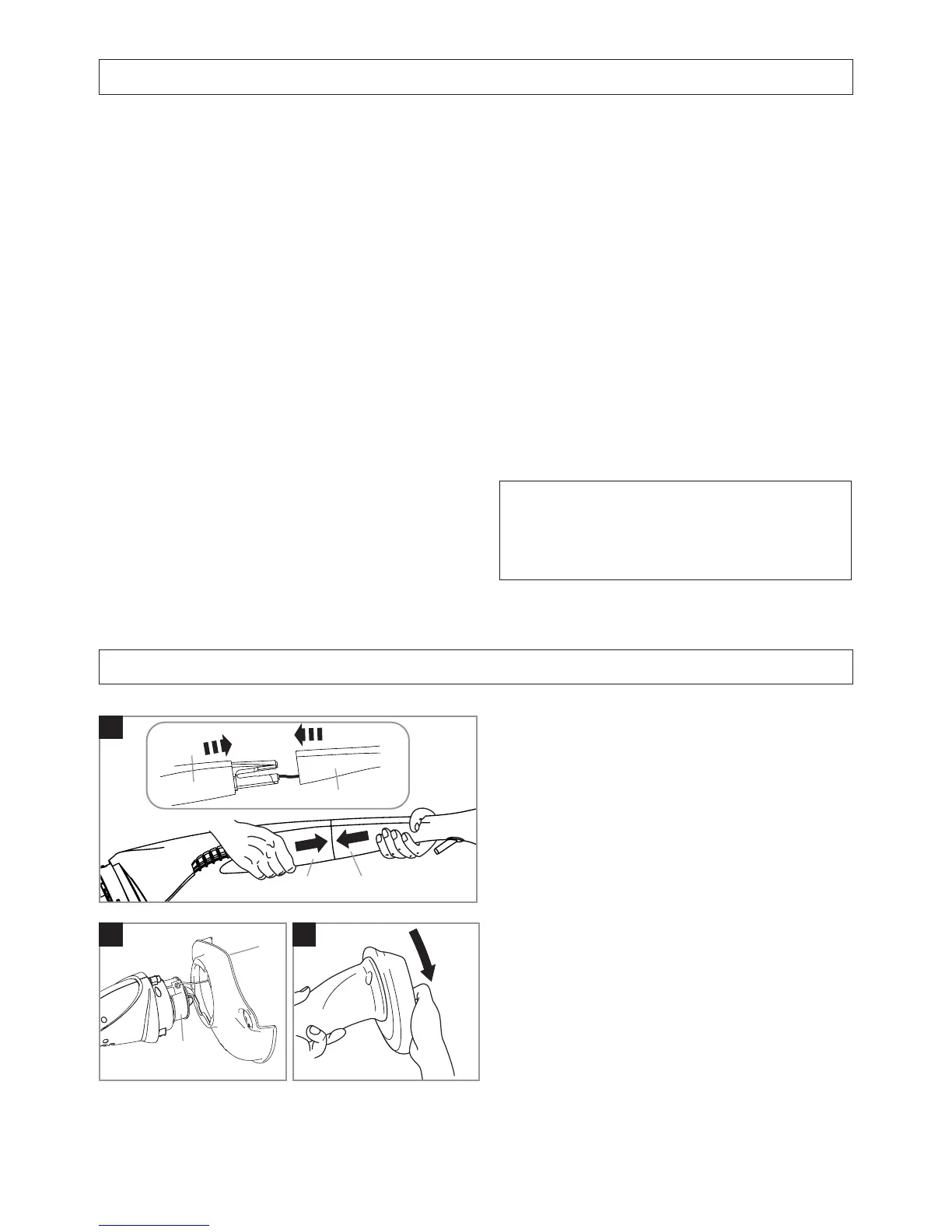

Assembly Instructions
Shaft Assembly (A)
1. Locate the lower shaft (A1) into the upper shaft
(A2).
2. Grasp firmly and hold steady the lower shaft.
Locate the upper shaft and snap together firmly.
• The unit is correctly assembled when the gap
between the upper and lower shaft has been
closed.
Safety Guard Assembly (B) & (C)
1. Locate the safety guard (B1) over the cutting
head (B2). Ensure the nylon line is fed through
the hole in the safety guard as illustrated in fig
B.
2. Push into location and turn safety guard in the di-
rection illustrated in Fig C, until a click is heard
and the safety guard is securely locked in posi-
tion.
• ENSURE THE SAFETY GUARD IS SECURELY
IN PLACE BY ATTEMPTING TO TWIST
GUARD.
A
1
2
1
2
B
C
2
1
Cables
IMPORTANT
Use only 1.00mm
2
size cable up to 40 metres length
maximum.
Maximum rating:
1.00mm
2
size cable, 10 amps 250 volts AC.
YOUR PRODUCT IS SUPPLIED WITH AN
ELECTRIC MAINS CABLE WIRED DIRECTLY
INTO THE PRODUCT.
1. Mains Cables and Extension Cables are available
from your local Approved Service Centre.
2. Do not wire an extension cable directly to your
product yourself. Please contact your local Ap-
proved Service Centre for further information on
the connectors and kits available.
3. Only use extension cables specifically designed
for outdoor use.
CONNECTORS
Our connectors are suitable for use with 2 core
cable only. Under no circumstances should these
connectors be used for earthed products.
All of our connectors and cables are of splashproof
construction. They are not waterproof and must not
be left outside permanently nor should they be sub-
merged or immersed in water. Do not let cable lay
or trail through pools of water or splashed with water
from hose pipes.
MAINS PLUG REPLACEMENT
• If the plug supplied is cut off it should be de-
stroyed. There is an electric shock hazard if a
cut off plug is inserted into a 13 amp socket.
1. No earth required. Our products are double in-
sulated to EN60335 and under no circumstances
should an earth be connected to any part of the
product.
2. Ensure the mains voltage suits your product.
3. IMPORTANT!
The wires in the mains lead are coloured in accor-
dance with the following code:
BLUE - NEUTRAL BROWN - LIVE
The wire which is coloured BLUE must be con-
nected to the Terminal which is marked with the let-
ter ʻNʼ or coloured BLACK. The wire which is
coloured BROWN must be connected to the Termi-
nal which is marked with the letter ʻLʼ or coloured
RED.
4. It is important that the outer sheath is clamped
correctly into the 3-pin plug.
5. If in doubt consult your local Service Repairer or
qualified electrician before the machine is used.
6. A 5 Amp fuse must be fitted to the Mains Plug.
7. The normal plug fuse and household fuse only
protect the electrical equipment and are not a
safeguard against electrocution.
If your product is hard wired i.e. non-detach-
able mains electric cable, a conversion kit and
extension cable is available from all Husqvarna
Outdoor Products Approved Service Centres
which can be found in your local Yellow Pages.
