Automatic Line Feed System cont’
To fit spool and line complete:
1. Remove old spool.
2. Place new spool into spoolholder with cut out
areas of the spool in line with eyelets as shown
in figure M.
3. Release one line from cleat and feed line through
eyelet (M).
4. Repeat for second line.
• Ensure spool is fully located by gently rotating
it during fitment, whilst keeping the spool-
holder steady.
5. Refit the cap.
To fit nylon line only:
• Remember! Your Trimmer is designed to use only
nylon line with a maximum diameter of 1.5mm.
Use only genuine Husqvarna UK Ltd. nylon line.
1. IMPORTANT - Always wind the line onto the
upper section of the spool first.
Take approximately 5 metres of line. Insert 15mm
of line into one of the holes in the upper section of
the spool (N) and wind line in the direction of the
arrows on the top of the spool. Leave approxi-
mately 100mm of line unwound and place into
cleat as illustrated in figure N. Repeat on lower
section of spool.
2. Care should be taken to ensure that the line is
neatly coiled on the spool. Failure to do so will im-
pair the efficiency of the automatic line feed.
3. Then fit spool as described in ‘To fit spool and
line complete’, section above.
• Always return the product to its normal operating
position before switching on.

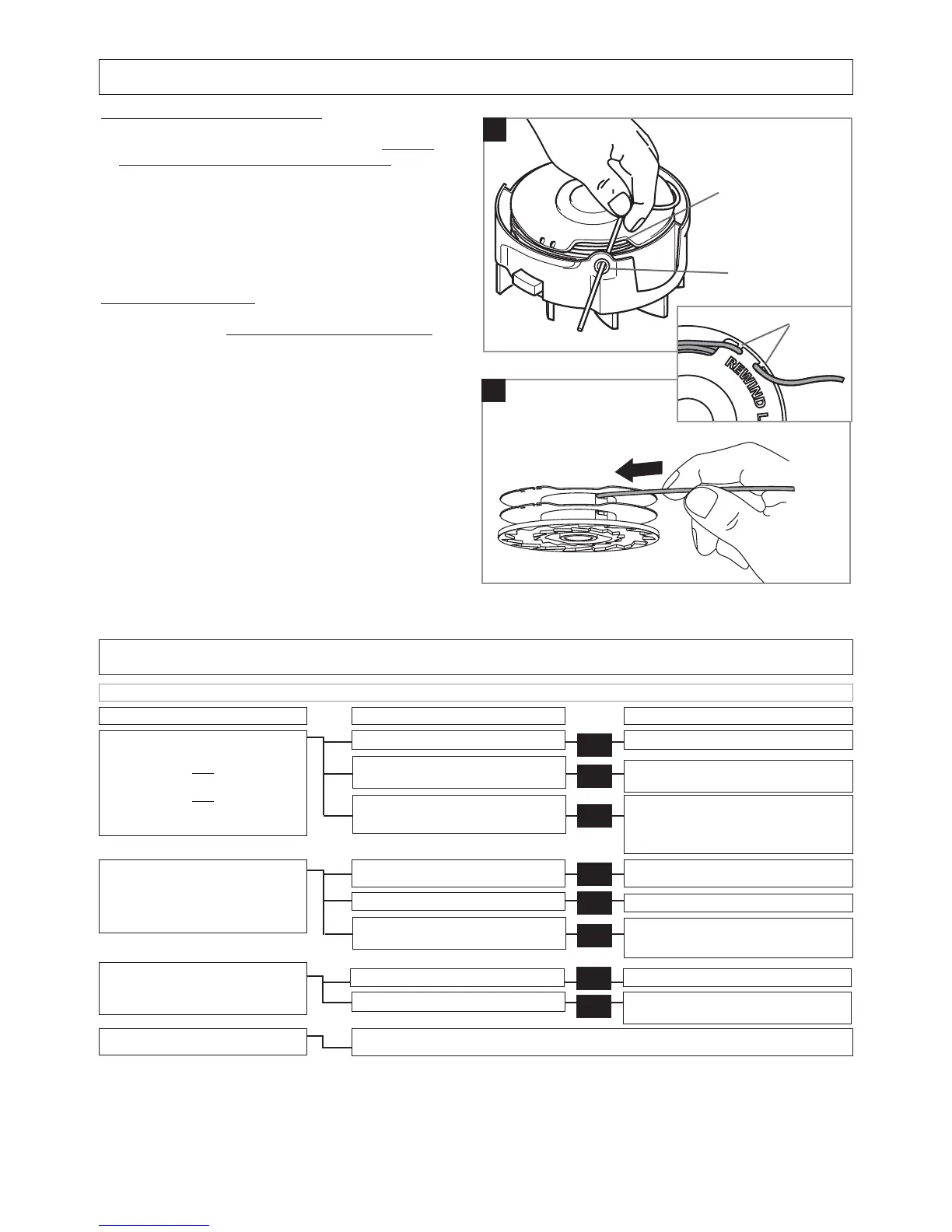

M
N
Cleat
Cut out area
of spool
Eyelet
Fault Finding Chart (Automatic Line Feed only)
WARNING Disconnect from the mains electricity supply before attempting any maintenance or adjustment.
FAULT CHECK ACTION
Is the automatic line feed working?
Manually feed out line.
Is the line fed out and visible? Has
line been removed from cleat?
Remove cap and spool, free line
and re-fit spool and cap.
The line may be jammed on the
spool. Rewind line to remove
crossed loops. Check that line is in
correct section of spool.
Is the manual line feed working?
Has too much line been fed out?
Rewind line.
Contact your local approved Service
Centre or Husqvarna UK Ltd. Cus-
tomer Service.
Is the line cutter missing from the
safety guard?
Contact Husqvarna UK Ltd. Customer Service
Telephone : 01325 300303
No
No
No
Yes
Yes
LINE NOT FEEDING
OR
LINE TOO SHORT
OR
TRIMMER VIBRATES
CONTINUOUS
CLATTERING NOISE
LINE SNAPS CONTINUOUSLY
IF NONE OF THE ABOVE
OR IF FAULT PERSISTS
Has the motor reached full
speed before use?
No
Allow the motor to reach full speed
before use
Are you using the trimmer correctly?
?
Only use tip of nylon line to trim.
Is the line jamming on the spool?
Yes
Rewind the line on the spool, if symptoms
still persist, change spool and line.
