3.2 Transmitter Overview

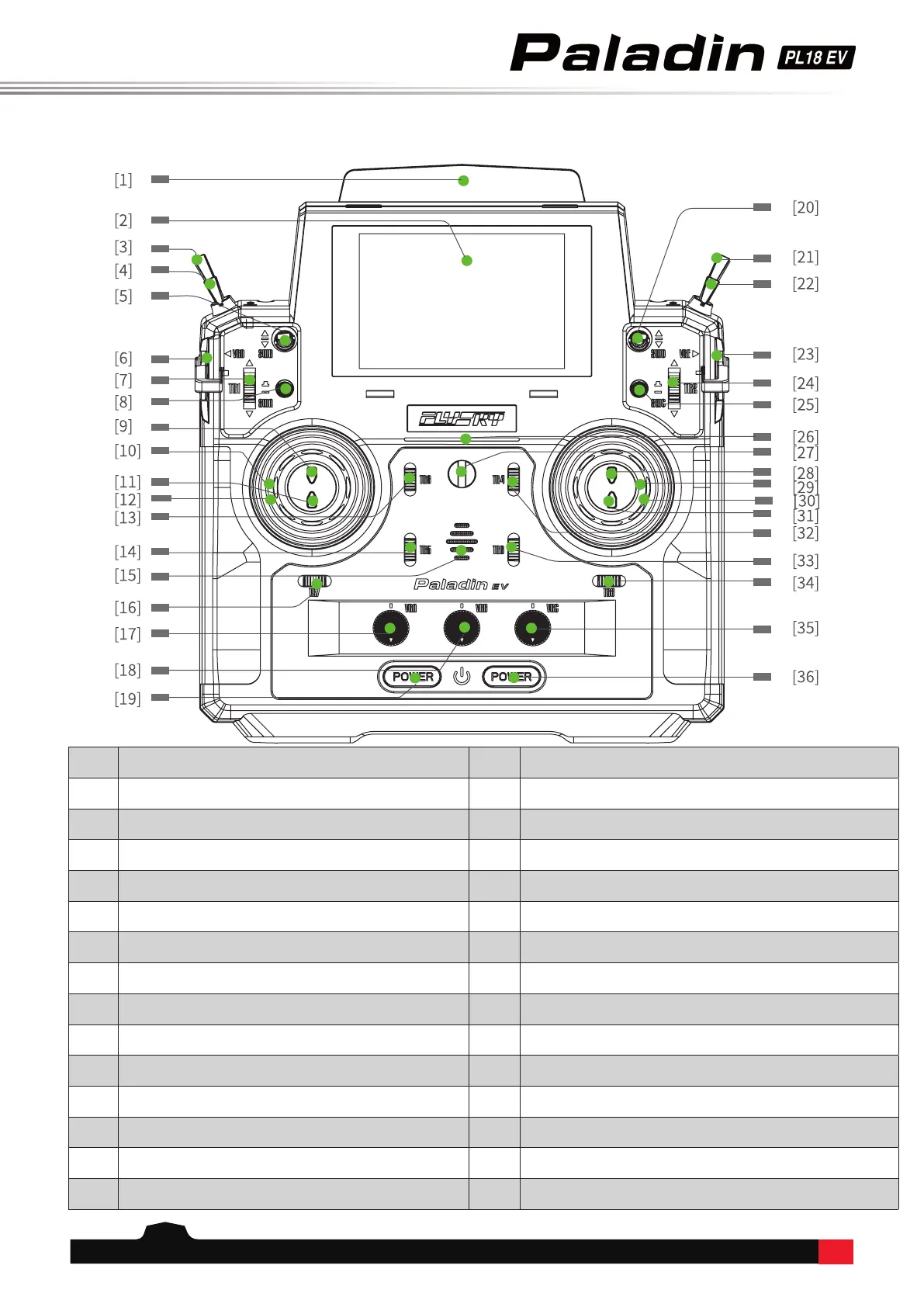

Front View：
[1] Antenna [16] TR7 Trim
[2] 320*480px Screen [17] VRA Knob
[3] SWF 2 Position Switch [18] VRB Knob
[4] SWE 3 position switch [19] Power Button
[5] SWB 3 Position Switch with Self-return [20] SWD 3 Position Switch with Self-return
[6] VRD Knob [21] SWH 3 Position Switch with Self-return
[7] TR1 Trim [22] SWG 3 Position Switch with Self-return
[8] SWA Button [23] VRE Knob
[9] SWJ Button [24] TR2 Trim
[10] Left Gimbal [25] SWC Button
[11] SWI Button [26] Transmitter Status Indicator
[12] VRF Knob [27] Lanyard Eye
[13] TR3 Trim [28] SWL Button
[14] TR5 Trim [29] VRG Knob
[15] Speaker [30] Right Gimbal
