7
❏

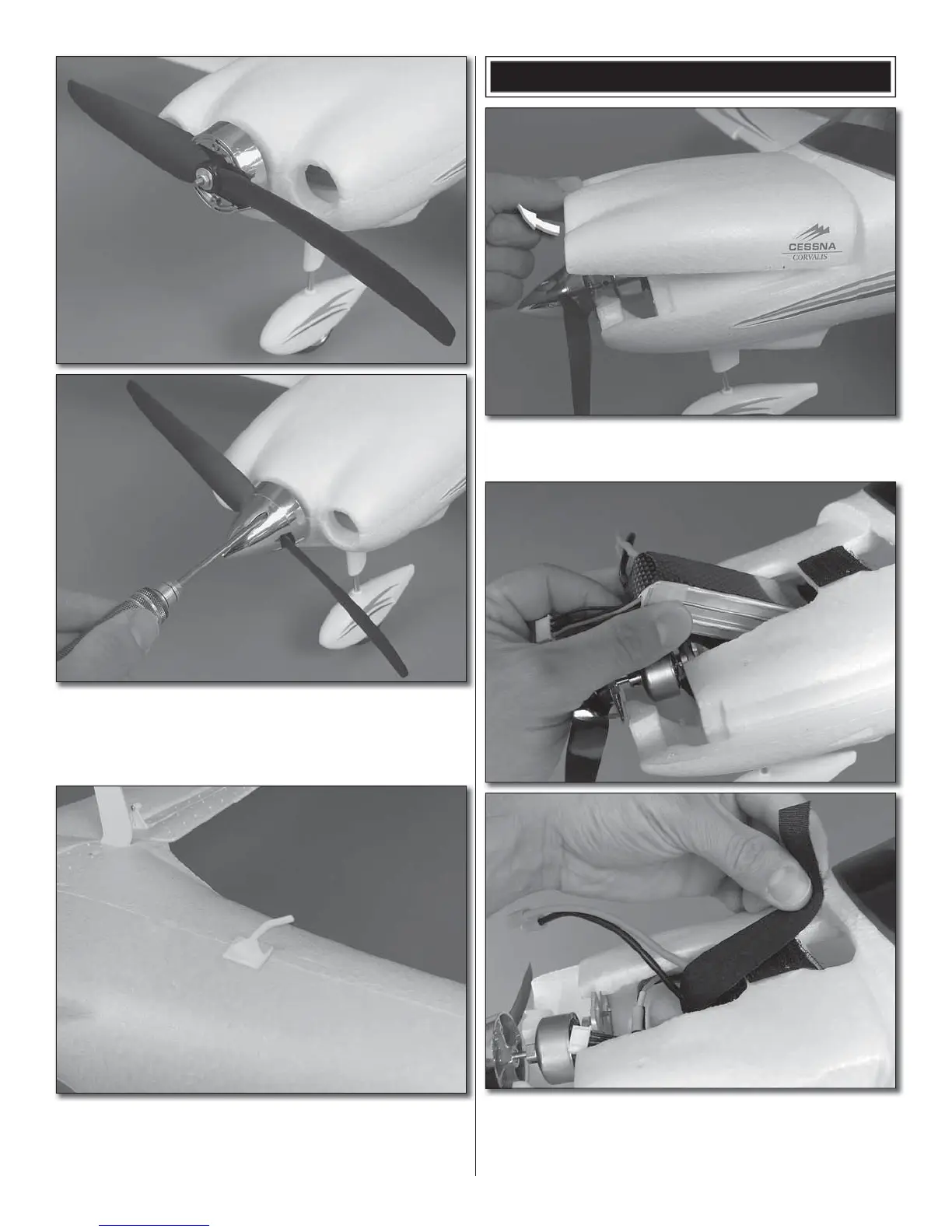

13. Remove the spinner cone by unscrewing the two
screws that hold it to the spinner backplate. Install the
propeller followed by the prop washer and then the prop nut.
Thoroughly tighten the prop nut. Reinstall the spinner cone.
❏
14. Install the antenna onto the underside of the fuselage.
Apply a couple drops of glue to the base of the antenna
before fi tting it in place. CA, epoxy, white glue, hot glue, or
any other household glue would be acceptable.
PREPARE FOR FLIGHT
❏
1. Remove the cowl top by grasping it through one of the
front cooling holes and lifting up.
❏
2. With your battery fully charged, slide it into the battery
compartment as far as it will go. Secure the battery with the
hook and loop strap attached to the battery compartment.
Do not yet plug the battery into the ESC!
